Circuit Protection | SKU: HDA36100

HDA36100 | Square D | Electrical & Wiring

Name: HDA36100
Brand: Square D
SKU: SCH-HDA36100
Price: 1435.70 USD
Availability: InStock

Molded Case Circuit Breaker

$1,435.70 $2,928.79

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

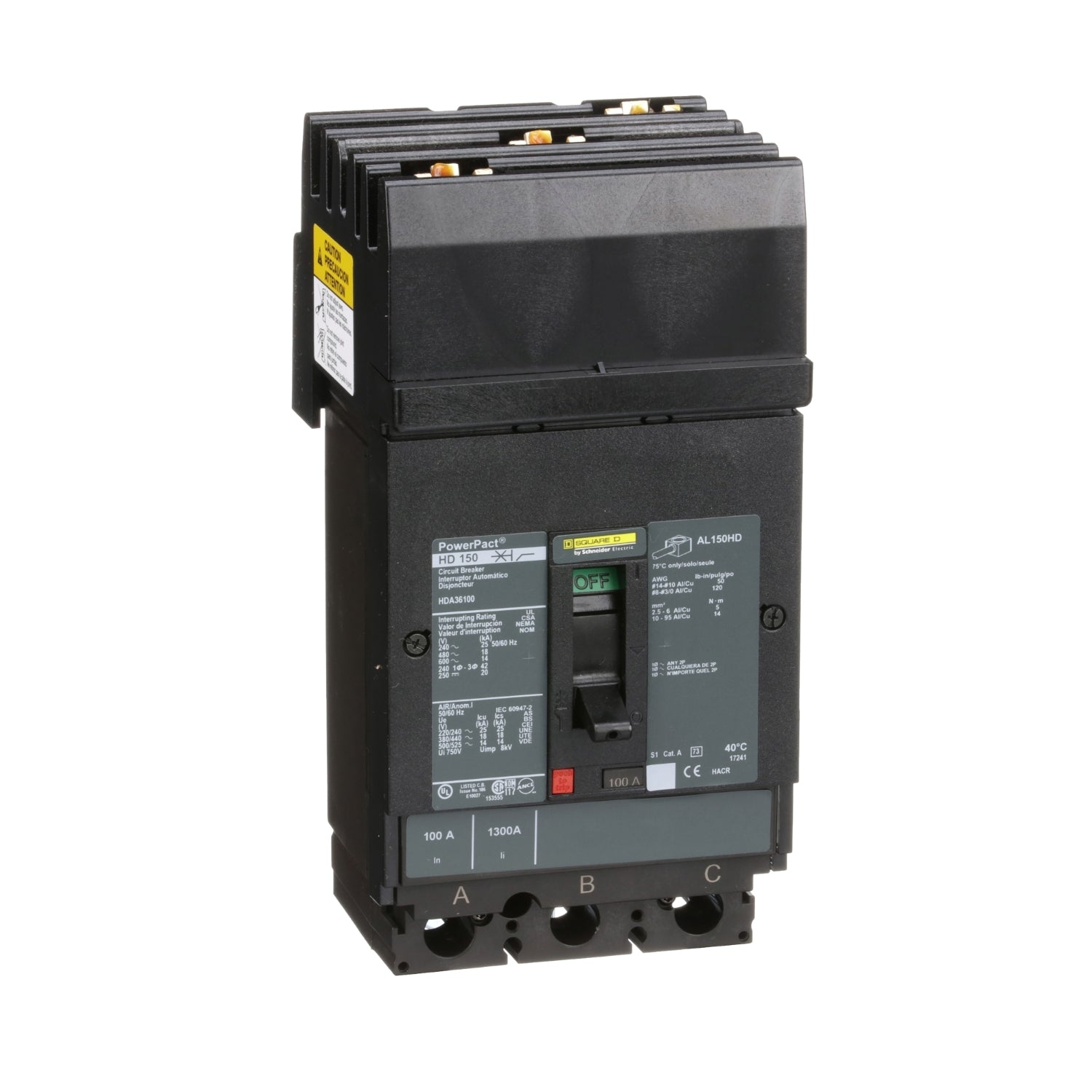

The HDA36100 is a Schneider Electric PowerPacT H circuit breaker (100A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC).

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker.

Product Specifications

Name	Value
Ambient temperature	-13°F to 158°F
Country of origin	MX
Data Sheet	Download
Height	6.4 in
Length	3.4 in
Number of poles	3-Pole
Product category	Electrical & Wiring
Product subcategory	Circuit Protection
Series	Square D
Short desc	Molded Case Circuit Breaker
Supplier part number	HDA36100
Voltage	690 VAC
Web eligible	Y
Width	4.09 in

Features and Benefits

{'Features_and_Benefits_1': 'Available in 2 or 3 pole design', 'Features_and_Benefits_2': 'Standard 80% or 100% rating', 'Features_and_Benefits_3': 'Available in Unit mount, I-line or Drawout constructions', 'Features_and_Benefits_4': 'A wide range of accessories, auxiliaries, and lug connections available', 'Features_and_Benefits_5': 'UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked'}
