Contactors | SKU: HDA261002

HDA261002 | Square D | Relays & Contactors

Name: HDA261002
Brand: Square D
SKU: SCH-HDA261002
Price: 1147.72 USD
Availability: InStock

Molded Case Crct Brkr 600V

$1,147.72 $2,341.30

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

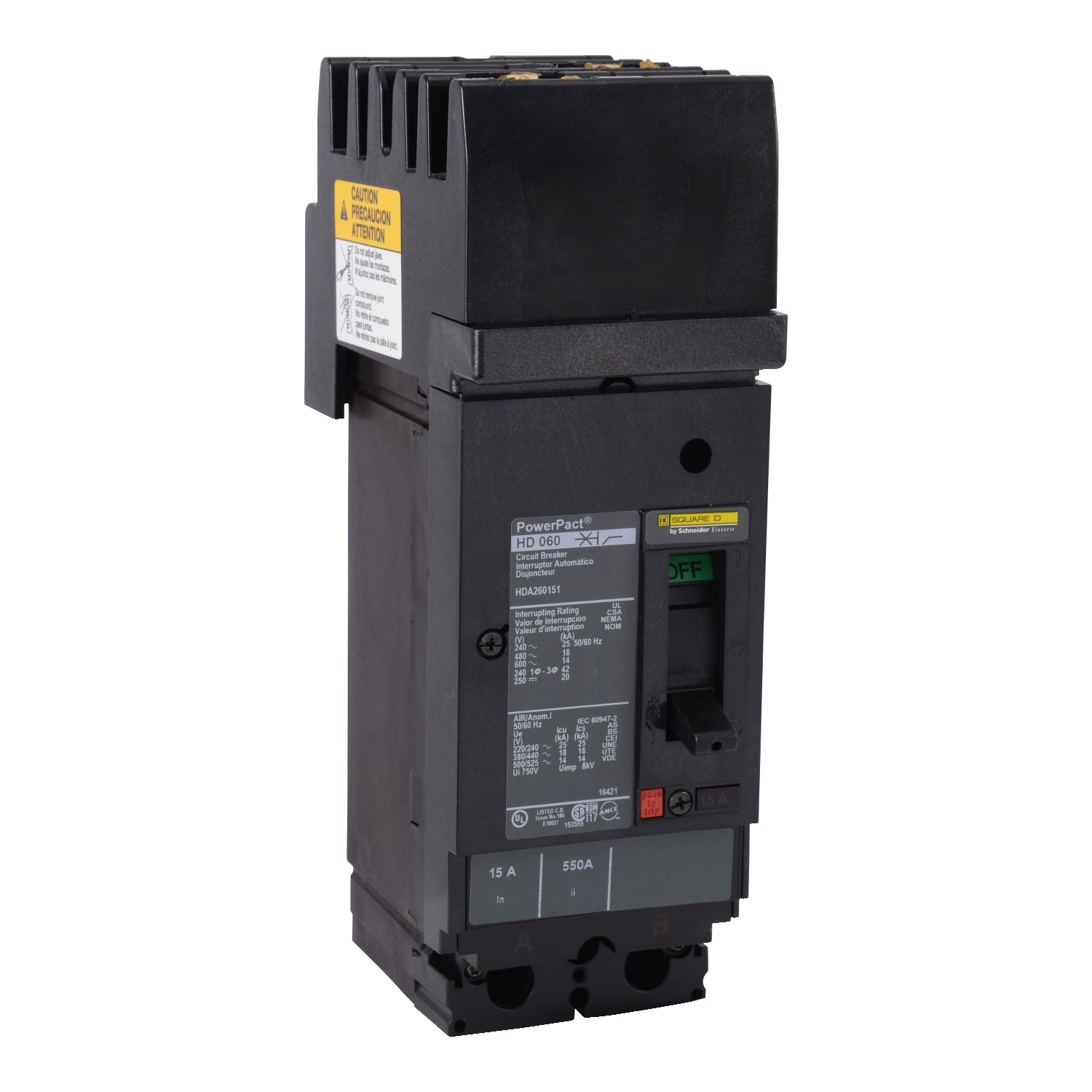

The HDA261002 is a Schneider Electric PowerPacT H circuit breaker (100A, 2 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, AC).

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker.

Product Specifications

Name	Value
Ambient temperature	-13°F to 158°F
Country of origin	MX
Data Sheet	Download
Height	6.4 in
Length	3.4 in
Number of poles	2-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Molded Case Crct Brkr 600V
Supplier part number	HDA261002
Web eligible	Y
Width	4.09 in

Features and Benefits

{'Features_and_Benefits_1': 'Available in 2 or 3 pole design', 'Features_and_Benefits_2': 'Standard 80% or 100% rating', 'Features_and_Benefits_3': 'Available in Unit mount, I-line or Drawout constructions', 'Features_and_Benefits_4': 'A wide range of accessories, auxiliaries, and lug connections available', 'Features_and_Benefits_5': 'UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked'}
