Current Transducers  | SKU: H971

H971 | Veris Industries | Power Monitoring & Protection

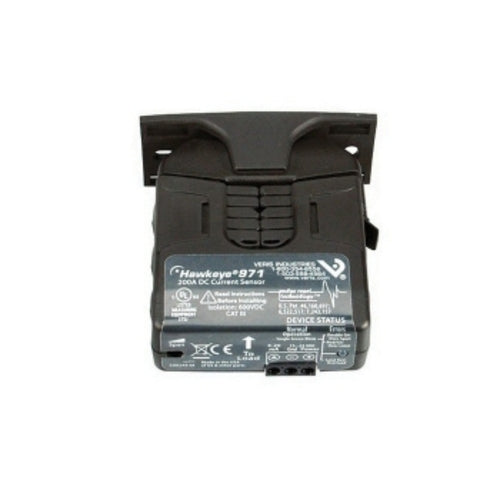

Veris, Hawkeye 0 to 200 A DC Input, 4 to 20 mA Bi-Directional Output, Direct Current Transducer, Split-Core, 1.1 x 0.8 Inch
$365.21 $621.92
Shipping calculated at checkout.

H971 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Hawkeye DC Transducers Provide Accurate Load Level Monitoring of DC Loads. The H971 Use Pulse Reset Technology with Field Proven Circuitry to Provide a Superior Solution for DC Applications with Minimal Risk of Permanent Magnetization, Providing Longer Life and Better Accuracy. The H971 have 4 to 20 mA Output Only. The H971 Also Offers Bi-Directional Sensing Capability and a User. Adjustable Span to Allow Greater Application Flexibility.

Product Specifications

Name Value
Amp range 0-200 A
Category Current Transducers
Data Sheet Download
Output signal 4-20 mA
Product category Power Monitoring & Protection
Product subcategory Current Transducers
Series DC Series
Short desc Veris, Hawkeye 0 to 200 A DC Input, 4 to 20 mA Bi-Directional Output, Direct Current Transducer, Split-Core, 1.1 x 0.8 Inch
Supplier part number H971
Window size 0.8 Inch

Features and Benefits

HOA - Bi-Directional Model, User Adjustable Span from + or - 20 to + or - 200 A | Status LED Ensures Proper Wiring | UL, CE Certification | Patented Pulse Reset Technology Significantly Increases Accuracy, Sensor is Not Affected by Stray Magnetic Fields, Minimize Magnetization from Over Current Faults | Flexibility - Bracket can be Installed in Three Different Configurations | Retrofit - Self-Gripping Iris for Easy Installation
