Current Switches | SKU: H923

H923 | Veris Industries | Power Monitoring & Protection

Name: H923
Brand: Veris Industries
SKU: SCH-H923
Price: 79.57 USD
Availability: InStock

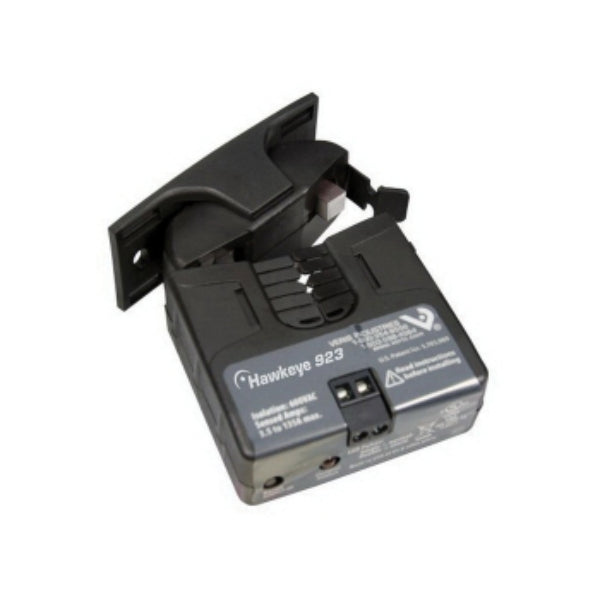

Veris, Hawkeye Current Transducer, 0 to 20/100/150 A Input, 0 to 10 VDC Output Analog, Split-Core, 1.1 x 0.8 Inch

$79.57 $169.07

Shipping calculated at checkout.

Available to order

Lead time: 11 days

FREE SHIPPING

Description

The Hawkeye 923 provide accurate load trending information with a proportional 0 to 10 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.

Product Specifications

Name	Value
Contact form	0-10 VDC Output
Data Sheet	Download
Product category	Power Monitoring & Protection
Product subcategory	Current Switches
Sensing range	0-20/100/150 A
Series	Veris
Short desc	Veris, Hawkeye Current Transducer, 0 to 20/100/150 A Input, 0 to 10 VDC Output Analog, Split-Core, 1.1 x 0.8 Inch
Supplier part number	H923
Type	Split-Core Current Transducer
Window size	0.8 in

Features and Benefits

{'Features_and_Benefits_1': 'Self-Powered Analog Current Sensor Simplifies Installation', 'Features_and_Benefits_2': 'No External Power Required for Sensor', 'Features_and_Benefits_3': 'Self-Gripping, Split-Core Design for Fast Retrofit Installation, No Need to Remove Conductor, Factory Calibrated Ranges for Increased Flexibility and Resolution', 'Features_and_Benefits_4': 'No Jumpers on Unit, Reduces Installation Error', 'Features_and_Benefits_5': 'Less to Stock - One Device Does the Work of Three', 'Features_and_Benefits_6': 'Removable Mounting Bracket for Installation Flexibility', 'Features_and_Benefits_7': 'Added Flexibility - Bracket on H923 can be Installed in Three Different Configurations', 'Features_and_Benefits_8': '100 Percentage Solid-State No Moving Parts to Fail, Induced from Monitored Conductor Sensor Power', 'Features_and_Benefits_9': 'Certification: UL, CE', 'Features_and_Benefits_10': 'Warnings: Prop 65'}
