Current Transducers | SKU: H921

H921 | Veris Industries | Power Monitoring & Protection

Name: H921
Brand: Veris Industries
SKU: SCH-H921
Price: 87.20 USD
Availability: InStock

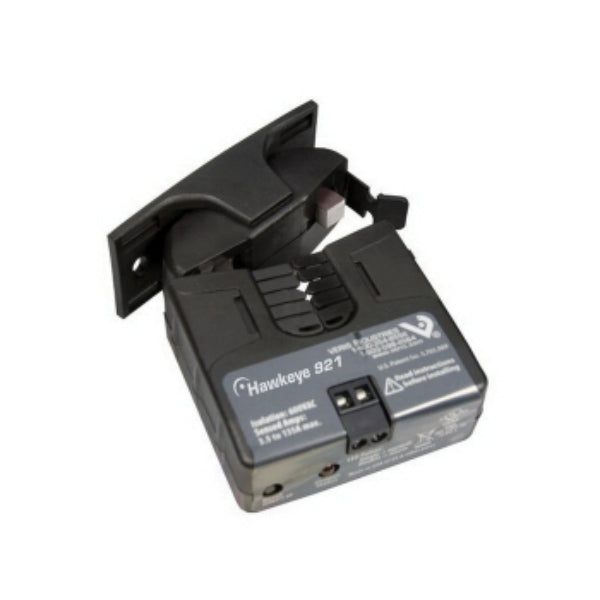

Veris, Hawkeye 0 to 30/60/120 A Input, 4 to 20 mA DC Output, Analog Current Transducer, Split-Core, 1.1 x 0.8 Inch

$87.20 $185.31

Shipping calculated at checkout.

Available to order

Lead time: 15+ days

FREE SHIPPING

Description

The Hawkeye H921 Provide Accurate Load Trending Information with a Proportional 4 to 20 mA Output Signal. Preset Slide Switches Provide Easy Field Setup of Sensed Amperage Range with No Need for Jumpers.

Product Specifications

Name	Value
Amp range	0-30/60/120 A
Data Sheet	Download
Output signal	4-20 mA
Product category	Power Monitoring & Protection
Product subcategory	Current Transducers
Series	HX21 Series
Short desc	Veris, Hawkeye 0 to 30/60/120 A Input, 4 to 20 mA DC Output, Analog Current Transducer, Split-Core, 1.1 x 0.8 Inch
Supplier part number	H921
Window size	0.8 Inch

Features and Benefits

Removable Mounting Bracket for Installation Flexibility. Added Flexibility - Bracket on H921 can be Installed in Three Different Configurations. 100 Percentage Solid-State No Moving Parts to Fail, 30 mA at 12 to 30 VDC Sensor Power | Three Field-Selectable Ranges Per Unit, Fewer Versions to Choose from, Stock, and Install | Factory Calibrated Switch-Selectable Ranges for High Resolution and Installation Ease | UL, CE Certification | Self-Gripping, Split-Core Design for Fast Retrofit Installation, No Need to Remove Conductor | Power the Sensor, and Receive the Signal with Only 2-Wires, Lower Cabling and Commissioning Costs than with Traditional 3-Wire Sensors
