Power Monitoring & Protection  | SKU: H540

H540

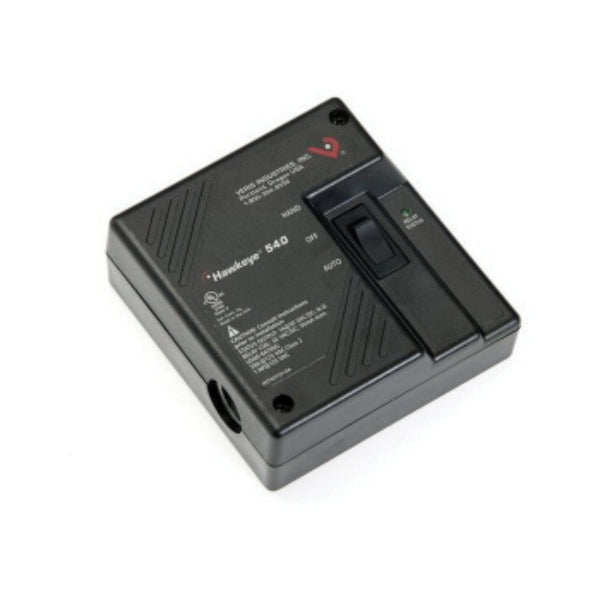

Veris, Hawkeye Current Monitor Relay, 0.25 to 15 A, Fixed Trip Combination Switching, SPST, Normally Open/Normally Closed, Field-Selectable H540
$93.81 $181.32
Shipping calculated at checkout.

H540 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
Shipping calculated at checkout

Description

The Hawkeye 5xx series combines an industrial grade load switching relay, current status switch and hand-off-auto (HOA) switch in an easy to install remote enclosure making the series ideal for monitoring, directly controlling and troubleshooting the control wiring of fractional horsepower motors. The relay, current sensor and HOA switch are combined in a series circuit. Once a 500 is wired in series between the power source and motor, all three components are installed. The housing provides physical separation and multiple wiring exits to isolate control and high voltage wiring. A 500 can be mounted directly on 2 or 4 gang junction boxes, nippled to a field enclosure, or stand alone.

Product Specifications

Name Value
Category Current Switches
Contact form SPST, Field-Selectable N.O/N.C
Data Sheet Download
Display name 1 Data Sheet
Features and benefits Certification: UL | Relay Power LED | Induced from Monitored Conductor Sensor Power | All Models Rated up to 1 HP at 120 VAC One Product for All Fractional HP Motor Control and Status Applications | SPST Relay is Field-Selectable for NO or NC Operation | HOA Provides True Relay Control Ideal for Troubleshooting Control Wiring | Combines Status Sensor, Command Relay and HOA Switch in a Single Series Circuit One Line Connection for Three Devices | Warnings: Prop 65 | Gang Box Mounting - Mounts Directly Onto Gang Box, Flush to Existing Enclosures and Standalone | Remote Mounted Current Status Sensor and Command Relay with HOA Switch
P21 delete flag false
Product category Power Monitoring & Protection
Product subcategory Current Switches
Restricted class id NULL
Restricted item false
Sensing range 0.25-15 Amp
Series Veris
Short desc Veris, Hawkeye Current Monitor Relay, 0.25 to 15 A, Fixed Trip Combination Switching, SPST, Normally Open/Normally Closed, Field-Selectable H540
Supplier part number H540
Ultra store sync us Yes
Vendor active Y

Features and Benefits

Certification: UL | Relay Power LED | Induced from Monitored Conductor Sensor Power | All Models Rated up to 1 HP at 120 VAC One Product for All Fractional HP Motor Control and Status Applications | SPST Relay is Field-Selectable for NO or NC Operation | HOA Provides True Relay Control Ideal for Troubleshooting Control Wiring | Combines Status Sensor, Command Relay and HOA Switch in a Single Series Circuit One Line Connection for Three Devices | Warnings: Prop 65 | Gang Box Mounting - Mounts Directly Onto Gang Box, Flush to Existing Enclosures and Standalone | Remote Mounted Current Status Sensor and Command Relay with HOA Switch
