Contactors | SKU: H362AWC

H362AWC | Square D | Relays & Contactors

Name: H362AWC
Brand: Square D
SKU: SCH-H362AWC
Price: 2985.40 USD
Availability: InStock

Switch Fusible 60a Recept

$2,985.40 $6,090.15

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

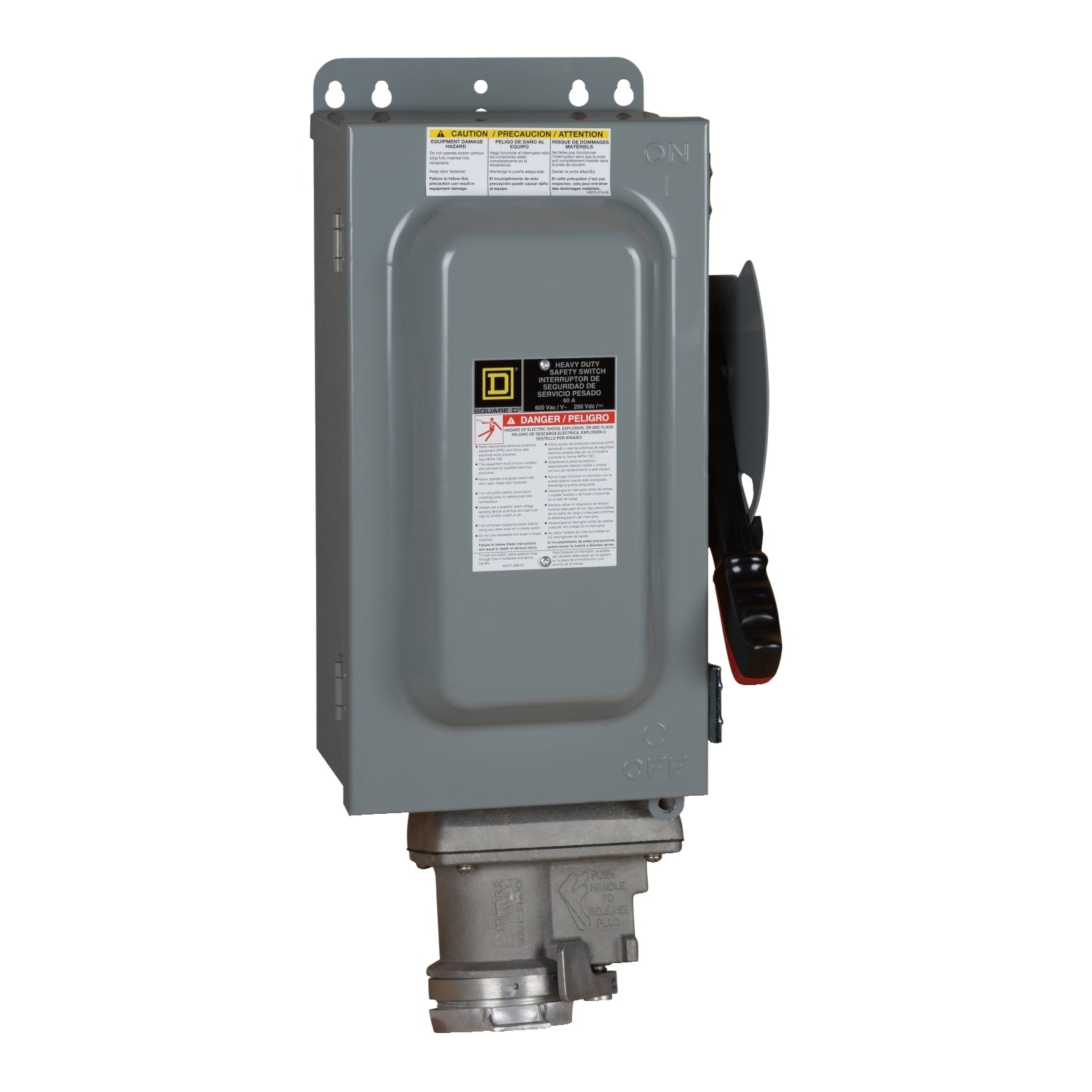

The H362AWC is a Schneider Electric safety switch (heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite).

They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase and 50 HP at 600 VAC three phase. This device has enclosure rating of NEMA 12K.

Product Specifications

Name	Value
Country of origin	US
Current rating	60 A
Data Sheet	Download
Height	16.5 in
Hp rating	15 HP
Length	7 in
Number of poles	3-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Switch Fusible 60a Recept
Supplier part number	H362AWC
Voltage	600 VAC
Web eligible	Y
Width	10.5 in

Features and Benefits

{'Features_and_Benefits_1': 'Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency', 'Features_and_Benefits_2': 'Designed to satisfy individual requirements for all customers', 'Features_and_Benefits_3': 'All feature a quick-make, quick-break operating mechanism, a dual cover interlock', 'Features_and_Benefits_4': 'Designed to have a mechanical endurance three times greater than NEMA standards', 'Features_and_Benefits_5': 'UL listed'}
