Contactors | SKU: H225N

H225N | Square D | Relays & Contactors

Name: H225N
Brand: Square D
SKU: SCH-H225N
Price: 2596.47 USD
Availability: InStock

Sw Fusible Hd 240V 400a 2p

$2,596.47 $5,296.76

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

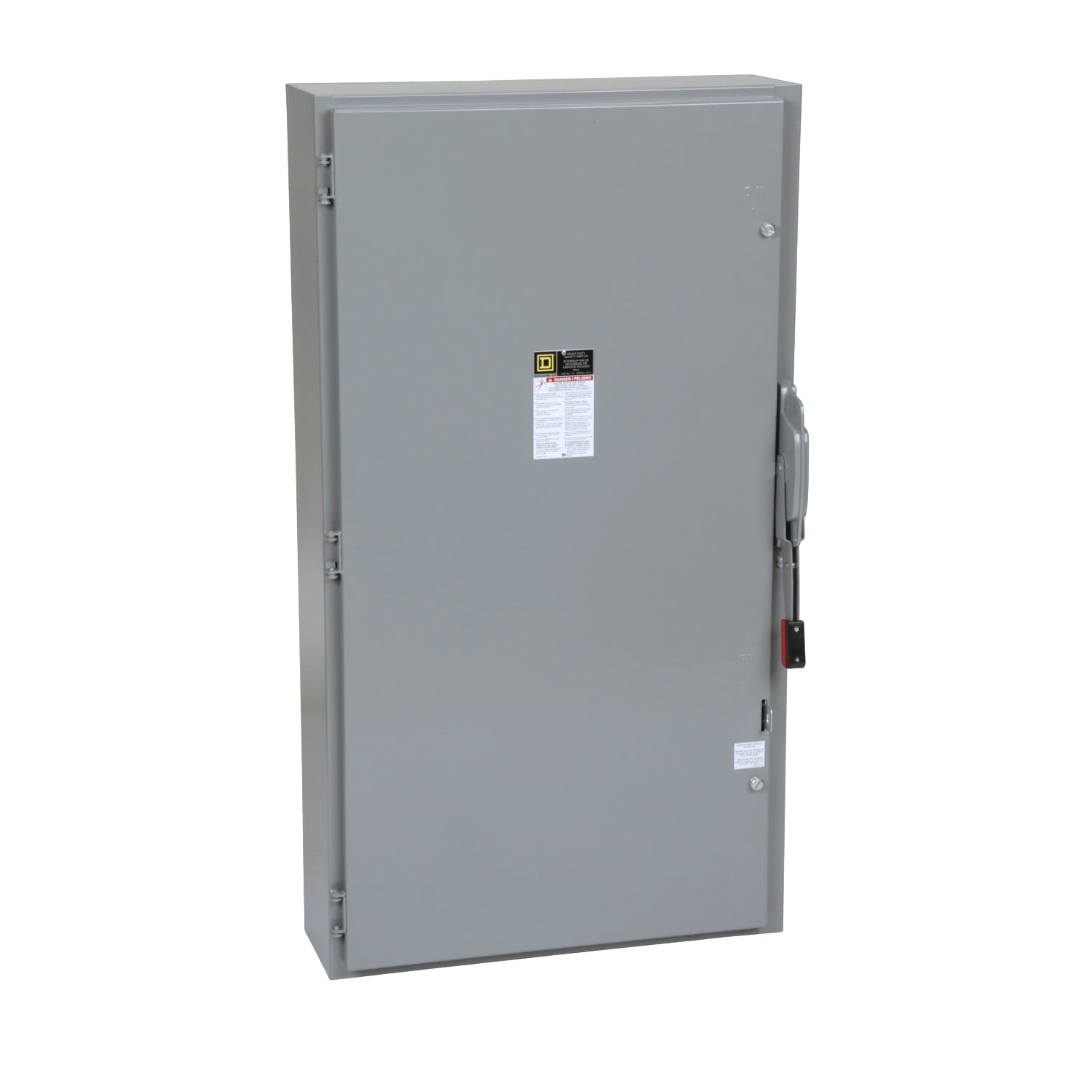

The H225N is a Schneider Electric safety switch (heavy duty, fusible, 400A, 2 pole, 125hp, 240VAC, 250VDC, neutral factory installed, NEMA1).

Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise.

Product Specifications

Name	Value
Data Sheet	Download
Height	50.25 in
Length	10.13 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Sw Fusible Hd 240V 400a 2p
Supplier part number	H225N
Web eligible	Y
Width	27.63 in

Features and Benefits

{'Features_and_Benefits_1': 'Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency', 'Features_and_Benefits_2': 'Designed to satisfy individual requirements for all customers', 'Features_and_Benefits_3': 'All feature a quick-make, quick-break operating mechanism, a dual cover interlock', 'Features_and_Benefits_4': 'Designed to have a mechanical endurance three times greater than NEMA standards', 'Features_and_Benefits_5': 'UL listed'}
