Circuit Protection | SKU: GV2P01

GV2P01 | Schneider Electric | Electrical & Wiring

Name: GV2P01
Brand: Schneider Electric
SKU: SCH-GV2P01
Price: 226.14 USD
Availability: InStock

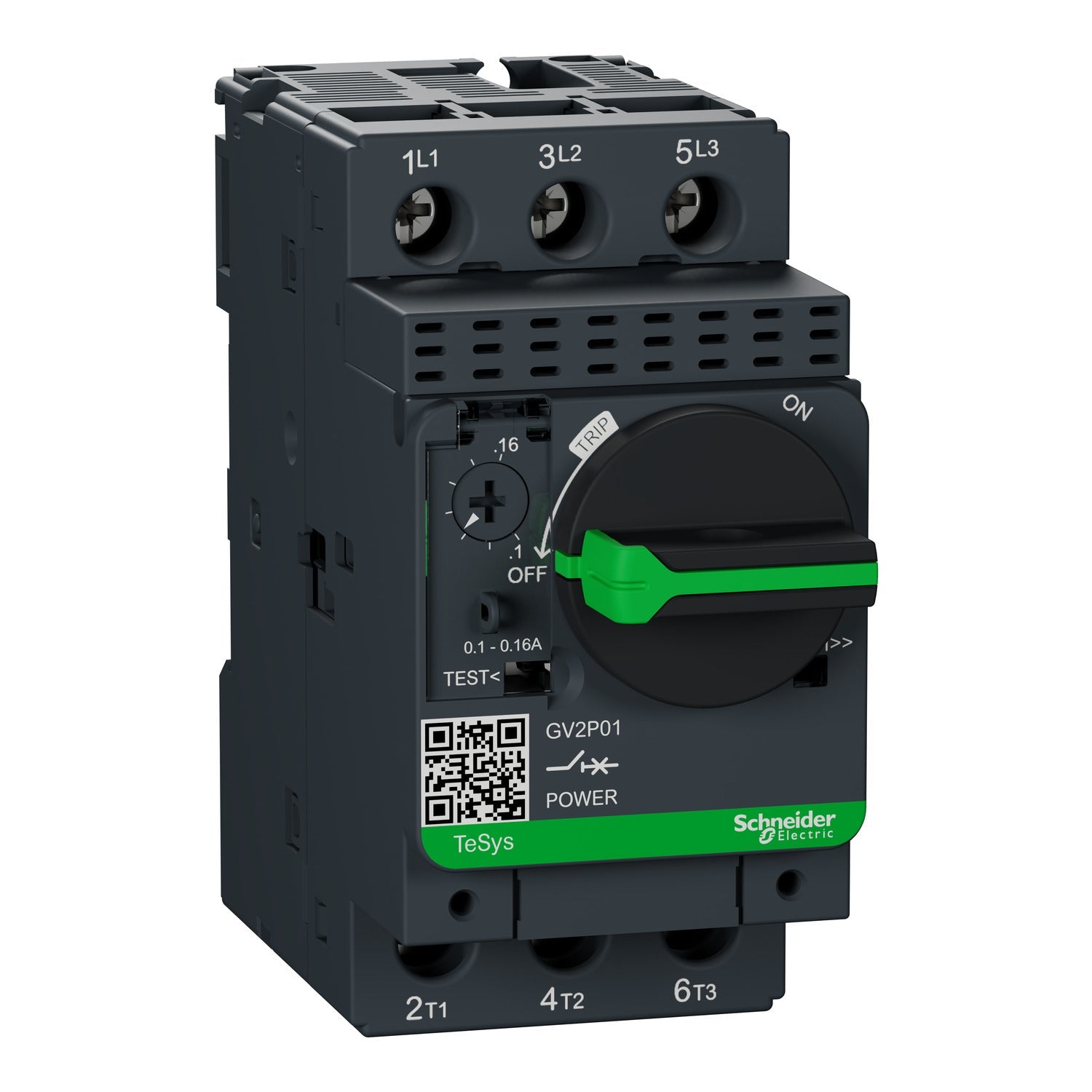

Motor Circuit Breaker, TeSys GV2, 0.1 to 0.16 A, 3 Pole, Thermal Magnetic, Screw Clamp Terminals

$226.14 $461.33

Shipping calculated at checkout.

Available to order

Lead time: 11 days

FREE SHIPPING

Description

TeSys GV motor circuit breaker, 3 poles (3P), 0.16 A/690 V, for 3-phase motor applications less than 0.06 kW at 400 V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16 A, magnetic tripping at 9xIn, high breaking capacity Icu 100 kA at 400 V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACH).

Product Specifications

Name	Value
Ambient temperature	-4°F to 140°F
Country of origin	US
Current rating	0.16 A
Data Sheet	Download
Height	0.0
Length	0.0
Mounting type	DIN Rail
Number of poles	3-Pole
Product category	Electrical & Wiring
Product subcategory	Circuit Protection
Series	TeSys Deca GV2
Short desc	Motor Circuit Breaker, TeSys GV2, 0.1 to 0.16 A, 3 Pole, Thermal Magnetic, Screw Clamp Terminals
Supplier part number	GV2P01
Type	Motor Circuit Breaker
Voltage	690 VAC 50/60 Hz IEC 60947-2
Web eligible	Y
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Digital Customer Experience for Technical Documents', 'Features_and_Benefits_2': 'Sturdy and Long-Lasting Power Connection with EverLink Terminals', 'Features_and_Benefits_3': 'Easier to Install and Operate with Multi-Standard Screws', 'Features_and_Benefits_4': 'Wide Range of GVs: Magnetic, Thermal Magnetic, Different Sizes (GV2,GV3,GV4)', 'Features_and_Benefits_5': 'Push-Button Rotary Handle', 'Features_and_Benefits_6': 'New Modern Look and Feel of All Machines'}
