Contactors | SKU: GS2GU3N

GS2GU3N | Square D | Relays & Contactors

Name: GS2GU3N
Brand: Square D
SKU: SCH-GS2GU3N
Price: 303.83 USD
Availability: InStock

Disc Sw Fusible 600V 60a 3p

$303.83 $619.80

Shipping calculated at checkout.

Available to order

Lead time: 12 days

FREE SHIPPING

Description

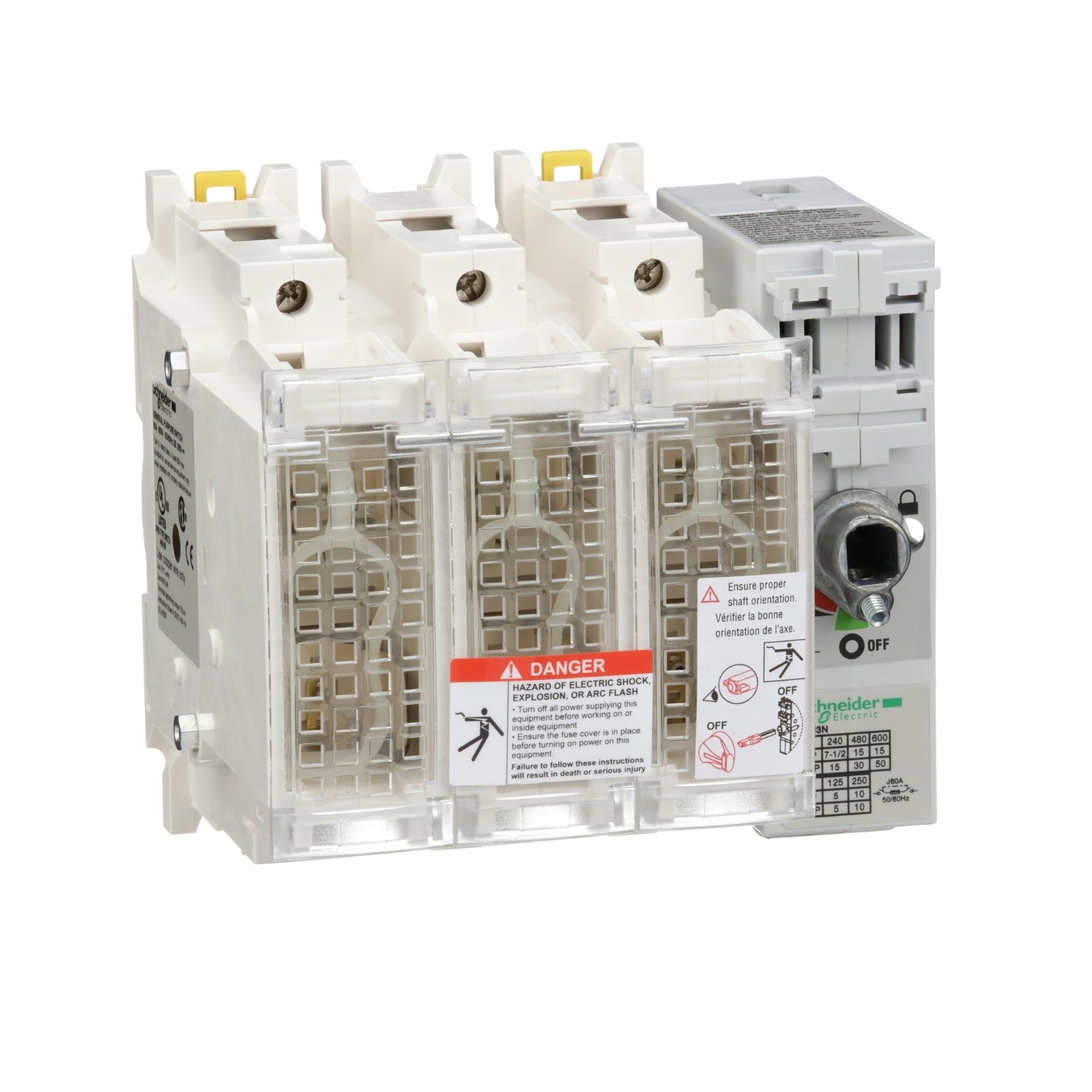

The GS2GU3N is a Schneider Electric TeSys GS (disconnect switch, fuse, 3 P, 600 V, UL 60 A, Type J fuse).

TeSys GS fuse switch-disconnector, 3 poles (3P), 60A/750V, to be used with class J fuse links up to 60A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately).

Product Specifications

Name	Value
Data Sheet	Download
Height	5.4 in
Length	4.8 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Disc Sw Fusible 600V 60a 3p
Supplier part number	GS2GU3N
Web eligible	Y
Width	5.9 in

Features and Benefits

{'Features_and_Benefits_1': 'Equipped with an external front side mounting operating handle', 'Features_and_Benefits_2': 'Lockable with door interlock', 'Features_and_Benefits_3': 'To be used with class J fuse links', 'Features_and_Benefits_4': 'High short circuit performance up to 100 KA', 'Features_and_Benefits_5': 'Robust and compact handles'}
