Contactors | SKU: GS1DU3

GS1DU3 | Square D | Relays & Contactors

Name: GS1DU3
Brand: Square D
SKU: SCH-GS1DU3
Price: 203.04 USD
Availability: InStock

Disconnect Switch

$203.04 $414.21

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

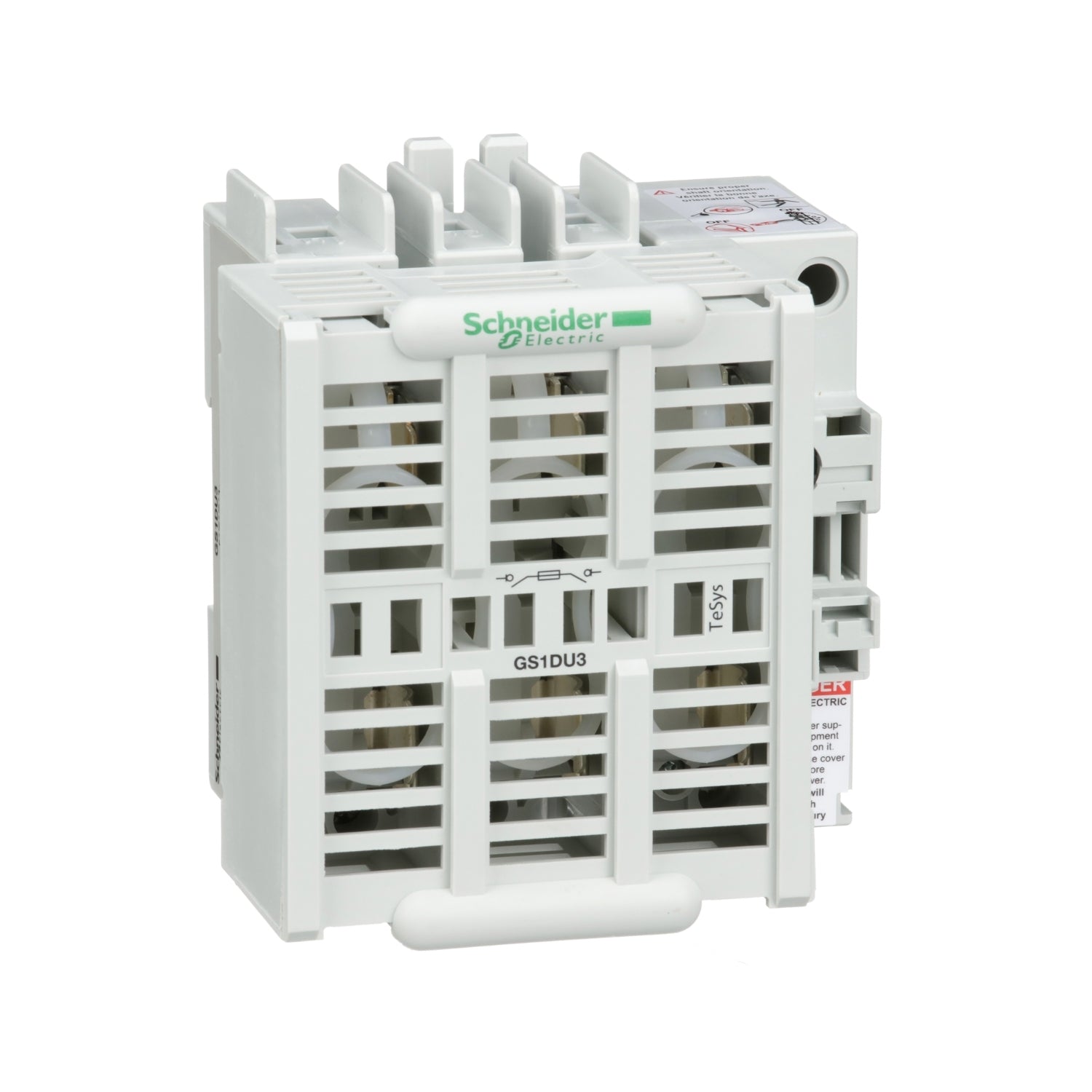

The GS1DU3 is a Schneider Electric TeSys GS (disconnect switch, fuse, 3 P, 600 V, UL 30 A, Type J fuse).

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately).

Product Specifications

Name	Value
Data Sheet	Download
Height	4.6 in
Length	3.9 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Disconnect Switch
Supplier part number	GS1DU3
Width	4.1 in

Features and Benefits

{'Features_and_Benefits_1': 'Equipped with an external front side mounting operating handle', 'Features_and_Benefits_2': 'Lockable with door interlock', 'Features_and_Benefits_3': 'To be used with class J fuse links', 'Features_and_Benefits_4': 'High short circuit performance up to 100 KA', 'Features_and_Benefits_5': 'Robust and compact handles'}
