9070EL2D9 | Square D | Relays & Contactors

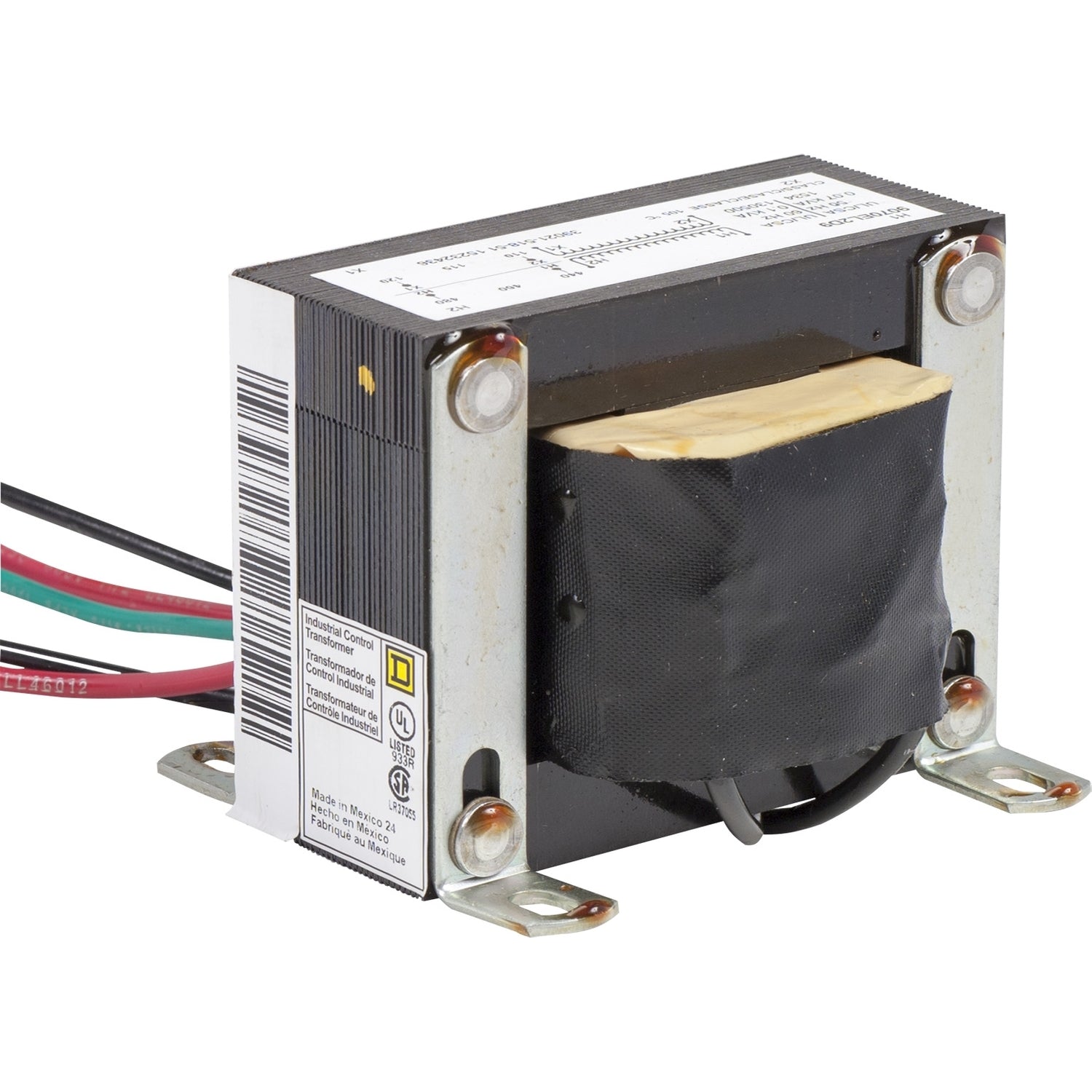

The 9070EL2D9 is a Schneider Electric Type EL transformer (industrial control, 100VA, 1 phase, 480V primary, 120V secondary, 55C rise).

The Square D™ by Schneider Electric Type EL Industrial Control Transformers is a single phase 150VA transformer designed for 240VAC primary with a 120VAC secondary. These are only available for single voltage primary and single voltage secondary applications. This Industrial Control transformer, is 1 phase, with a rated voltage of 100 VA. This transformer, has primary voltages of 440/460/480 V and secondary voltages of 120/115/110 V. This product has a temperature rise of 55 °C and a insulated temperautre of 105 °C.
