Contactors | SKU: 9066RA1

9066RA1 | Square D | Relays & Contactors

Name: 9066RA1
Brand: Square D
SKU: SCH-9066RA1
Price: 56.94 USD
Availability: InStock

External Reset Mechanism, OEM Kit, with Reset Button and One Rod, NEMA 1 and 12

$56.94 $116.16

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

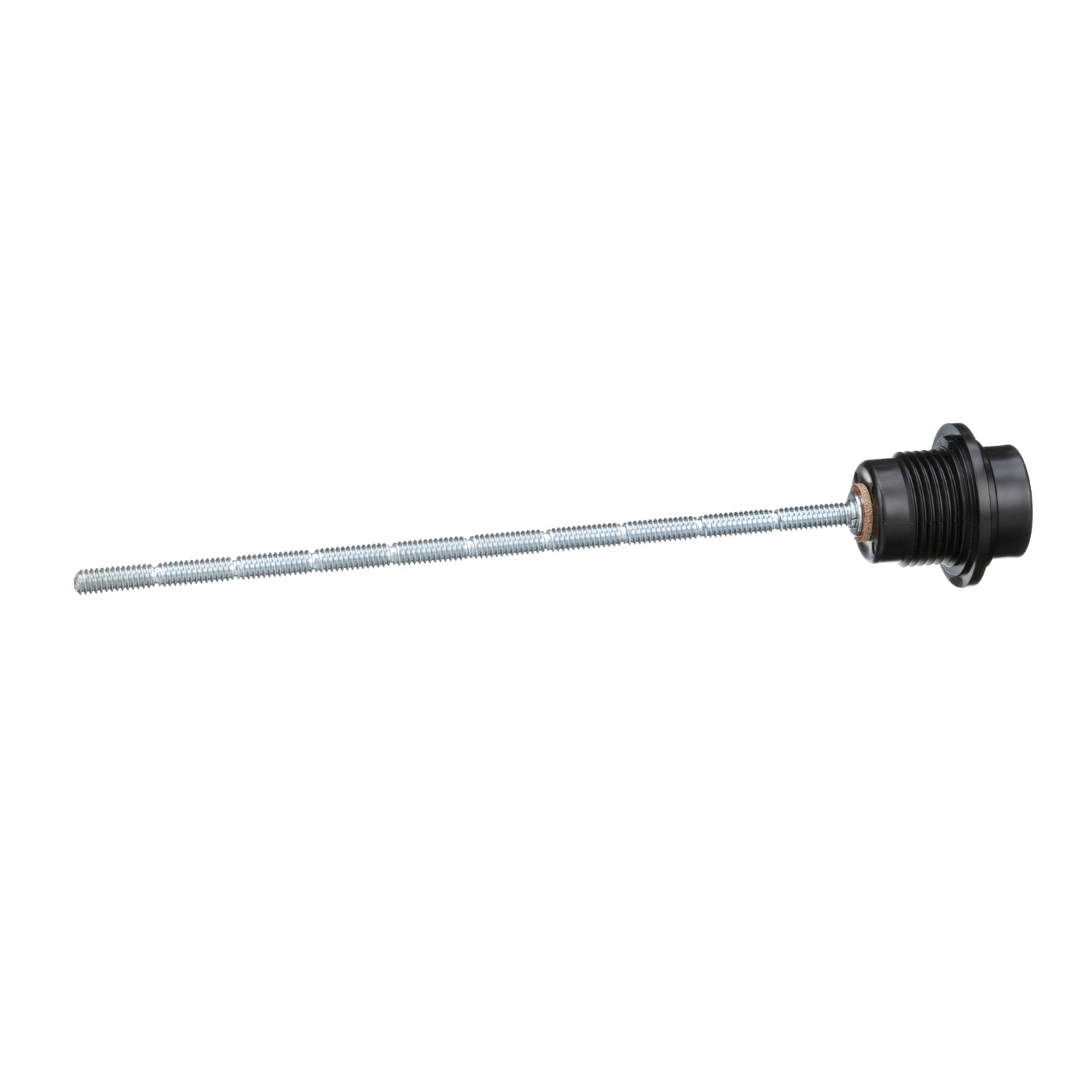

The 9066RA1 is a Schneider Electric OEM kit external reset mechanism (with reset button and one rod, NEMA 1 and 12).

External reset mechanism allows the reset of the Type S overload relay without open the enclosure. The grey push button operator is mounted into the cover of the NEMA 1 or 12 enclosure. The push button is marked RESET. The kit contains one threaded reset rod that is grooved at intervals of 0.75 inches. The grooves allows the 9 inch long rod to be cut to the approximate length required without damaging the threads.

Product Specifications

Name	Value
Application	Motor Starter Accessories
Country of origin	MX
Data Sheet	Download
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	External Reset Mechanism, OEM Kit, with Reset Button and One Rod, NEMA 1 and 12
Supplier part number	9066RA1
Web eligible	Y

Features and Benefits

{'Features_and_Benefits_1': 'Comes standard installed both non-reversing and reversing and combination and multispeed starters', 'Features_and_Benefits_2': 'Simple Installation', 'Features_and_Benefits_3': 'Field interchangeable thermal units for replacement motor installations', 'Features_and_Benefits_4': 'Available as direct mount or separate mount', 'Features_and_Benefits_5': 'Provides thermal protection for the most costly equipment'}
