Enclosures, Panels & Fabrication | SKU: 9001KR9P35LRR

9001KR9P35LRR | Square D | Enclosures, Panels & Fabrication

Name: 9001KR9P35LRR
Brand: Square D
SKU: SCH-9001KR9P35LRR
Price: 247.06 USD
Availability: InStock

Pushbotton Pilot Light 30MM

$247.06 $504.01

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

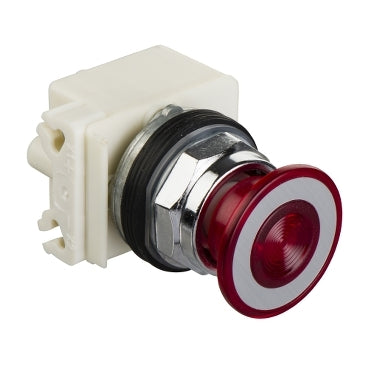

The 9001KR9P35LRR is a Schneider Electric Harmony 9001K illuminated push button head (metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24...28V).

This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions stay put operator and it is supplied with 24V AC/DC and with super bright LED, included. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing.

Product Specifications

Name	Value
Ambient temperature	-40°F to 158°F
Country of origin	MX
Data Sheet	Download
Enclosure nema rating	NEMA 1/2/3/3R/4/12/13
Material	Metal
Product category	Enclosures, Panels & Fabrication
Product subcategory	Pilot Lights
Series	Square D
Short desc	Pushbotton Pilot Light 30MM
Supplier part number	9001KR9P35LRR
Voltage	24 VAC/VDC
Web eligible	Y

Features and Benefits

{'Features_and_Benefits_1': 'Improved security thanks to finger-safe contact blocks and light modules', 'Features_and_Benefits_2': 'Robustness to withstand the harshest environments', 'Features_and_Benefits_3': 'Easy, secure mounting system', 'Features_and_Benefits_4': 'Automatic self-grounding operators without additional wiring', 'Features_and_Benefits_5': 'A large metal set of accessories to customize your product'}
