9001BG214 | Square D | Enclosures, Panels & Fabrication

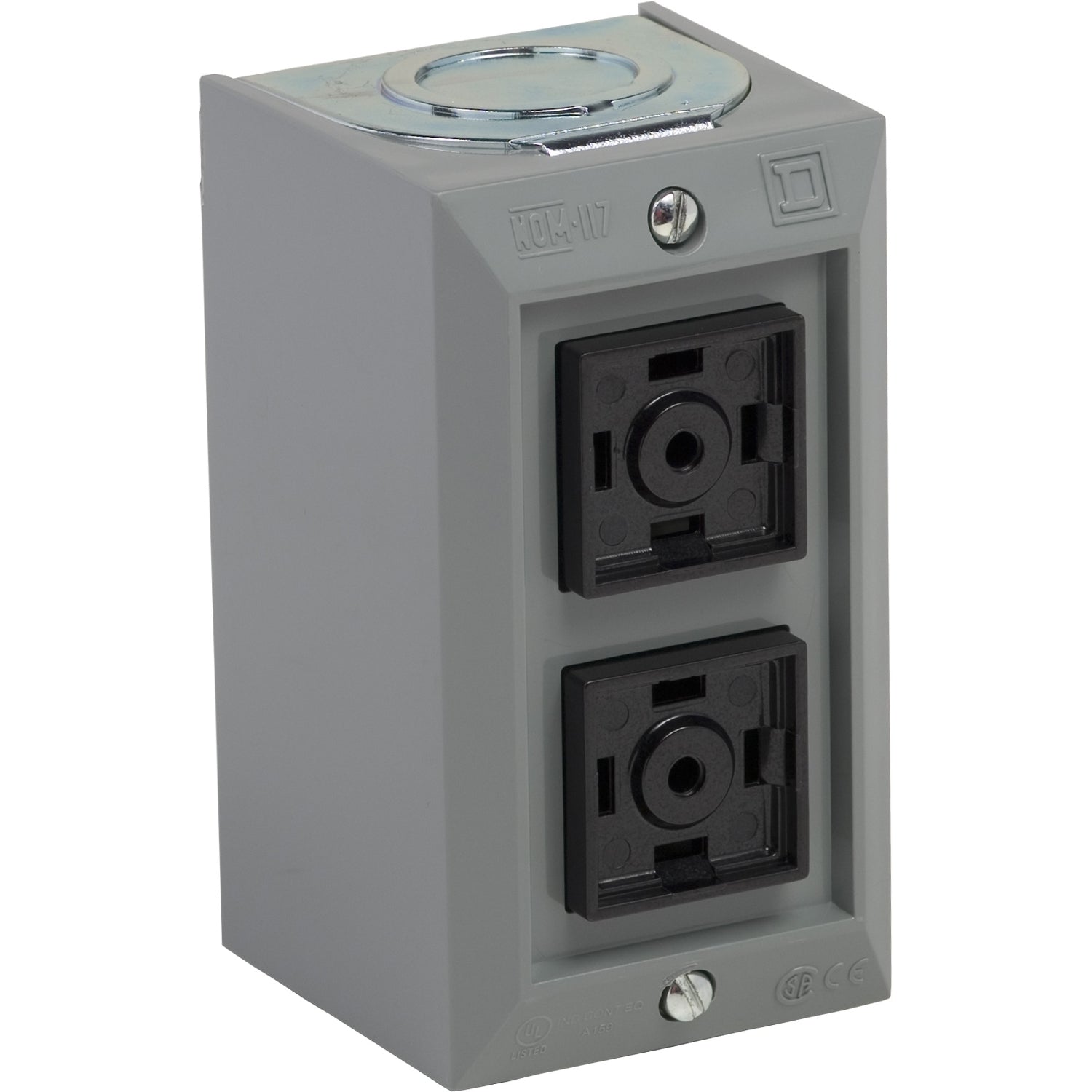

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. Each push button has a normally open and a normally closed contact. Each push button is supplied without a legend insert. The required legend insert must be purchased separately. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35 Percentage power factor or 5 A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified. "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."
