Control Valves & Actuators | SKU: 2360-501

2360-501 | Schneider Electric | Control Valves & Actuators

Name: 2360-501
Brand: Schneider Electric
SKU: SCH-2360501
Price: 265.02 USD
Availability: InStock

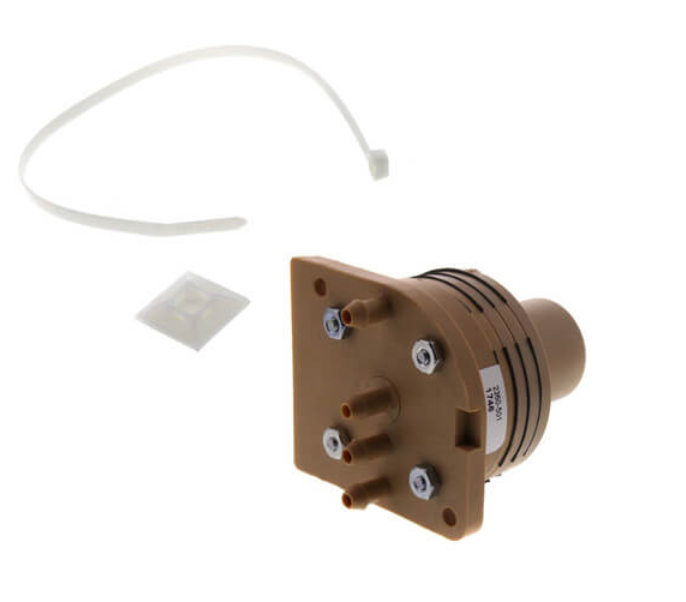

Schneider, Reversing Relay

$265.02 $540.62

Shipping calculated at checkout.

In stock (5 units)

Usually ships next day

FREE SHIPPING

Description

The 2360-501 Reversing Relay is a proportioning device designed for use in pneumatic control systems where the application requires the reversing of a proportional signal from a controlling device. The 2360-501 branch line pressure decreases in direct proportion to an increase in input signal pressure and also amplifies the volume of air available for the final control device, thereby minimizing system lag. The unit is factory adjusted to decrease the branch line pressure from 16 psig to 0 psig as the signal pressure increases from 0 psig to 16 psig. A bias adjustment is provided to retard or advance the output signal if required by a particular application.

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Height	3.23 in
Length	2.99 in
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Series	Schneider Electric
Short desc	Schneider, Reversing Relay
Supplier part number	2360-501
Web eligible	Y
Width	2.05 in

Features and Benefits

{'Features_and_Benefits_1': 'Pneumatic reversing relay', 'Features_and_Benefits_2': 'Branch drops from 16 to 0 psig as input rises from 0 to 16 psig', 'Features_and_Benefits_3': 'Amplifies air volume to reduce system lag', 'Features_and_Benefits_4': 'Bias adjustment to advance or retard the output', 'Features_and_Benefits_5': 'Ports clearly marked M, B and S1', 'Features_and_Benefits_6': 'Mounts on a 22-150 backplate or MCS-S-P socket kit'}
