Control Valves & Actuators | SKU: 2252-501

2252-501 | Schneider Electric | Control Valves & Actuators

Name: 2252-501
Brand: Schneider Electric
SKU: SCH-2252501
Price: 1169.01 USD
Availability: InStock

Schneider

$1,169.01 $2,384.75

Shipping calculated at checkout.

Available to order

Lead time: 3 days

FREE SHIPPING

Description

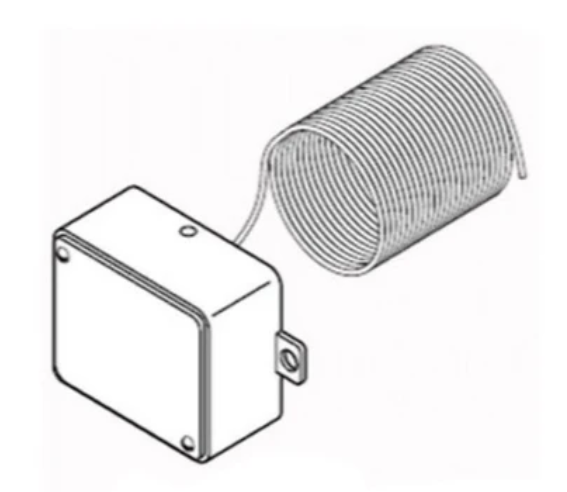

The 2252-501 is a Pneunatic Temperature Transmitters - Duct with Range: 40 to 140 F, Averaging Element and 20 ft. long (6.1 m).

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Installation Instructions	Download
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Series	Schneider Electric
Short desc	Schneider
Supplier part number	2252-501

Features and Benefits

{'Features_and_Benefits_1': 'Action: Direct, proportional.', 'Features_and_Benefits_2': 'Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)', 'Features_and_Benefits_3': 'Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.', 'Features_and_Benefits_4': 'Maximum air pressure: 30 psig (207 kPa).', 'Features_and_Benefits_5': 'Output pressure: 3 to 15 psig (21 to 103 kPa).', 'Features_and_Benefits_6': 'Air connection: 1/8 in. FNPT.', 'Features_and_Benefits_7': 'Maximum case ambient temperature: 140°F (60°C).', 'Features_and_Benefits_8': 'Minimum case operating ambient temperature: 40 °F (4.4 °C).', 'Features_and_Benefits_9': 'Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.'}
