Control Valves & Actuators | SKU: 2252-250

2252-250 | Schneider Electric | Control Valves & Actuators

Name: 2252-250
Brand: Schneider Electric
SKU: SCH-2252250
Price: 805.58 USD
Availability: InStock

Schneider, Temp Trans 0 to 100 / Rgd

$805.58 $1,643.37

Shipping calculated at checkout.

In stock (5 units)

Usually ships next day

FREE SHIPPING

Description

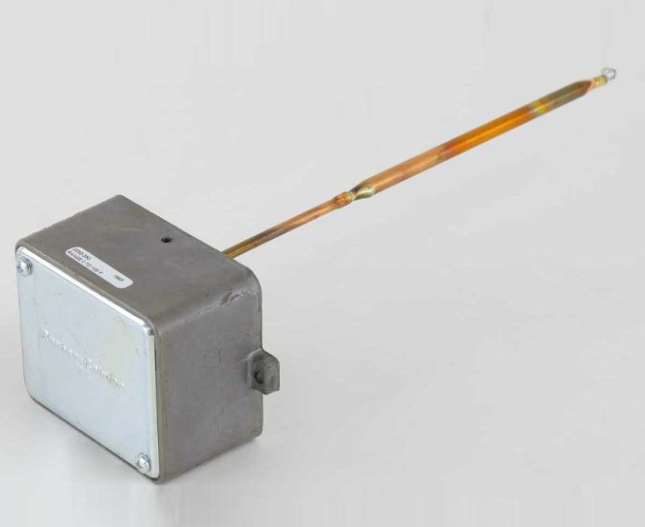

The 2252-250 is a Pneunatic Temperature Transmitters - Duct/Immersion with Range: 0 to 100 F, Rigid Element and 1/4 x 9-3/8 in. long (6 x 238 mm).

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Installation Instructions	Download
Height	0.32 in
Length	0.47 in
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Series	Schneider Electric
Short desc	Schneider, Temp Trans 0 to 100 / Rgd
Supplier part number	2252-250
Web eligible	Y
Width	1.52 in

Features and Benefits

{'Features_and_Benefits_1': 'Action: Direct, proportional.', 'Features_and_Benefits_2': 'Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)', 'Features_and_Benefits_3': 'Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.', 'Features_and_Benefits_4': 'Maximum air pressure: 30 psig (207 kPa).', 'Features_and_Benefits_5': 'Output pressure: 3 to 15 psig (21 to 103 kPa).', 'Features_and_Benefits_6': 'Air connection: 1/8 in. FNPT.', 'Features_and_Benefits_7': 'Maximum case ambient temperature: 140°F (60°C).', 'Features_and_Benefits_8': 'Minimum case operating ambient temperature: 40 °F (4.4 °C).', 'Features_and_Benefits_9': 'Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.'}
