Enclosures, Panels & Fabrication | SKU: SCE-N80LU7818

SCE-N80LU7818 | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-N80LU7818
Brand: Saginaw Control & Engineering
SKU: SAG-SCEN80LU7818
Price: 4961.87 USD
Availability: InStock

2DR Enc. Left Bay - Overlap -Right Side

$4,961.87

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

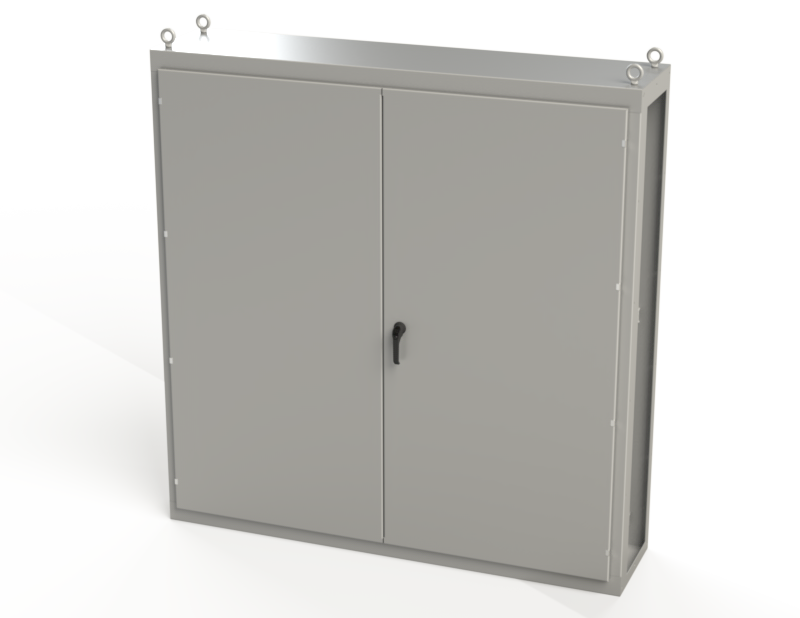

The SCE-N80LU7818 is a Saginaw Control & Engineering 2DR enc. left bay - overlap -right side open. It measures 80 x 77.75 x 18 in. (H x W x D). Can be bolted together in any desired multiple door arrangement for maximum versatility. Designed to house a variety of electrical and electronic controls and instruments. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Depth	18
Data Sheet	Download
Height	80
Product category	Enclosures, Panels & Fabrication
Short desc	2DR Enc. Left Bay - Overlap -Right Side
Supplier part number	SCE-N80LU7818
Width	77.75

Features and Benefits

{'Features_and_Benefits_1': '.104 in carbon steel', 'Features_and_Benefits_2': 'Seams continuously welded and ground smooth', 'Features_and_Benefits_3': 'Flange trough collar around all sides of door opening', 'Features_and_Benefits_4': 'Body stiffeners in large enclosures for extra rigidity', 'Features_and_Benefits_5': 'Heavy duty lifting eyes anchor into reinforced top', 'Features_and_Benefits_6': 'Concealed hinges', 'Features_and_Benefits_7': 'Black zinc die cast padlocking handles on doors', 'Features_and_Benefits_8': '3-point latching mechanism', 'Features_and_Benefits_9': 'End of latch rods have ramp shoes for easier door closing', 'Features_and_Benefits_10': 'Panel supports'}
