Enclosures | SKU: SCE-N68REXD2818

SCE-N68REXD2818 | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-N68REXD2818
Brand: Saginaw Control & Engineering
SKU: SAG-SCEN68REXD2818
Price: 2619.82 USD
Availability: InStock

Saginaw, Right Bay - Provisions for EXD, Left side Open, SCE-N80LU7824

$2,619.82

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

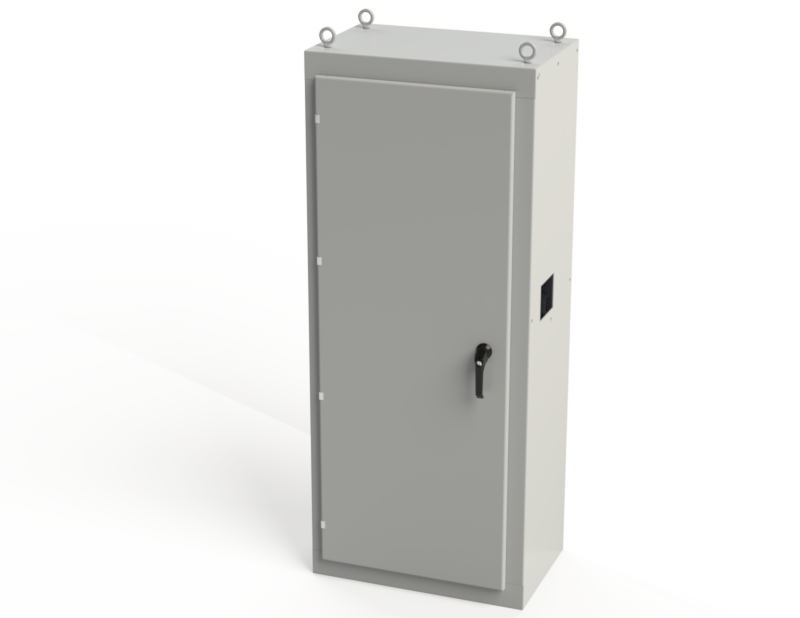

The SCE-N68REXD2818 is a Saginaw Control & Engineering right bay - provisions for EXD - left side open. It measures 68 x 28.25 x 18 in. (H x W x D). Can be bolted together in any desired multiple door arrangement for maximum versatility. Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for external disconnect. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Closure method	3-Point Latching
Depth	18
Data Sheet	Download
Installation Instructions	Download
Enclosure nema rating	IP 66, IEC 60529, 3R, 4, 12, 13
Height	68
Mounting type	Free Standing
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Right Bay - Provisions for EXD, Left side Open, SCE-N80LU7824
Size	(H x W): 68 x 28.25 in
Supplier part number	SCE-N68REXD2818
Width	28.25

Features and Benefits

{'Features_and_Benefits_1': 'Provisions for external disconnect', 'Features_and_Benefits_2': '.104 carbon steel', 'Features_and_Benefits_3': 'Seams continuously welded and ground smooth', 'Features_and_Benefits_4': 'Flange trough collar around all sides of door opening', 'Features_and_Benefits_5': 'Body stiffeners in large enclosures for extra rigidity', 'Features_and_Benefits_6': 'Heavy duty lifting eyes anchor into reinforced top', 'Features_and_Benefits_7': 'Concealed hinges', 'Features_and_Benefits_8': 'Black zinc die cast coinproof/padlocking handle on door', 'Features_and_Benefits_9': '3-point latching mechanism', 'Features_and_Benefits_10': 'End of latch rods have ramp shoes for easier door closing'}
