Enclosures | SKU: SCE-90XM7824G

SCE-90XM7824G | Saginaw | Enclosures, Panels & Fabrication

Name: SCE-90XM7824G
Brand: Saginaw
SKU: SAG-SCE90XM7824G
Price: 7319.99 USD
Availability: InStock

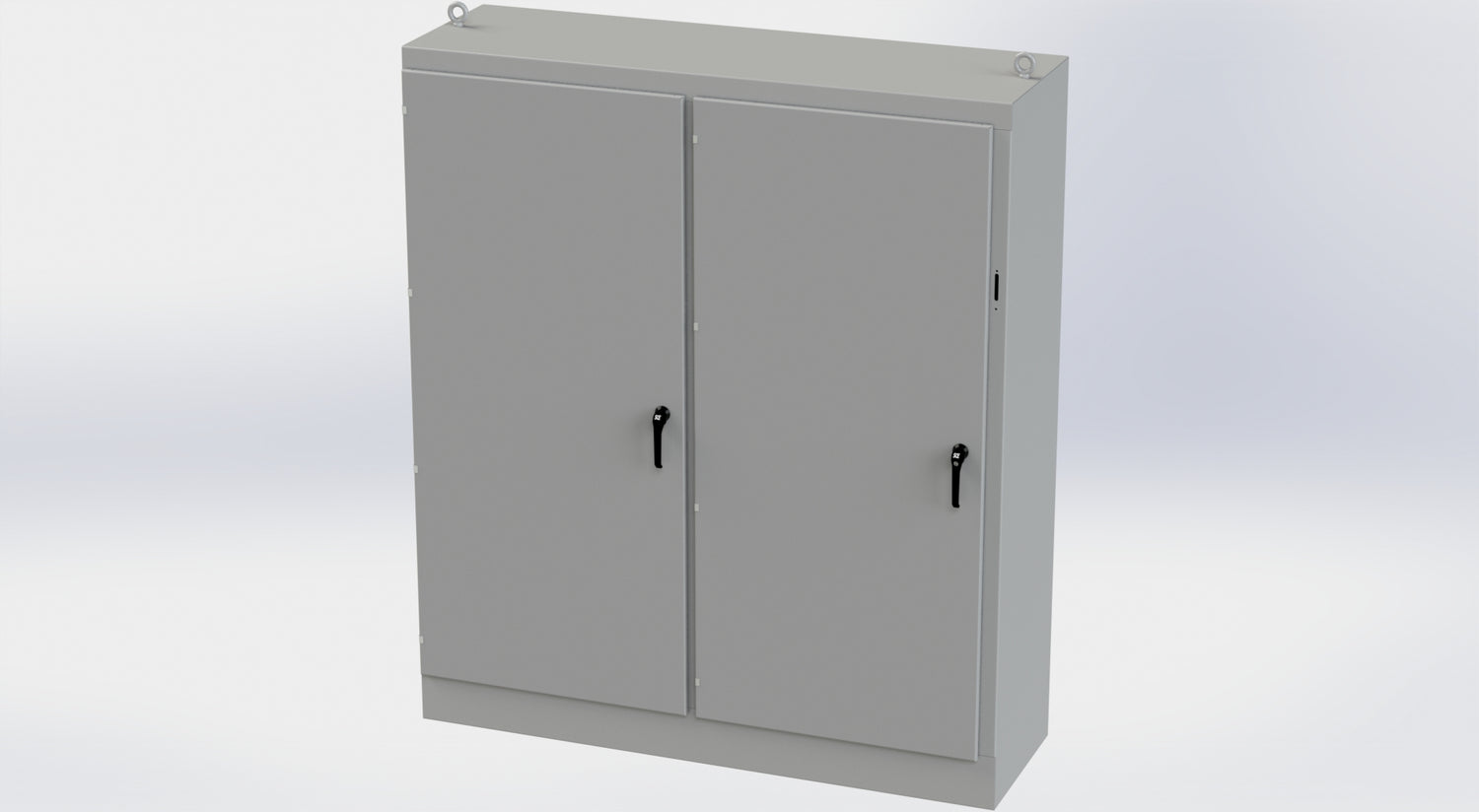

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 90 Inch (H) x 77.75 Inch (W) x 24 Inch (D), Gray, Carbon Steel

$7,319.99

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Category	Metallic Enclosures
Color	Gray
Country of origin	US
Depth	24 Inch
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coating inside and out.
Height	90 Inch
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 90 Inch (H) x 77.75 Inch (W) x 24 Inch (D), Gray, Carbon Steel
Supplier part number	SCE-90XM7824G
Width	77.75 Inch

Features and Benefits

{'Features_and_Benefits_1': '0.125 Inch. Carbon Steel.', 'Features_and_Benefits_10': '3-point Latching Mechanism.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Coinproof/padlocking Handle on Main Door with Black Zinc Die Cast Padlocking Handle on Slave Doors.', 'Features_and_Benefits_3': 'Body Stiffeners in Large Enclosures for Extra Rigidity.', 'Features_and_Benefits_4': 'Concealed Hinges.', 'Features_and_Benefits_5': 'Defeater on Master Door Requires a Screwdriver to Open.', 'Features_and_Benefits_6': 'Ends of Latch Rods Have Ramp Shoes for Easier Door Closing.', 'Features_and_Benefits_7': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_8': 'Ground Stud on Door and Body.', 'Features_and_Benefits_9': 'Heavy Duty Lifting Eyes Anchor into Reinforced Top.'}
