Enclosures | SKU: SCE-84XD4018

SCE-84XD4018 | Saginaw | Enclosures, Panels & Fabrication

Name: SCE-84XD4018
Brand: Saginaw
SKU: SAG-SCE84XD4018
Price: 5057.58 USD
Availability: InStock

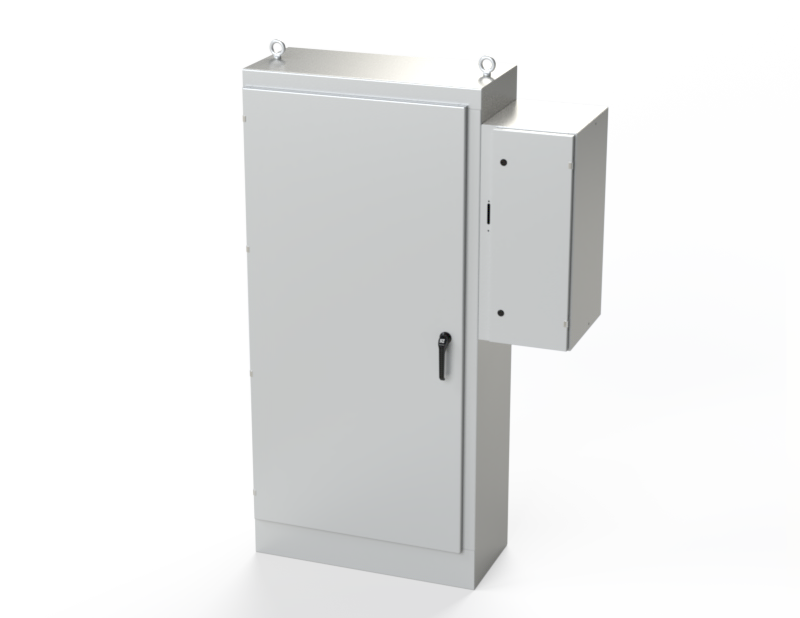

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 84 Inch (H) x 39.5 Inch (W) x 18 Inch (D), Gray, Carbon Steel

$5,057.58

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Category	Metallic Enclosures
Color	Gray
Country of origin	US
Depth	18 Inch
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coating inside and out.
Height	84 Inch
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 84 Inch (H) x 39.5 Inch (W) x 18 Inch (D), Gray, Carbon Steel
Supplier part number	SCE-84XD4018
Width	39.5 Inch

Features and Benefits

{'Features_and_Benefits_1': '0.125 Inch. Carbon Steel.', 'Features_and_Benefits_10': '3-point Latching Mechanism.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Padlocking Handles.', 'Features_and_Benefits_3': 'Body Stiffeners in Large Enclosures for Extra Rigidity.', 'Features_and_Benefits_4': 'Concealed Hinges.', 'Features_and_Benefits_5': 'Defeater on Master Door Requires a Screwdriver to Open.', 'Features_and_Benefits_6': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_7': 'Ground Stud on Door & Body.', 'Features_and_Benefits_8': 'Heavy Duty Lifting Eyes Anchor into Reinforced Top.', 'Features_and_Benefits_9': 'Hole Plugs Provided to Seal Holes in Bottom of Enclosure.'}
