Enclosures | SKU: SCE-72XR3418

SCE-72XR3418 | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-72XR3418
Brand: Saginaw Control & Engineering
SKU: SAG-SCE72XR3418
Price: 4595.11 USD
Availability: InStock

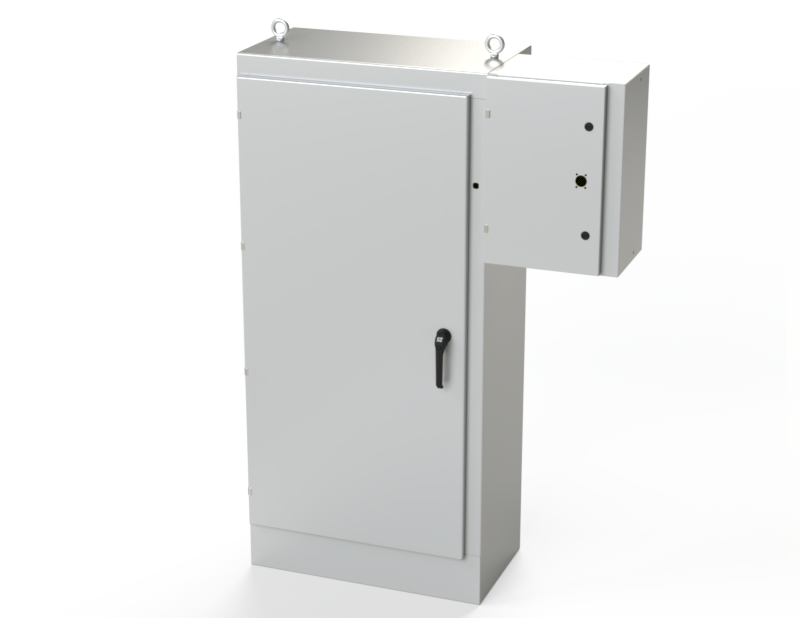

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 72 Inch (H) x 33.5 Inch (W) x 18 Inch (D), Gray, Carbon Steel

This product is no longer available

Description

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provision for Compact Fusible Disconnect with Rotary handle Disconnect 30 to 200 amp Allen-Bradley 194R, Square D GS2, Eaton/Bussmann R9, Siemens CFS models and Socomec Fuserbloc models. Provides protection from dirt, dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Color	Gray
Country of origin	US
Depth	18
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coated inside and out.
Height	72
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 72 Inch (H) x 33.5 Inch (W) x 18 Inch (D), Gray, Carbon Steel
Supplier part number	SCE-72XR3418
Width	33.5

Features and Benefits

{'Features_and_Benefits_1': '0.125 Inch Carbon Steel.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Padlocking Handles.', 'Features_and_Benefits_3': 'Body Stiffeners in Large Enclosures for Extra Rigidity', 'Features_and_Benefits_4': 'Concealed Hinges.', 'Features_and_Benefits_5': 'Defeater on Master Door Requires a Screwdriver to Open.', 'Features_and_Benefits_6': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_7': 'Ground Stud on Door and Body.', 'Features_and_Benefits_8': 'Heavy Duty Lifting Eyes Anchor into Reinforced Top.', 'Features_and_Benefits_9': 'Hole Plugs Provided to Seal Holes in Bottom of Enclosure.', 'Features_and_Benefits_10': '3-point Latching Mechanism.'}
