Enclosures | SKU: SCE-72XD6618

SCE-72XD6618 | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-72XD6618
Brand: Saginaw Control & Engineering
SKU: SAG-SCE72XD6618
Price: 6627.07 USD
Availability: InStock

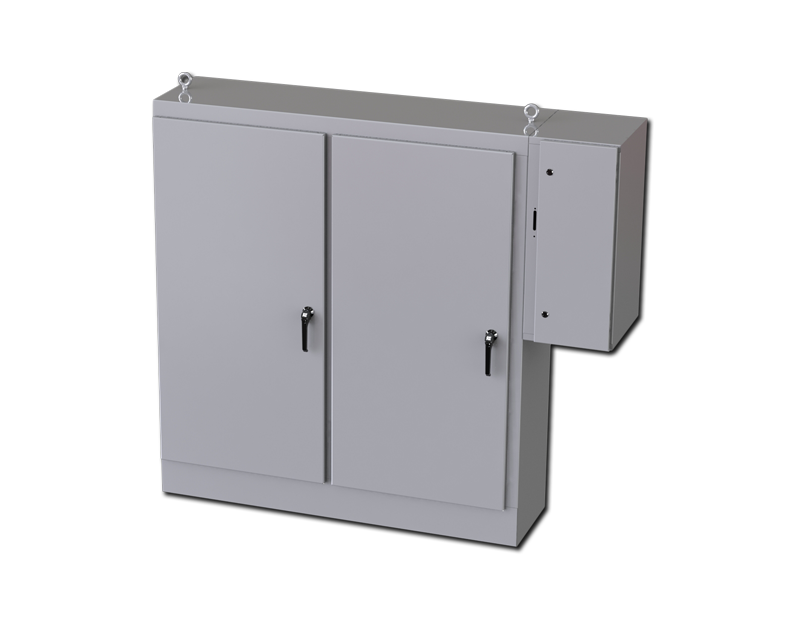

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 72 Inch (H) x 65.75 Inch (W) x 18 Inch (D), Gray, Carbon Steel

This product is no longer available

Description

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Closure method	3-Point Latching
Color	Gray
Country of origin	US
Depth	18
Data Sheet	Download
Installation Instructions	Download
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coating inside and out.
Height	72
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 72 Inch (H) x 65.75 Inch (W) x 18 Inch (D), Gray, Carbon Steel
Size	(H x W): 72 x 65.75 in
Supplier part number	SCE-72XD6618
Width	65.75

Features and Benefits

{'Features_and_Benefits_1': '0.125 Inch. Carbon Steel.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Padlocking Handles.', 'Features_and_Benefits_3': 'Body Stiffeners in Large Enclosures for Extra Rigidity.', 'Features_and_Benefits_4': 'Concealed Hinges.', 'Features_and_Benefits_5': 'Defeater on Master Door Requires a Screwdriver to Open.', 'Features_and_Benefits_6': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_7': 'Ground Stud on Door & Body', 'Features_and_Benefits_8': 'Heavy Duty Lifting Eyes Anchor into Reinforced Top.', 'Features_and_Benefits_9': 'Hole Plugs Provided to Seal Holes in Bottom of Enclosure.', 'Features_and_Benefits_10': '3-point Latching Mechanism.'}
