Enclosures | SKU: SCE-727210ULP

SCE-727210ULP | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-727210ULP
Brand: Saginaw Control & Engineering
SKU: SAG-SCE727210ULP
Price: 3790.97 USD
Availability: InStock

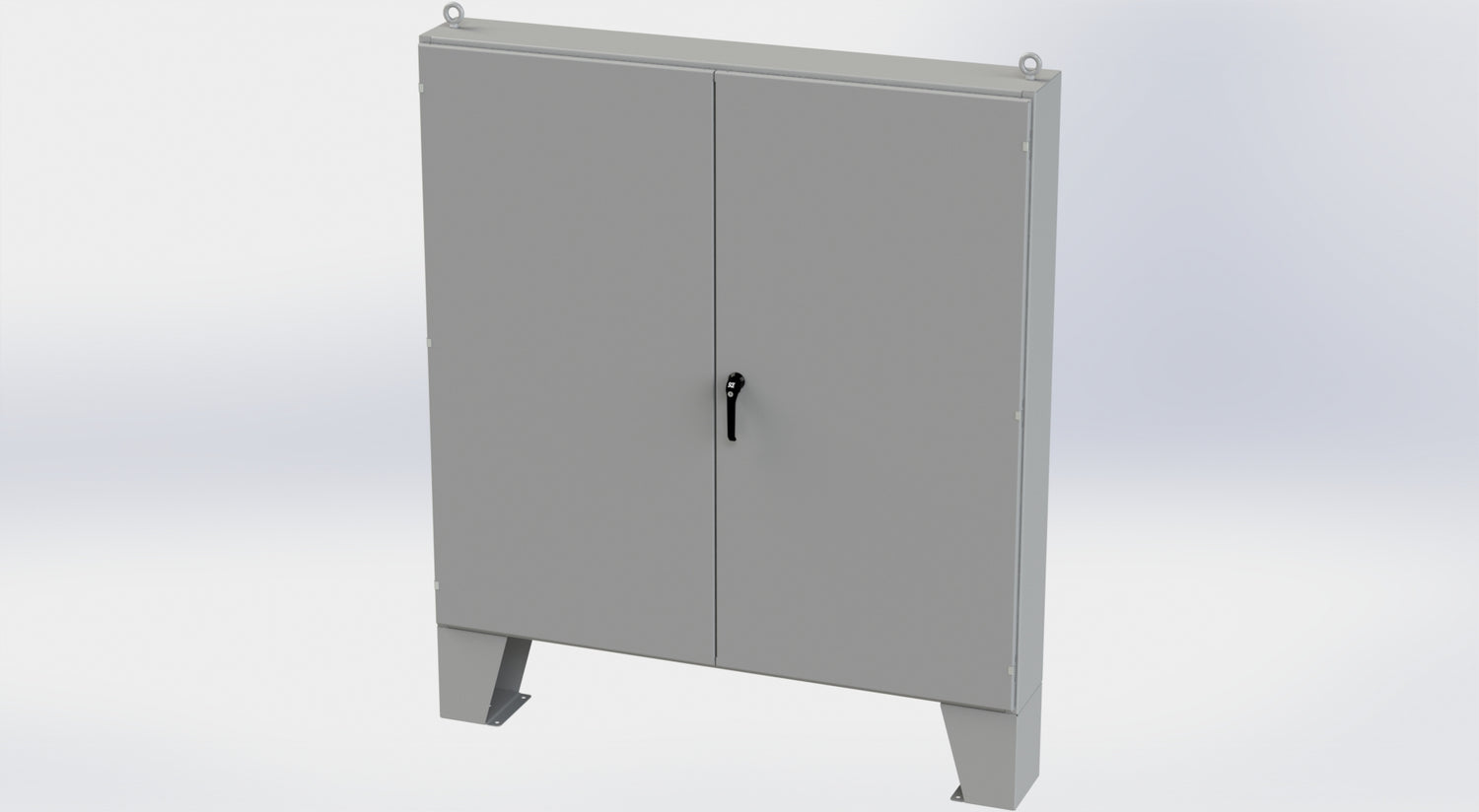

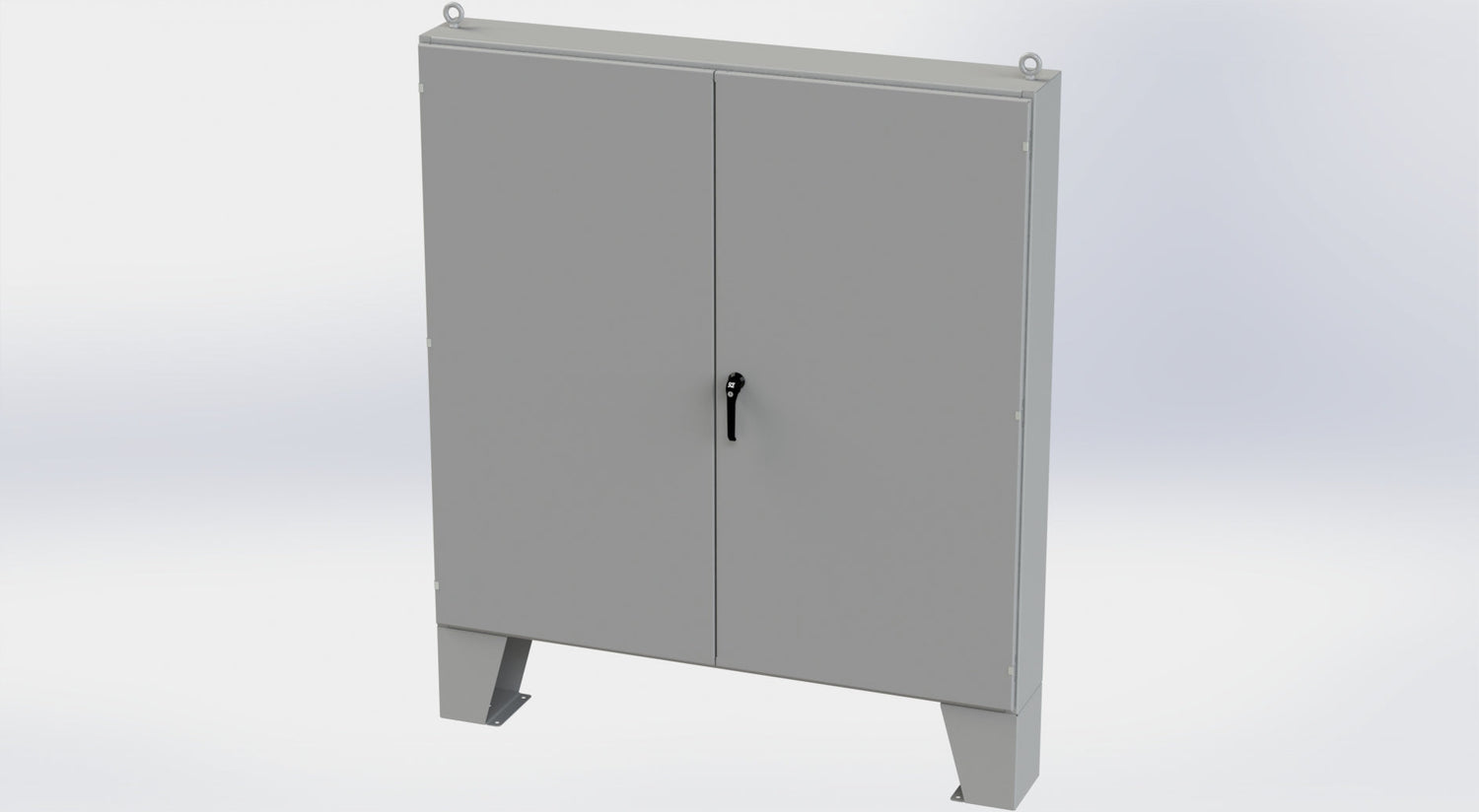

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 72 Inch (H) x 72 Inch (W) x 10 Inch (D), Gray, Carbon Steel

$3,790.97

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

Designed to house electrical and electronic controls, instruments and compartments. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Color	Gray
Country of origin	US
Depth	10
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coating inside and out.
Height	72
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 72 Inch (H) x 72 Inch (W) x 10 Inch (D), Gray, Carbon Steel
Supplier part number	SCE-727210ULP
Width	72

Features and Benefits

{'Features_and_Benefits_1': '0.104 Inch. Carbon Steel.', 'Features_and_Benefits_2': '3-point Latching Mechanism.', 'Features_and_Benefits_3': 'Black Zinc Die Cast Keylocking/padlocking Handle.', 'Features_and_Benefits_4': 'Collar Studs 3/8-16 Provided for Mounting Optional Panels.', 'Features_and_Benefits_5': 'Concealed Hinges.', 'Features_and_Benefits_6': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_7': 'Gasketed Overlapping Doors Eliminate Need for Center Post.', 'Features_and_Benefits_8': 'Ground Stud on Door and Body.', 'Features_and_Benefits_9': 'Heavy Duty Lifting Eyes.', 'Features_and_Benefits_10': '12 Inch Removable Floor Stands.'}
