Enclosures | SKU: SCE-60H3616LP

SCE-60H3616LP | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-60H3616LP
Brand: Saginaw Control & Engineering
SKU: SAG-SCE60H3616LP
Price: 1337.24 USD
Availability: InStock

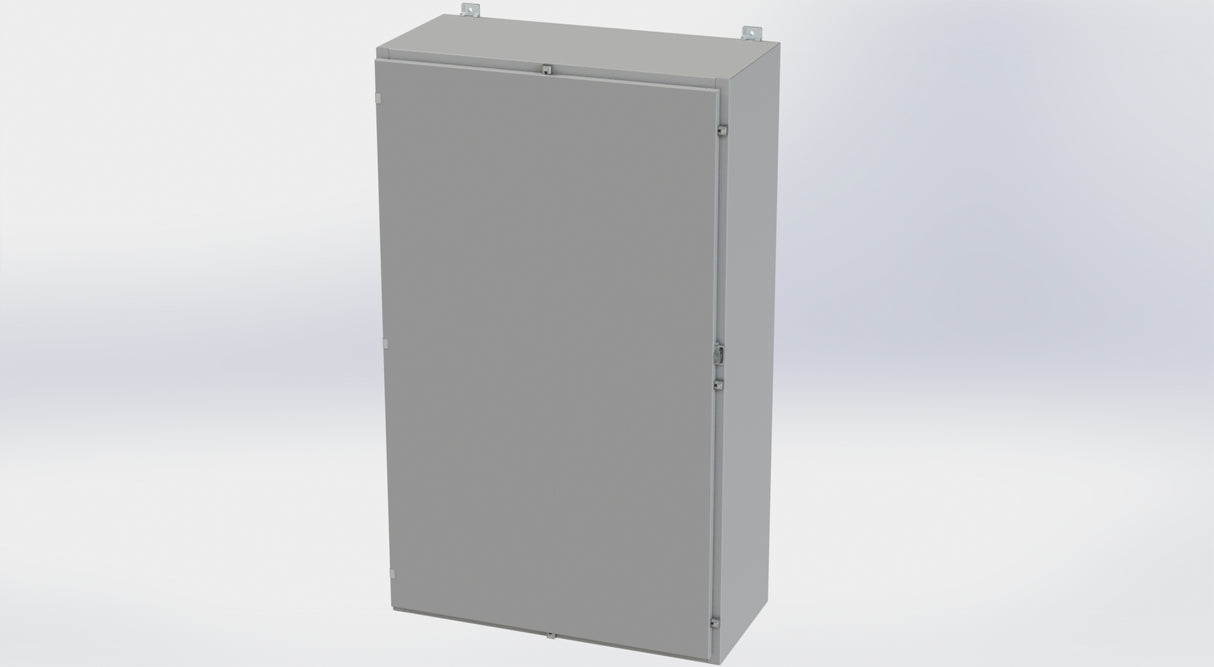

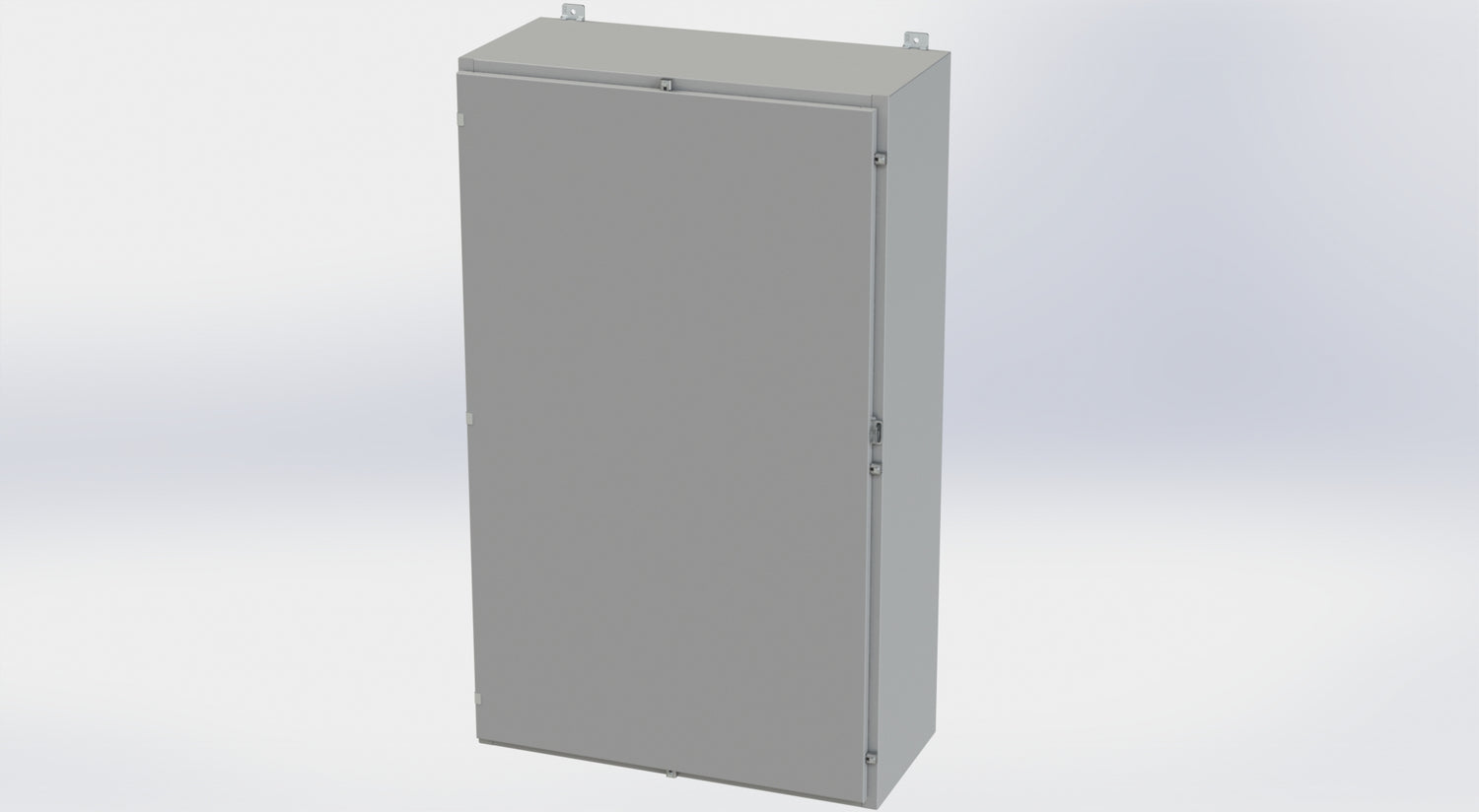

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 4, 60 Inch (H) x 36 Inch (W) x 16 Inch (D), Gray, Carbon Steel

$1,337.24

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

Designed to house electrical and electronic controls, instrument, and components. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Closure method	Screw-Down Clamps
Color	Gray
Country of origin	US
Depth	16
Data Sheet	Download
Installation Instructions	Download
Enclosure nema rating	IP 66, IEC 60529, 3R, 12, 4
Finish	ANSI-61 gray powder coating inside and out.
Height	60
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 4, 60 Inch (H) x 36 Inch (W) x 16 Inch (D), Gray, Carbon Steel
Size	(H x W): 60 x 36 in
Supplier part number	SCE-60H3616LP
Width	36

Features and Benefits

{'Features_and_Benefits_1': '0.075 Inch. Carbon Steel.', 'Features_and_Benefits_2': 'Concealed Hinge.', 'Features_and_Benefits_3': 'Door Clamps are Quick and Easy to Operate.', 'Features_and_Benefits_4': 'External Mounting Provision Top and Bottom of Back.', 'Features_and_Benefits_5': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_6': 'Ground Stud on Door.', 'Features_and_Benefits_7': 'Hasp and Staple for Padlocking.', 'Features_and_Benefits_8': 'Pour in Place Oil & Water Resistant Gasket', 'Features_and_Benefits_9': 'Removable Print Pocket Furnished If Height and Width of Enclosure is Greater Than 12 Inches.', 'Features_and_Benefits_10': 'Collar Studs 3/8-16 Provided for Mounting Optional Panels.'}
