Enclosures | SKU: SCE-604818SSFSD

SCE-604818SSFSD | Saginaw | Enclosures, Panels & Fabrication

Name: SCE-604818SSFSD
Brand: Saginaw
SKU: SAG-SCE604818SSFSD
Price: 9857.12 USD
Availability: InStock

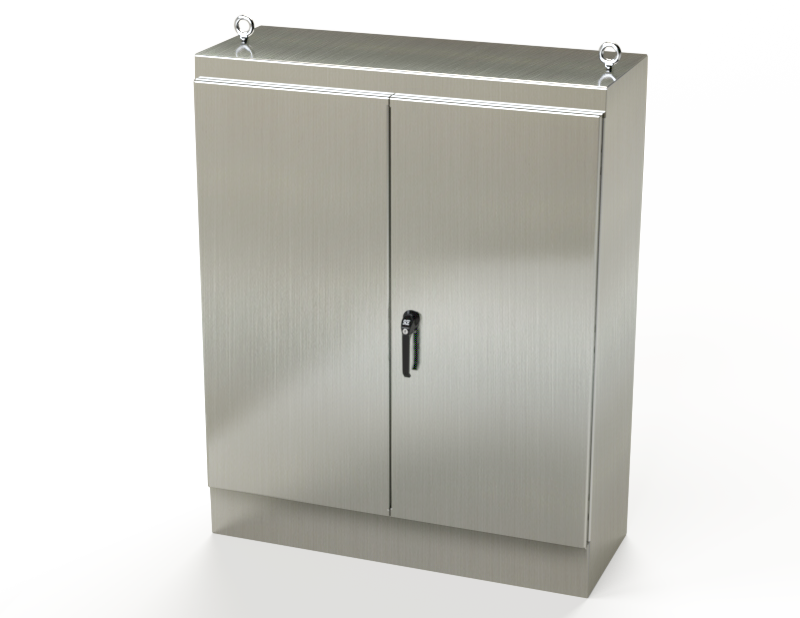

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 60 Inch (H) x 48 Inch (W) x 18 Inch (D), 304 Stainless Steel

$9,857.12

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Category	Metallic Enclosures
Country of origin	US
Depth	18 Inch
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	#4 brushed finish on all exterior surfaces.
Height	60 Inch
Material	304 Stainless Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 60 Inch (H) x 48 Inch (W) x 18 Inch (D), 304 Stainless Steel
Supplier part number	SCE-604818SSFSD
Width	48 Inch

Features and Benefits

{'Features_and_Benefits_1': '0.104 Inch. Stainless Steel Type 304.', 'Features_and_Benefits_10': '3-point Latching Mechanism.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Keylocking/padlocking Handle.', 'Features_and_Benefits_3': 'Concealed Hinges.', 'Features_and_Benefits_4': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_5': 'Ground Stud on Door and Body.', 'Features_and_Benefits_6': 'Latch Rods Have Ramp Shoes for Easier Door Closing.', 'Features_and_Benefits_7': 'Lifting Eyes for Easy Handling.', 'Features_and_Benefits_8': 'Mounting Channels Welded Horizontally on Sides of Interior Body at Top, Bottom and Middle for Mounting Optional Panels or Rack Mounting Angles.', 'Features_and_Benefits_9': 'Oil Resistant Door Gasket.'}
