Enclosures  | SKU: SCE-4SPBH

SCE-4SPBH | Saginaw | Enclosures, Panels & Fabrication

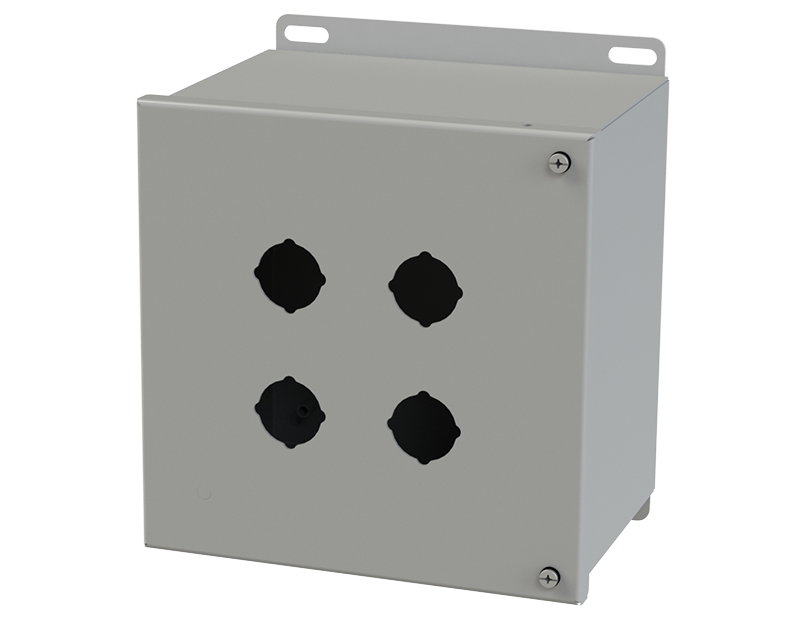

Saginaw, Metallic Enclosure, Bolt-on Continuous Hinge, 12, 4, 8.125 Inch (H) x 8 Inch (W) x 6 Inch (D), Gray, Carbon Steel
$162.62
Shipping calculated at checkout.

SCE-4SPBH is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Product Specifications

Name Value
Category Metallic Enclosures
Color Gray
Country of origin US
Depth 6 Inch
Enclosure nema rating IP 66, IEC 60529, 12, 4
Finish ANSI-61 gray powder coating inside and out.
Height 8.125 Inch
Material Carbon Steel
Mounting type Wall Mount
Product category Enclosures, Panels & Fabrication
Product subcategory Enclosures
Series Saginaw Control and Engineering
Short desc Saginaw, Metallic Enclosure, Bolt-on Continuous Hinge, 12, 4, 8.125 Inch (H) x 8 Inch (W) x 6 Inch (D), Gray, Carbon Steel
Supplier part number SCE-4SPBH
Width 8 Inch

Features and Benefits

{'Features_and_Benefits_1': '0.063 Inch. Carbon Steel.', 'Features_and_Benefits_10': '4-way Standard Pushbutton Holes Accept All Brands of Oil-tight Pushbuttons, Switches, and Pilot Lights. Hole Diameter Is 1.20 Inch. (30.5 mm)', 'Features_and_Benefits_2': 'Bolt-on Continuous Hinge with Stainless Steel Hinge P Inch.', 'Features_and_Benefits_3': 'Captivated Cover Screws Thread into Sealed Wells.', 'Features_and_Benefits_4': 'Continuously Welded Seams.', 'Features_and_Benefits_5': 'Ground Stud on Door.', 'Features_and_Benefits_6': 'Pour in Place Oil & Water Resistant Gasket', 'Features_and_Benefits_7': 'Provisions for Removable Subpanel, Supported By Standoffs.', 'Features_and_Benefits_8': 'Welded Mounting Provision Top and Bottom of Back.'}
