Name: SCE-48X2D7818
Brand: Saginaw Control & Engineering
SKU: SAG-SCE48X2D7818
Price: 3559.54 USD
Availability: InStock

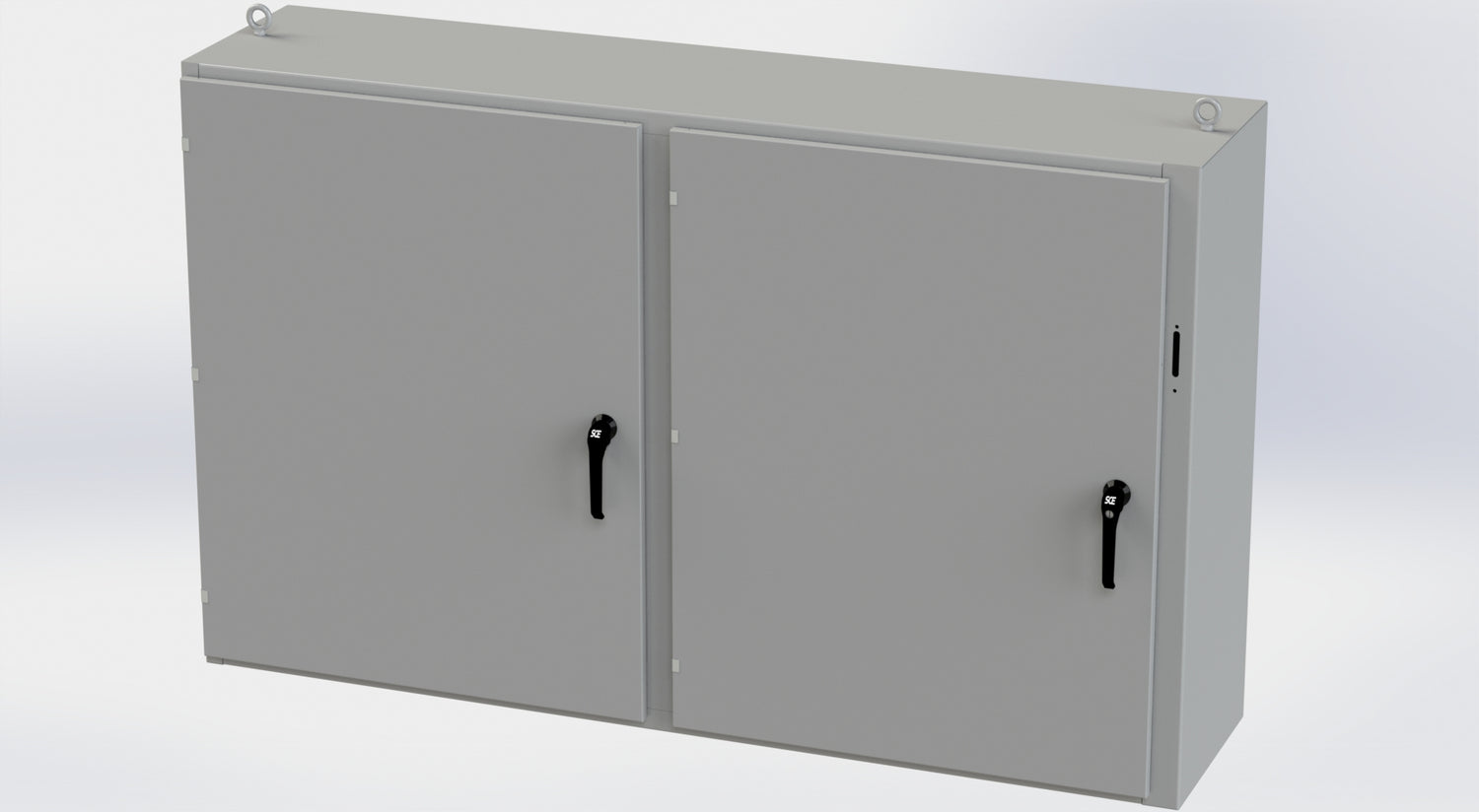

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 48 Inch (H) x 77.75 Inch (W) x 18 Inch (D), Gray, Carbon Steel

$3,559.54

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

Designed to easily accommodate various types of mounting methods with minimal modifications. Provisions are provided in the back of the enclosure for wall or frame mounting and in the bottom for wall mount brackets, frame mount, or partial provisions for a floor stand kit. Enclosure is designed to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

Product Specifications

Name	Value
Closure method	3-Point Latching
Color	Gray
Country of origin	US
Depth	18
Data Sheet	Download
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coating inside and out.
Height	48
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 48 Inch (H) x 77.75 Inch (W) x 18 Inch (D), Gray, Carbon Steel
Size	(H x W): 48 x 77.75 in
Supplier part number	SCE-48X2D7818
Width	77.75

Features and Benefits

{'Features_and_Benefits_1': '0.104 Inch. Carbon Steel.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Coinproof/padlocking Handle on Main Door with Black Zinc Die Cast Padlocking Handle on Slave Door.', 'Features_and_Benefits_3': 'Body Stiffeners in Large Enclosures for Extra Rigidity.', 'Features_and_Benefits_4': 'Collar Studs 3/8-16 Provided for Mounting Optional Panels.', 'Features_and_Benefits_5': 'Concealed Hinges.', 'Features_and_Benefits_6': 'Defeater on Master Door Requires a Screwdriver to Open.', 'Features_and_Benefits_7': 'Ends of Latch Rods Have Ramp Shoes for Easier Door Closing.', 'Features_and_Benefits_8': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_9': 'Ground Stud on Door and Body.', 'Features_and_Benefits_10': '3-point Latching Mechanism.'}
