Enclosures | SKU: SCE-463719DCSS

SCE-463719DCSS | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-463719DCSS
Brand: Saginaw Control & Engineering
SKU: SAG-SCE463719DCSS
Price: 8371.11 USD
Availability: InStock

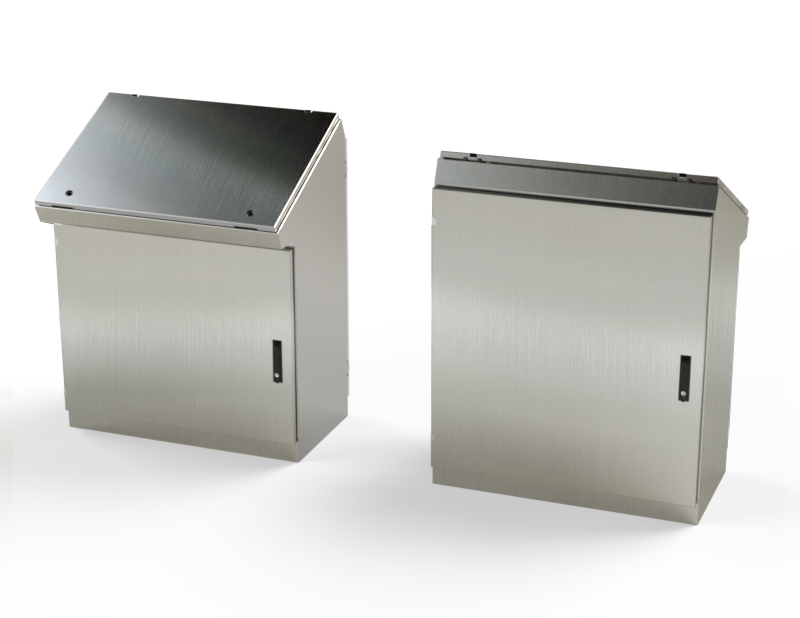

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 46.25 Inch (H) x 37.25 Inch (W) x 18.5 Inch (D), 304 Stainless Steel

$8,371.11

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

This product is intended for indoor use. It provides protection to personnel against access to hazardous parts. In addition, it protects the equipment inside the enclosure against introduction of solid foreign objects, falling dirt and water. It is designed for use in a standing or sitting position, supports both single and dual access, and boasts a top that opens for easier accessibility.

Product Specifications

Name	Value
Closure method	3-Point Latching
Country of origin	US
Depth	18.5
Data Sheet	Download
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	#4 brushed finish on all exterior surfaces.
Height	46.25
Material	304 Stainless Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 46.25 Inch (H) x 37.25 Inch (W) x 18.5 Inch (D), 304 Stainless Steel
Size	(H x W): 46.25 x 37.25 in
Supplier part number	SCE-463719DCSS
Width	37.25

Features and Benefits

{'Features_and_Benefits_1': '0.075 Inch. Stainless Steel Type 304.', 'Features_and_Benefits_2': 'Black, Quarter Turn Latches on Top Door.', 'Features_and_Benefits_3': 'Concealed Hinges.', 'Features_and_Benefits_4': 'Door Props on Sloped Door to Hold in the Open Position.', 'Features_and_Benefits_5': 'Flange Trough Collar Around All Sides of Door Opening.', 'Features_and_Benefits_6': 'Ground Stud on Door & Body', 'Features_and_Benefits_7': 'Keylocking Black 3-point Flush Swing Handle in Front and Rear Doors.', 'Features_and_Benefits_8': 'Mounting Channels Welded on Sides of Interior Body for Mounting Optional Panels.', 'Features_and_Benefits_9': 'Mounting Hardware Included for (1) Optional Sub-panel.', 'Features_and_Benefits_10': '25 Degree Sloped Top.'}
