Enclosures | SKU: SCE-41VR2412

SCE-41VR2412 | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-41VR2412
Brand: Saginaw Control & Engineering
SKU: SAG-SCE41VR2412
Price: 1563.43 USD
Availability: InStock

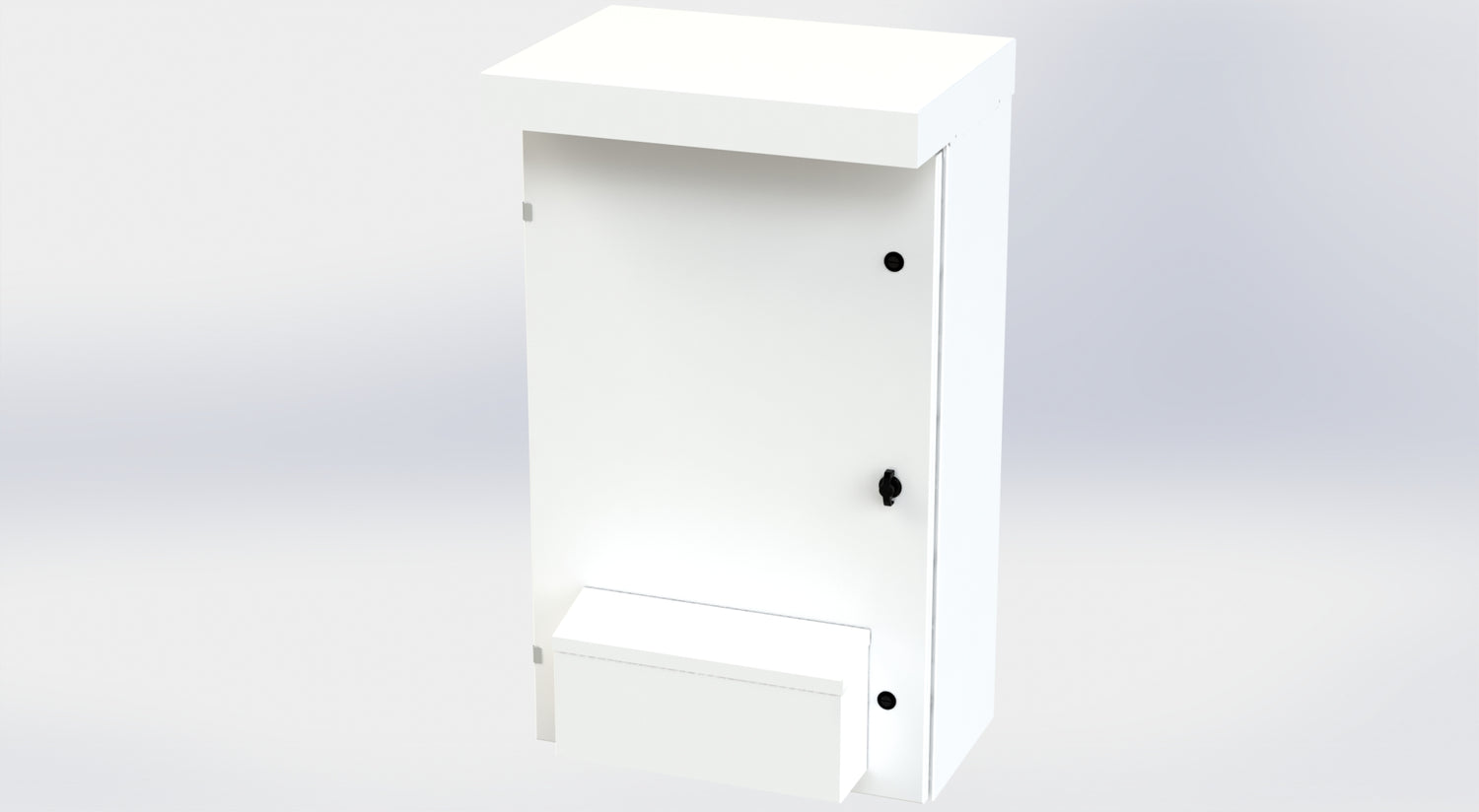

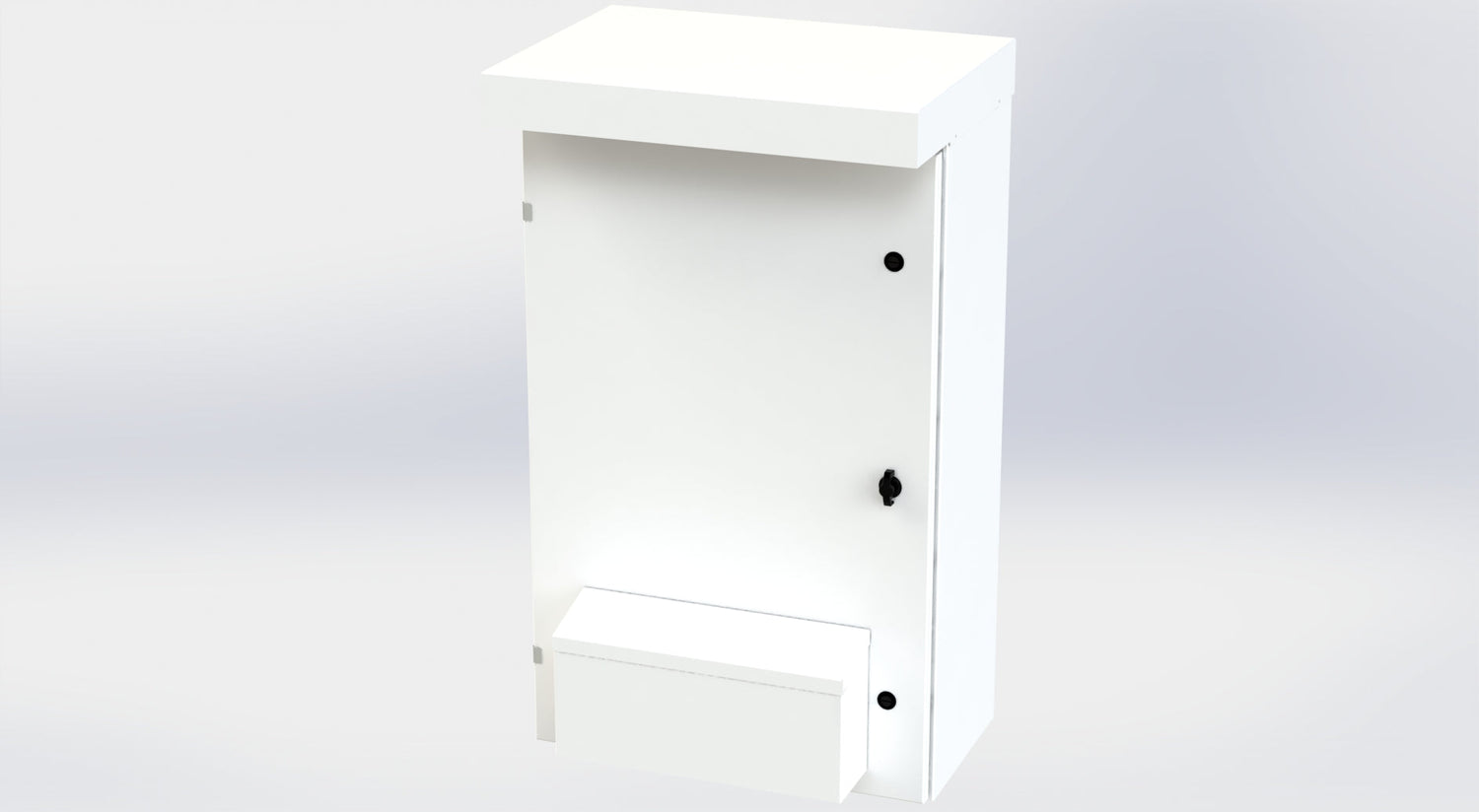

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 41 Inch (H) x 24 Inch (W) x 12 Inch (D), White, Galvannealed Steel

$1,563.43

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

Designed to house electrical controls, drives, instruments and components used in an outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow).

Product Specifications

Name	Value
Closure method	1/4-Turn Latch
Color	White
Country of origin	US
Depth	12
Data Sheet	Download
Enclosure nema rating	IP 32, IEC 60529, 3R
Finish	White powder coating inside and out.
Height	41
Material	Galvannealed Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 41 Inch (H) x 24 Inch (W) x 12 Inch (D), White, Galvannealed Steel
Size	(H x W): 41 x 24 in
Supplier part number	SCE-41VR2412
Width	24

Features and Benefits

{'Features_and_Benefits_1': '0.075 Inch. Galvannealed Steel.', 'Features_and_Benefits_2': 'Black Quarter Turn Latches and Padlock Wing Knob.', 'Features_and_Benefits_3': 'Collar Studs 3/8-16 Provided for Mounting Optional Panels.', 'Features_and_Benefits_4': 'Concealed Hinges.', 'Features_and_Benefits_5': 'Din Rail Mounting Provisions Inside Top for Installation of Thermostat and Terminals.', 'Features_and_Benefits_6': 'Doors Open 180 Degrees.', 'Features_and_Benefits_7': 'Ground Studs on Door and Body.', 'Features_and_Benefits_8': 'Mounting Holes for Optional Mounting Straps.', 'Features_and_Benefits_9': 'Oil Resistant Gasket.', 'Features_and_Benefits_10': '3/8-16 Grounding Kit.'}
