Enclosures | SKU: SCE-20K2008SSST

SCE-20K2008SSST | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-20K2008SSST
Brand: Saginaw Control & Engineering
SKU: SAG-SCE20K2008SSST
Price: 2356.93 USD
Availability: InStock

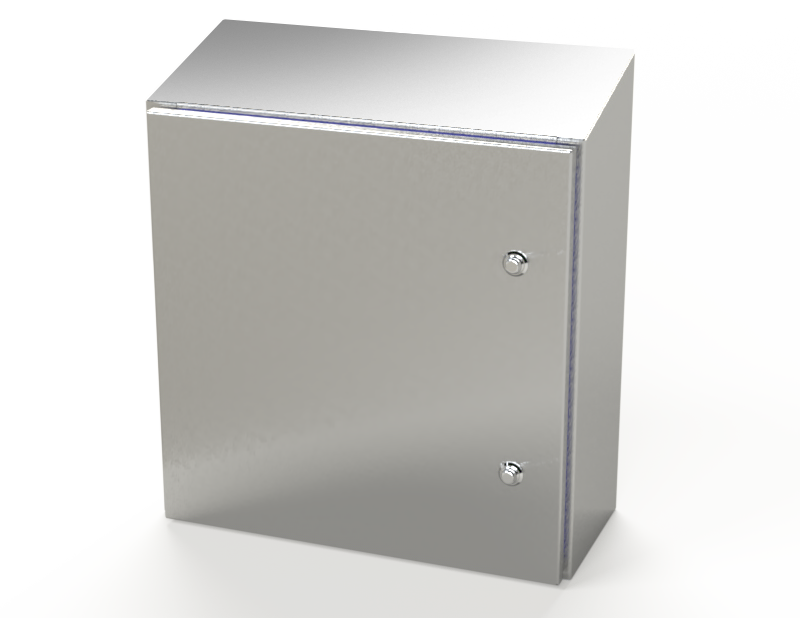

Saginaw, Metallic Enclosure, Internal Swing Out Hinge, IS25, 20 Inch (H) x 20 Inch (W) x 8 Inch (D), 304 Stainless Steel

$2,356.93 $2,399.80

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food & Beverage industry. Enclosure is designed with internal swing-out hinges to reduce bacteria catch points and helps to maximize back panel space. Includes dual gasket design that ensures it performs in extreme applications. Inner Pour in place oil & water-resistant gasket with an easily replaceable outer gasket - FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption.

Product Specifications

Name	Value
Closure method	1/4-Turn Latch
Country of origin	US
Depth	8
Data Sheet	Download
Installation Instructions	Download
Enclosure nema rating	IP 69, IEC 60529, IS25
Finish	# 4 Brushed finish 25-35 RA suitable for medical and food industry.
Height	20
Material	304 Stainless Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, Internal Swing Out Hinge, IS25, 20 Inch (H) x 20 Inch (W) x 8 Inch (D), 304 Stainless Steel
Size	(H x W): 20 x 20 in
Supplier part number	SCE-20K2008SSST
Width	20

Features and Benefits

{'Features_and_Benefits_1': '0.075 Inch. Stainless Steel Type 304', 'Features_and_Benefits_2': 'ANSI 3A 00-01 Sanitary Standard for General Requirements', 'Features_and_Benefits_3': 'DIN 40050-9, IP69K', 'Features_and_Benefits_4': 'Doors Open 110 Degree', 'Features_and_Benefits_5': 'FDA - Grade Silicone Outer Gasket', 'Features_and_Benefits_6': 'Ground Stud on Door & Body', 'Features_and_Benefits_7': 'Internal Swing Out Hinges', 'Features_and_Benefits_8': 'Mounting Holes in Back of Enclosure for Optional Mounting Stand-off or Mounting Options', 'Features_and_Benefits_9': 'NSF 169 Special Purpose Food Equipment and Devices', 'Features_and_Benefits_10': '15 Degree Sloped Top'}
