Enclosures
| SKU:
SCE-20H2006SS6LP
SCE-20H2006SS6LP | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

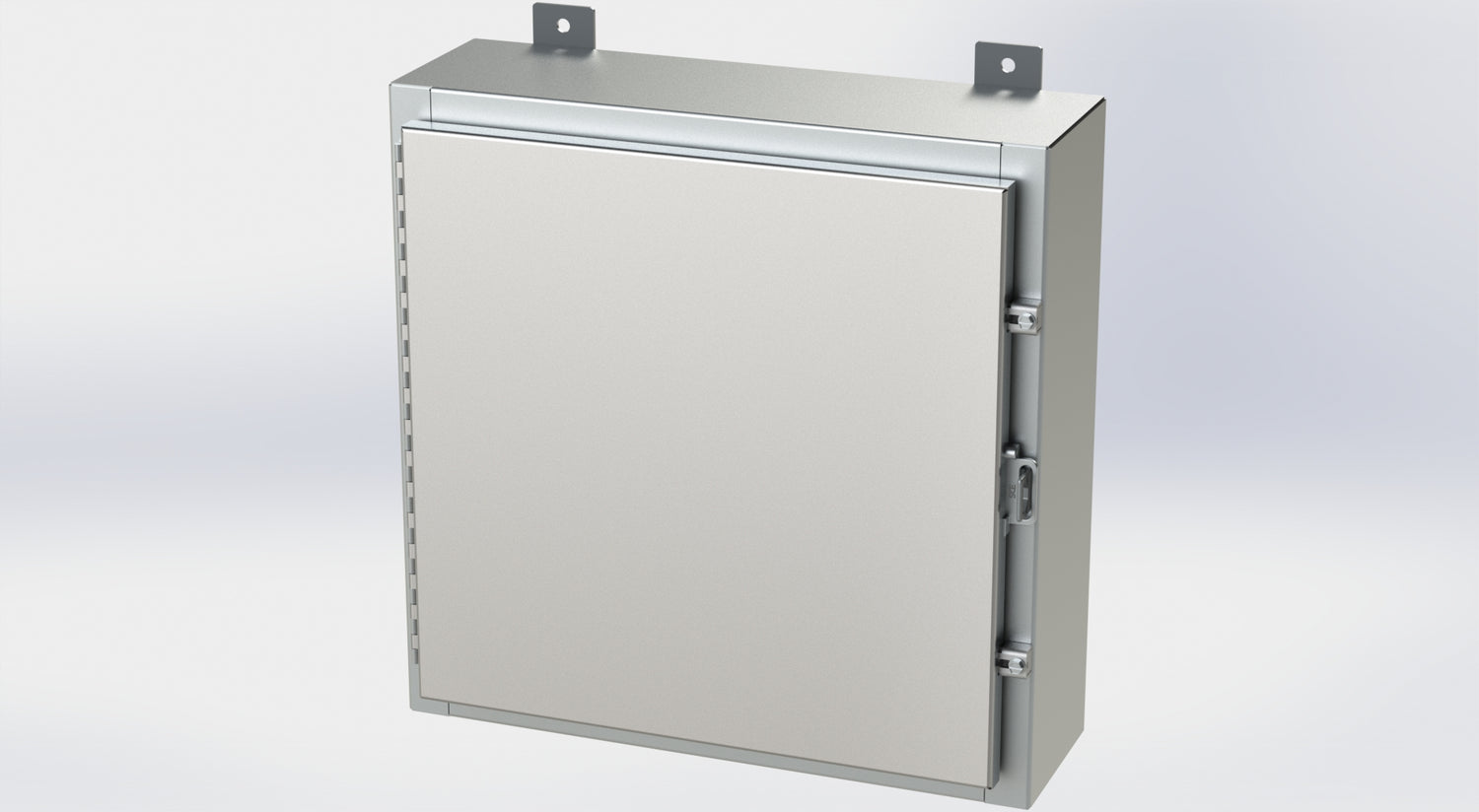

Saginaw, Metallic Enclosure, Continuous Hinge, 3R, 12, 4, 4X, 20 Inch (H) x 20 Inch (W) x 6 Inch (D), 316/316L Stainless Steel
Retail Price
$1,448.88
Shipping calculated at checkout.
SCE-20H2006SS6LP is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 7 days
FREE SHIPPING
Couldn't load pickup availability
Description
Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are very wet conditions. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.
Product Specifications
| Name | Value |
|---|---|
| Closure method | Screw-Down Clamps |
| Country of origin | US |
| Depth | 6 |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure nema rating | IP 66, IEC 60529, 3R, 12, 4, 4X |
| Finish | #4 brushed finish on all exterior surfaces. |
| Height | 20 |
| Material | 316/316L Stainless Steel |
| Mounting type | Wall Mount |
| Product category | Enclosures, Panels & Fabrication |
| Product subcategory | Enclosures |
| Series | Saginaw Control and Engineering |
| Short desc | Saginaw, Metallic Enclosure, Continuous Hinge, 3R, 12, 4, 4X, 20 Inch (H) x 20 Inch (W) x 6 Inch (D), 316/316L Stainless Steel |
| Size | (H x W): 20 x 20 in |
| Supplier part number | SCE-20H2006SS6LP |
| Width | 20 |
Features and Benefits
{'Features_and_Benefits_1': '0.075 Inch. Stainless Steel Type 316/316L.', 'Features_and_Benefits_2': 'Continuously Welded Seams Ground Smooth.', 'Features_and_Benefits_3': 'Flange Trough Collar Around All Sides Of Door Opening.', 'Features_and_Benefits_4': 'Ground Stud on Door.', 'Features_and_Benefits_5': 'Hasp and Staple for Padlocking.', 'Features_and_Benefits_6': 'Pour in Place Oil & Water Resistant Gasket', 'Features_and_Benefits_7': 'Removable Print Pocket Furnished if Height and Width of Enclosure is Greater Than 12 Inches.', 'Features_and_Benefits_8': 'Stainless Steel Clamps on Three Sides Door When Greater Than 30 Inch Wide.', 'Features_and_Benefits_9': 'Stainless Steel Continuous Hinges.', 'Features_and_Benefits_10': 'Collar Studs 3/8-16 Provided for Mounting Optional Subpanels.'}
