Enclosures | SKU: SCE-14B

SCE-14B | Saginaw Control & Engineering | Enclosures, Panels & Fabrication

Name: SCE-14B
Brand: Saginaw Control & Engineering
SKU: SAG-SCE14B
Price: 3094.28 USD
Availability: InStock

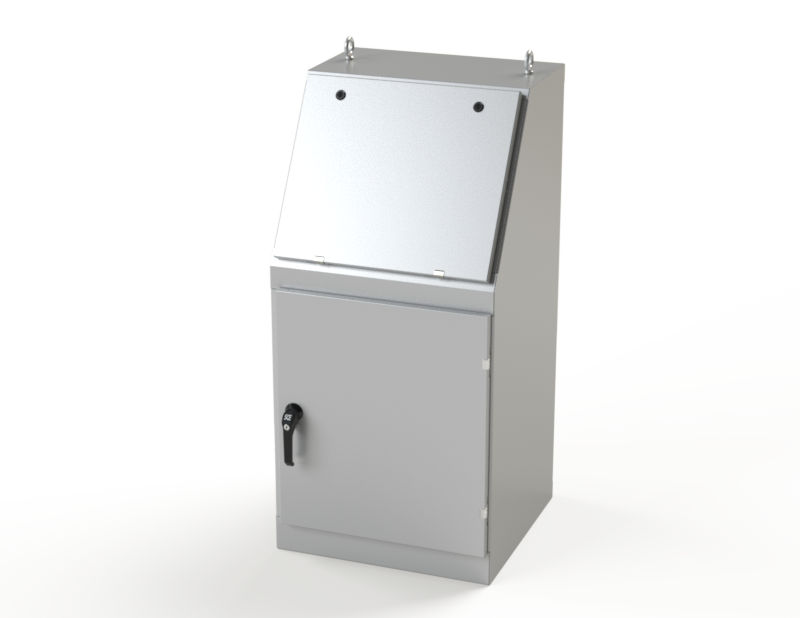

Saginaw, Metallic Enclosure, 3R, 12, 50 Inch (H) x 24 Inch (W) x 23 Inch (D), Gray, Carbon Steel

$3,094.28

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Heavy duty construction provides protection from dirt, oil, dust, and water.

Product Specifications

Name	Value
Color	Gray
Country of origin	US
Depth	23
Enclosure nema rating	IP 55, IEC 60529, 3R, 12
Finish	ANSI-61 gray powder coat inside and out.
Height	50
Material	Carbon Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Saginaw Control and Engineering
Short desc	Saginaw, Metallic Enclosure, 3R, 12, 50 Inch (H) x 24 Inch (W) x 23 Inch (D), Gray, Carbon Steel
Supplier part number	SCE-14B
Width	24

Features and Benefits

{'Features_and_Benefits_1': '0.104 Inch. Carbon Steel.', 'Features_and_Benefits_2': 'Black Zinc Die Cast Keylocking/padlocking Handles on Front and Rear Doors.', 'Features_and_Benefits_3': 'Dual Access Enclosure. Offering Front and Rear Entry Doors.', 'Features_and_Benefits_4': 'Ground Stud on Door.', 'Features_and_Benefits_5': 'Interior Print Pocket.', 'Features_and_Benefits_6': 'Optional Equipment Mount to Horizontal Channels Welded to Sides.', 'Features_and_Benefits_7': 'Optional Writing Desk and Top Section Available.', 'Features_and_Benefits_8': 'Pour in Place Oil & Water Resistant Gasket', 'Features_and_Benefits_9': 'Removable Eyebolts in Console Body.', 'Features_and_Benefits_10': '3-point Latching Mechanism.'}
