Data Center Products | SKU: ETC-241000-000

ETC-241000-000 | Robertshaw | Thermostats & Controllers

Name: ETC-241000-000
Brand: Robertshaw
SKU: RBS-ETC241000000
Price: 280.25 USD
Availability: InStock

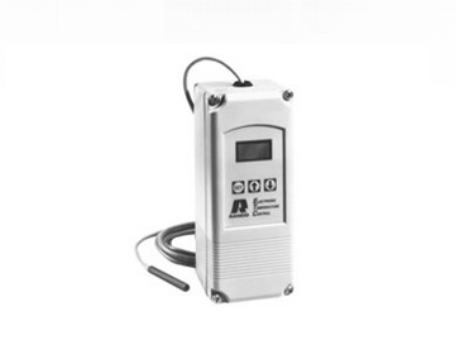

Ranco, Two Stage electronic Temperature Control, 120/240 VAC, NEMA 4X

$280.25 $693.65

Shipping calculated at checkout.

In stock (4 units)

Usually ships next day

FREE SHIPPING

Description

The Ranco ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility.

Product Specifications

Name	Value
Application	Electronic Temperature Control
Capillary length	8 Foot
Differential	1 to 30 Deg. F (1 to 16 Deg.C)
Data Sheet	Download
Enclosure type	NEMA 4X
Product category	Thermostats & Controllers
Product subcategory	Remote Sensor
Series	Robertshaw
Short desc	Ranco, Two Stage electronic Temperature Control, 120/240 VAC, NEMA 4X
Supplier part number	ETC-241000-000
Temperature range	-30 to 220F
Type	Two Stage Electronic Temperature Control
Voltage	120/208/240 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Heavy-duty relay is 1 HP rated', 'Features_and_Benefits_2': '8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire', 'Features_and_Benefits_3': 'Keypad lockout to prevent end-user alteration of settings', 'Features_and_Benefits_4': 'High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage', 'Features_and_Benefits_5': 'NEMA 1 case and cover', 'Features_and_Benefits_6': 'Anti-short cycle compressor delay for cooling applications', 'Features_and_Benefits_7': 'Wide differential adjustment (1F to 30F)', 'Features_and_Benefits_8': 'Wide temperature range (-30F to 220F) (-34.4C to 104.4C)', 'Features_and_Benefits_9': 'LCD read-out for sensor temperature, control settings, and relay status'}
