Combustion & Flame Safety | SKU: 700-506

700-506 | Robertshaw | Combustion & Flame Safety

Name: 700-506
Brand: Robertshaw
SKU: RBS-700506
Price: 259.09 USD
Availability: InStock

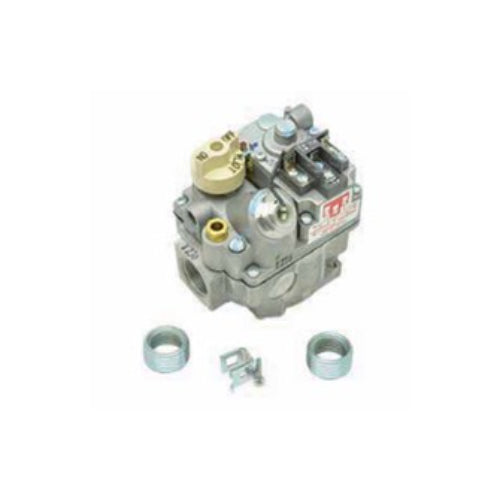

700 Series Millivolt Gas Valve, 250 to 750 mV, 300,000 BTU, 3/4 Inch Inlet, 3.5 Inch WC Natural Gas

$259.09 $633.36

Shipping calculated at checkout.

In stock (1 units)

Usually ships next day

FREE SHIPPING

Description

700 Series - mV The Robertshaw 700 Series mV Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 mV gas valves offers a wide range of replacements from small capacity 3/8 Inch pipe to high capacity 1 Inch pipe up to 720,000 BTU usage.

Product Specifications

Name	Value
Capacity	300,000 BTU
Category	Gas Valves
Configuration	Coaxial Thermopile and 2 Lead Thermopile can be Used
Data Sheet	Download
Enclosure nema rating	250 to 750 mV
Includes	(2) Reducer Bushings
Pressure regulator setting	3.5 Inch WC Natural Gas
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Series	Robertshaw
Short desc	700 Series Millivolt Gas Valve, 250 to 750 mV, 300,000 BTU, 3/4 Inch Inlet, 3.5 Inch WC Natural Gas
Size	3/4 Inch Inlet
Supplier part number	700-506

Features and Benefits

3 Position Outlet Straight-Through (FPT): 3/4 Inch | Various Gas Types: Natural, Manufactured, Mixed, LP, and LP/Air Mixtures | Maximum Inlet Pressure 14 Inch WC (0.5 psi) | 3 Position Outlet Side (FPT) with Plugs: Straight-Through | Terminal Type Combination Screw/Spade | Ambient Temperature of -40 to 175 deg F | Pilot Outlet 1/4 Inch Tubing | Standard NEMA Terminals | Gas Cock Dial Marking Off - Pilot - On
