Combustion & Flame Safety  | SKU: 700-504

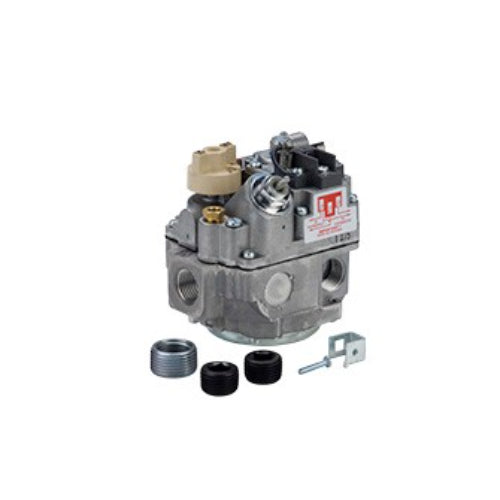

700-504 | Robertshaw | Combustion & Flame Safety

700 Series Millivolt Gas Valve, 250 to 750 mV, 240,000 BTU, 1/2 Inch Inlet, 3.5 Inch WC Natural Gas
$327.09 $799.58
Shipping calculated at checkout.

Delivery

In stock (2 units)

Usually ships next day

FREE SHIPPING

Description

The Robertshaw 700 Series mV Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 mV gas valves offers a wide range of replacements from small capacity 3/8 Inch pipe to high capacity 1 Inch pipe up to 720,000 BTU usage.

Product Specifications

Name Value
Capacity 240,000 BTU
Category Gas Valves
Configuration Coaxial Thermopile and 2 Lead Thermopile can be Used
Data Sheet Download
Enclosure nema rating 250 to 750 mV
Includes Reducer Bushing
Pressure regulator setting 3.5 Inch WC Natural Gas
Product category Combustion & Flame Safety
Product subcategory Gas Valves & Actuators
Series Robertshaw
Short desc 700 Series Millivolt Gas Valve, 250 to 750 mV, 240,000 BTU, 1/2 Inch Inlet, 3.5 Inch WC Natural Gas
Size 1/2 Inch Inlet
Supplier part number 700-504

Features and Benefits

Various Gas Types: Natural, Manufactured, Mixed, LP, and LP/Air Mixtures | Maximum Inlet Pressure 14 Inch WC (0.5 psi) | Terminal Type Combination Screw/Spade | Ambient Temperature of -40 to 175 deg F | 3 Position Outlet Straight-Through (FPT): 3/4 Inch | 3 Position Outlet Side (FPT) with Plugs: 1/2 Inch | Pilot Outlet 1/4 Inch Tubing | Standard NEMA Terminals | Gas Cock Dial Marking Off - Pilot - On
