Enclosures, Panels & Fabrication | SKU: 3100101

3100101 | Phoenix Contact | Enclosures, Panels & Fabrication

Name: 3100101
Brand: Phoenix Contact
SKU: PHX-3100101
Price: 23.28 USD
Availability: InStock

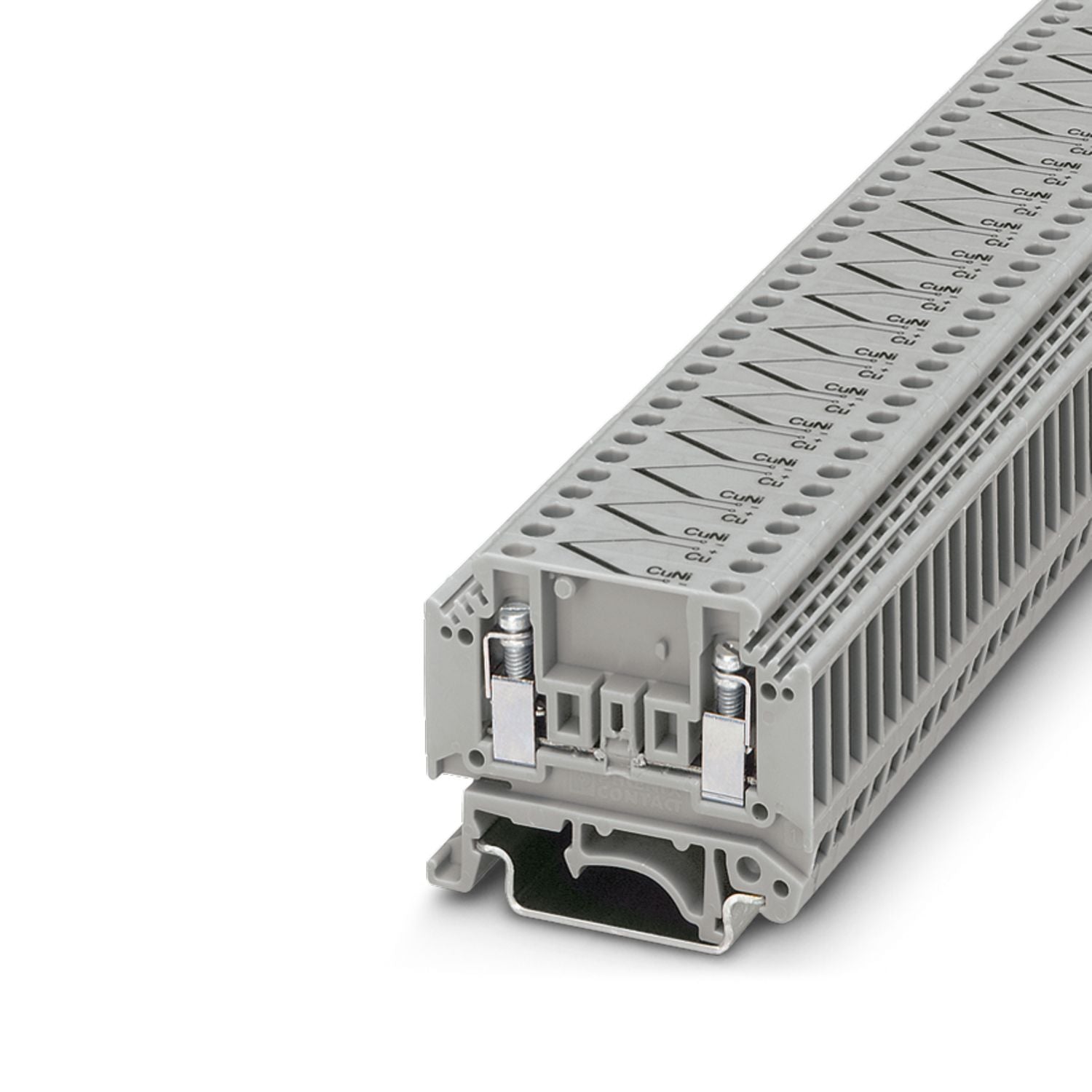

Phoenix Thermoelectric Voltage Terminal Block Pair, TC Type B, Nominal Voltage: 400 V, Nominal Current: 1 A, Number of Connections: 4, Number of Positions: 2, Connection Method: Screw Connection, Cross Section: 0.2 MILLIMETER2 - 4 MILLIMETER2, Mounting Type: NS 35/7,5, NS 35/15, NS 32, Color: Gray

$23.28

Shipping calculated at checkout.

Available to order

Lead time: 10 days

FREE SHIPPING

Description

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Product category	Enclosures, Panels & Fabrication
Product subcategory	Terminal Blocks & Accessories
Series	Phoenix
Short desc	Phoenix Thermoelectric Voltage Terminal Block Pair, TC Type B, Nominal Voltage: 400 V, Nominal Current: 1 A, Number of Connections: 4, Number of Positions: 2, Connection Method: Screw Connection, Cross Section: 0.2 MILLIMETER2 - 4 MILLIMETER2, Mounting Type: NS 35/7,5, NS 35/15, NS 32, Color: Gray
Supplier part number	3100101

Features and Benefits

The Equalizing Conductors are Made From Materials Which, Up to Temperatures of 200 deg C, Have the Same Thermal Characteristics As the Corresponding Thermocouples | This Ensures that No False Thermoelectric Voltages Occur At the Junctions of the Thermocouple/Terminal Block/Compensating Line and that the Basic Values in Accordance with EN 60584/DIN EN 60584 are Observed | These Special Terminal Blocks are Used to Extend Thermocouple Equalizing Conductors in Corresponding Measuring Circuits
