Electrical & Wiring | SKU: 3049039

3049039 | Phoenix Contact | Electrical & Wiring

Name: 3049039
Brand: Phoenix Contact
SKU: PHX-3049039
Price: 11.35 USD
Availability: InStock

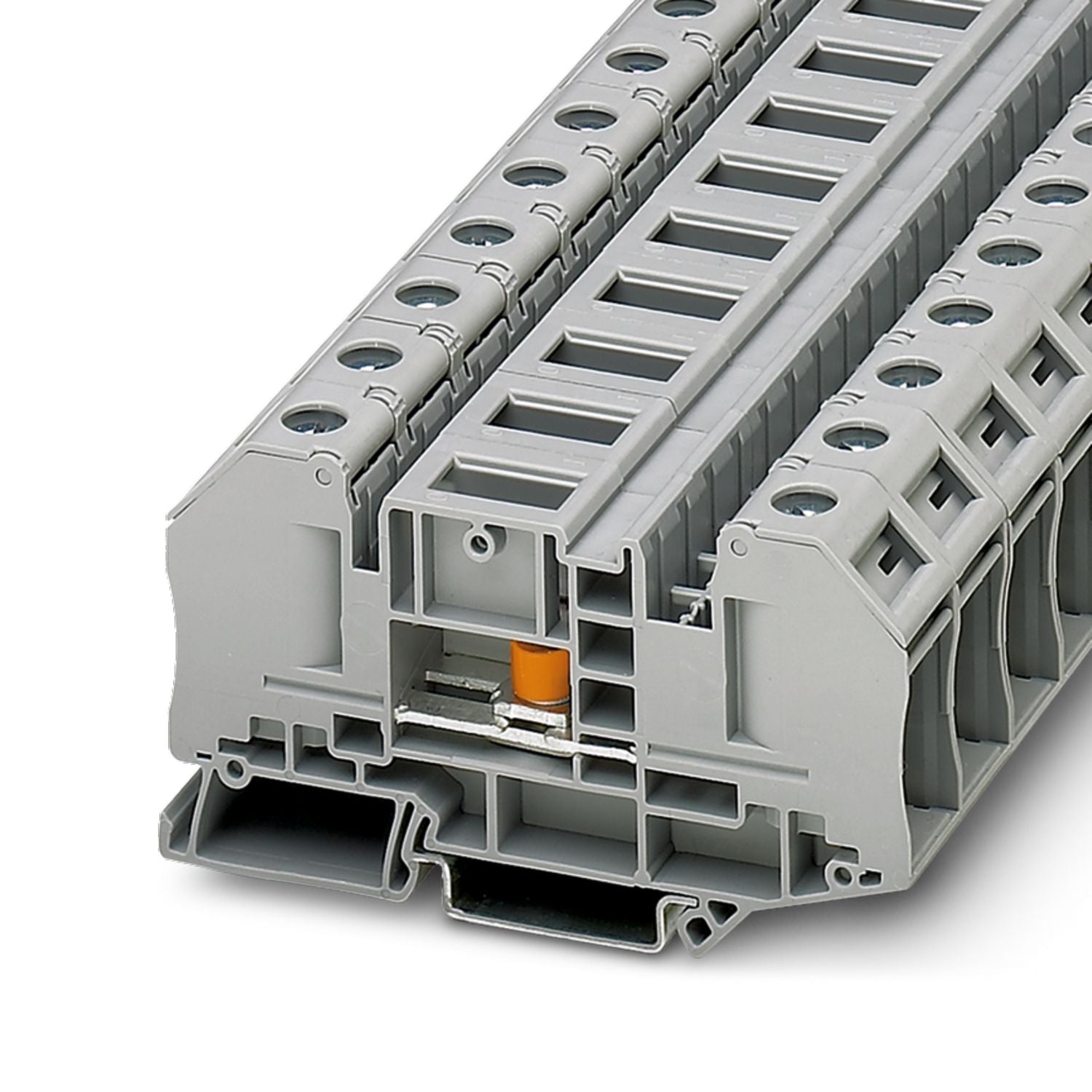

Phoenix Test Disconnect Terminal Block, Note: the BE-RT.. Path Extension is to be Used for Non-insulated Cable Lugs (See Accessories)., Nominal Voltage: 1000 V, Nominal Current: 41 A, 1 Level, Connection Method: Bolt Connection, Rated Cross Section: 6 MILLIMETER2, Mounting: NS 35/7,5, NS 35/15, Color: Gray

$11.35

Shipping calculated at checkout.

Available to order

Lead time: 10 days

FREE SHIPPING

Description

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Product category	Electrical & Wiring
Product subcategory	Wire & Cables
Series	Phoenix
Short desc	Phoenix Test Disconnect Terminal Block, Note: the BE-RT.. Path Extension is to be Used for Non-insulated Cable Lugs (See Accessories)., Nominal Voltage: 1000 V, Nominal Current: 41 A, 1 Level, Connection Method: Bolt Connection, Rated Cross Section: 6 MILLIMETER2, Mounting: NS 35/7,5, NS 35/15, Color: Gray
Supplier part number	3049039

Features and Benefits

The Use of the Switching Lock Effectively Prevents Unintentional Switching | The Screws are Secured Against Loosening by Captive Spring-Loaded Spacers | Easy Bridging and Potential Distribution Using the Patented Plug-in Bridges from the Clipline Complete System | Quick and Easy Connection with Fold-Up Hinged Covers Which Hold the Clamping Nuts Captive. With the Covers Folded Open, the Bolt is Free to Accept the Cable Lugs | Large-Surface Labeling Options in the Terminal Center and Above the Terminal Points | After Closing and Engaging the Covers, the Clamping Nut Automatically Aligns with the Threaded Bolt and Can be Tightened Easily | Testing with the Standardized Test Adapters and Test Plugs of the Clipline Complete System | The Hinged Cover the Live Metal Parts Including the Insulated Cable Lugs in the Clamping Area So That They are Touch Proof | The Special Clamping Nuts Can be Actuated with a Normal Screwdriver
