Enclosures, Panels & Fabrication | SKU: 3040067

3040067 | Phoenix Contact | Enclosures, Panels & Fabrication

Name: 3040067
Brand: Phoenix Contact
SKU: PHX-3040067
Price: 20.30 USD
Availability: InStock

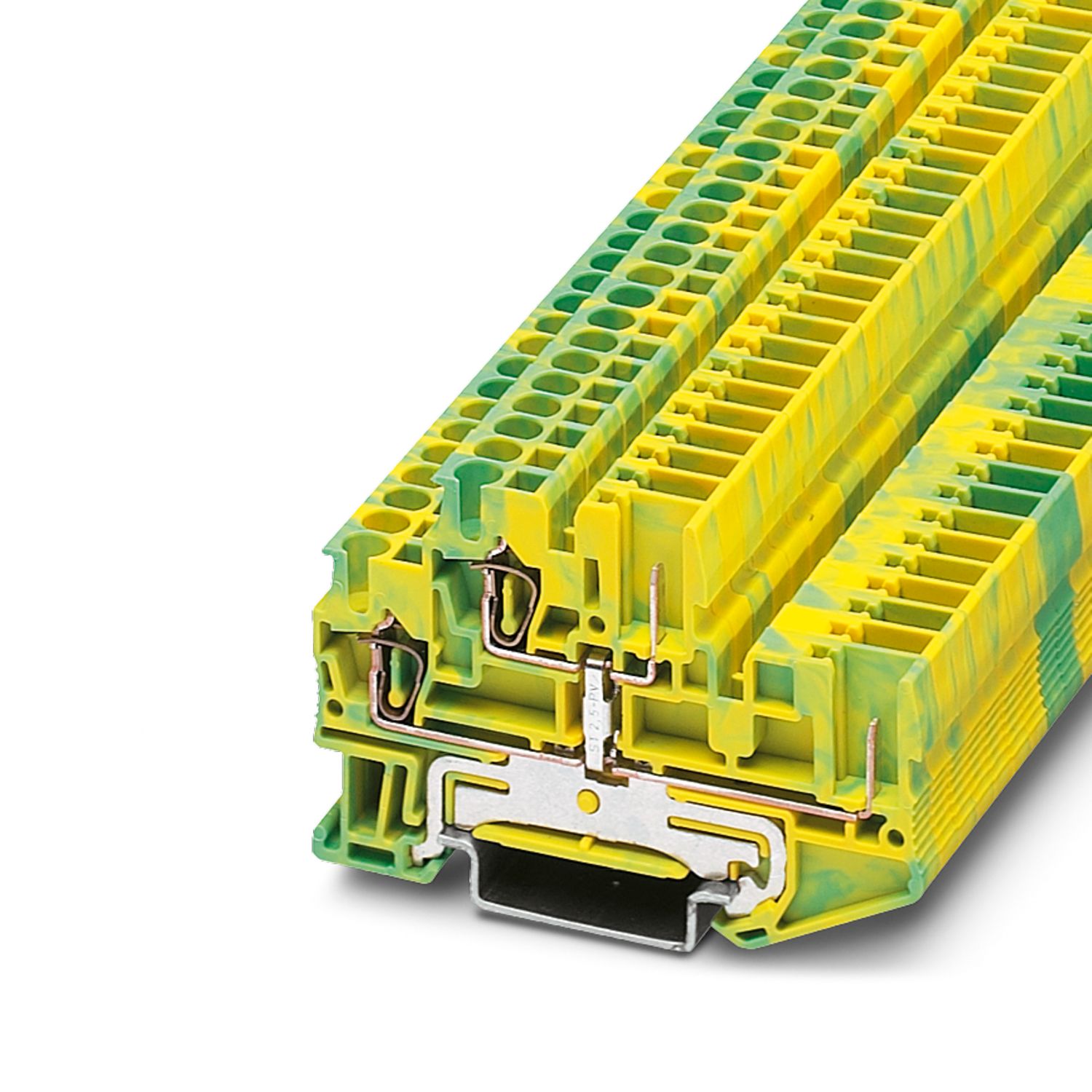

Phoenix Protective Conductor Double-Level Terminal Block, Nominal Voltage: 500 V, Nominal Current: 22 A, Connection Method: Spring-Cage/Plug-in Connection, 1ST and 2ND Level Connection Left, Rated Cross Section: 2.5 MILLIMETER2, Cross Section: 0.08 MILLIMETER2 - 4 MILLIMETER2, Mounting Type: NS 35/15, NS 35/7,5, Color: Green, Yellow

$20.30

Shipping calculated at checkout.

Available to order

Lead time: 15+ days

FREE SHIPPING

Description

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Product category	Enclosures, Panels & Fabrication
Product subcategory	Terminal Blocks & Accessories
Series	Phoenix
Short desc	Phoenix Protective Conductor Double-Level Terminal Block, Nominal Voltage: 500 V, Nominal Current: 22 A, Connection Method: Spring-Cage/Plug-in Connection, 1ST and 2ND Level Connection Left, Rated Cross Section: 2.5 MILLIMETER2, Cross Section: 0.08 MILLIMETER2 - 4 MILLIMETER2, Mounting Type: NS 35/15, NS 35/7,5, Color: Green, Yellow
Supplier part number	3040067

Features and Benefits

Potential Routing on Two Levels | Tested for Railway Applications | The PE/L and PE/N Types Feature A Protective Conductor Contact with the DIN Rail in the Lower Level, While the Upper Level is Designed as a Feed-Through Level | These Mixed Versions Combine the Advantages of Double-Level Feed-Through Terminal Blocks and Ground Terminal Blocks of the Same Shape
