Enclosures, Panels & Fabrication | SKU: 3033184

3033184 | Phoenix Contact | Enclosures, Panels & Fabrication

Name: 3033184
Brand: Phoenix Contact
SKU: PHX-3033184
Price: 13.15 USD
Availability: InStock

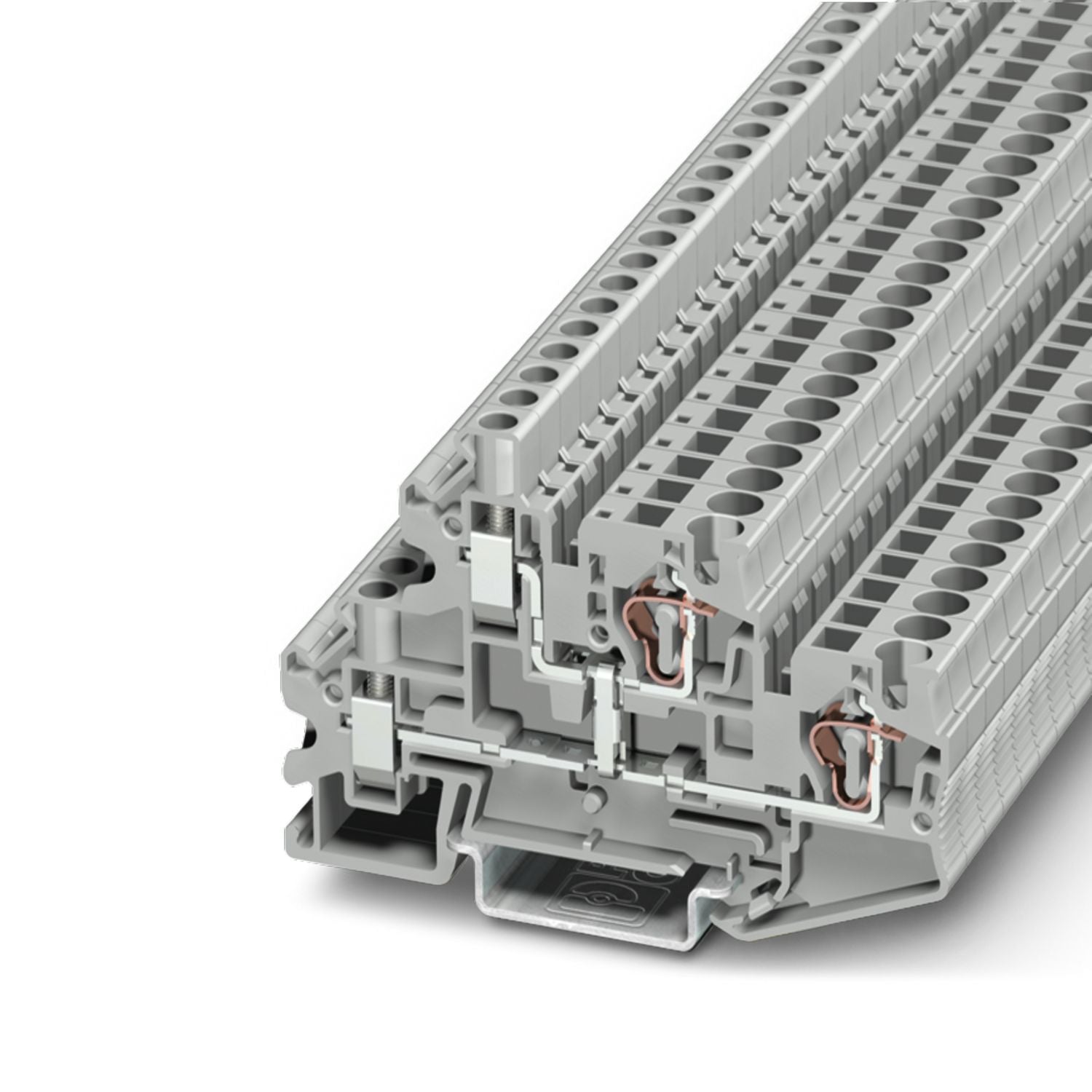

Phoenix Double-Level Terminal Block, with Equipotential Bonder, Nominal Voltage: 500 V, Nominal Current: 30 A, Number of Connections: 4, Connection Method: Spring-Cage Connection, Rated Cross Section: 4 MILLIMETER2, Cross Section: 0.08 MILLIMETER2 - 6 MILLIMETER2, Screw Connection, Rated Cross Section: 4 MILLIMETER2, Cross Section: 0.14 MILLIMETER2 - 6 MILLIMETER2, Mounting Type: NS 35/7,5, NS 35/15, Color: Gray

This product is no longer available

Description

Product Specifications

Name	Value
Category	Phoenix Contact
Country of origin	US
Data Sheet	Download
Product category	Enclosures, Panels & Fabrication
Product subcategory	Terminal Blocks & Accessories
Series	Phoenix
Short desc	Phoenix Double-Level Terminal Block, with Equipotential Bonder, Nominal Voltage: 500 V, Nominal Current: 30 A, Number of Connections: 4, Connection Method: Spring-Cage Connection, Rated Cross Section: 4 MILLIMETER2, Cross Section: 0.08 MILLIMETER2 - 6 MILLIMETER2, Screw Connection, Rated Cross Section: 4 MILLIMETER2, Cross Section: 0.14 MILLIMETER2 - 6 MILLIMETER2, Mounting Type: NS 35/7,5, NS 35/15, Color: Gray
Supplier part number	3033184
Variant weight	0

Features and Benefits

{'Features_and_Benefits_1': 'Can be Consistently Bridged to the STTB 4 Standard Double-Level Terminal Blocks', 'Features_and_Benefits_2': 'Can be Bridged in Both Levels to Implement Different Switching Tasks', 'Features_and_Benefits_3': 'For a Clear Overview, Each Terminal Point Can be Labeled'}
