Circuit Protection | SKU: 2907200

2907200 | Phoenix Contact | Electrical & Wiring

Name: 2907200
Brand: Phoenix Contact
SKU: PHX-2907200
Price: 338.35 USD
Availability: InStock

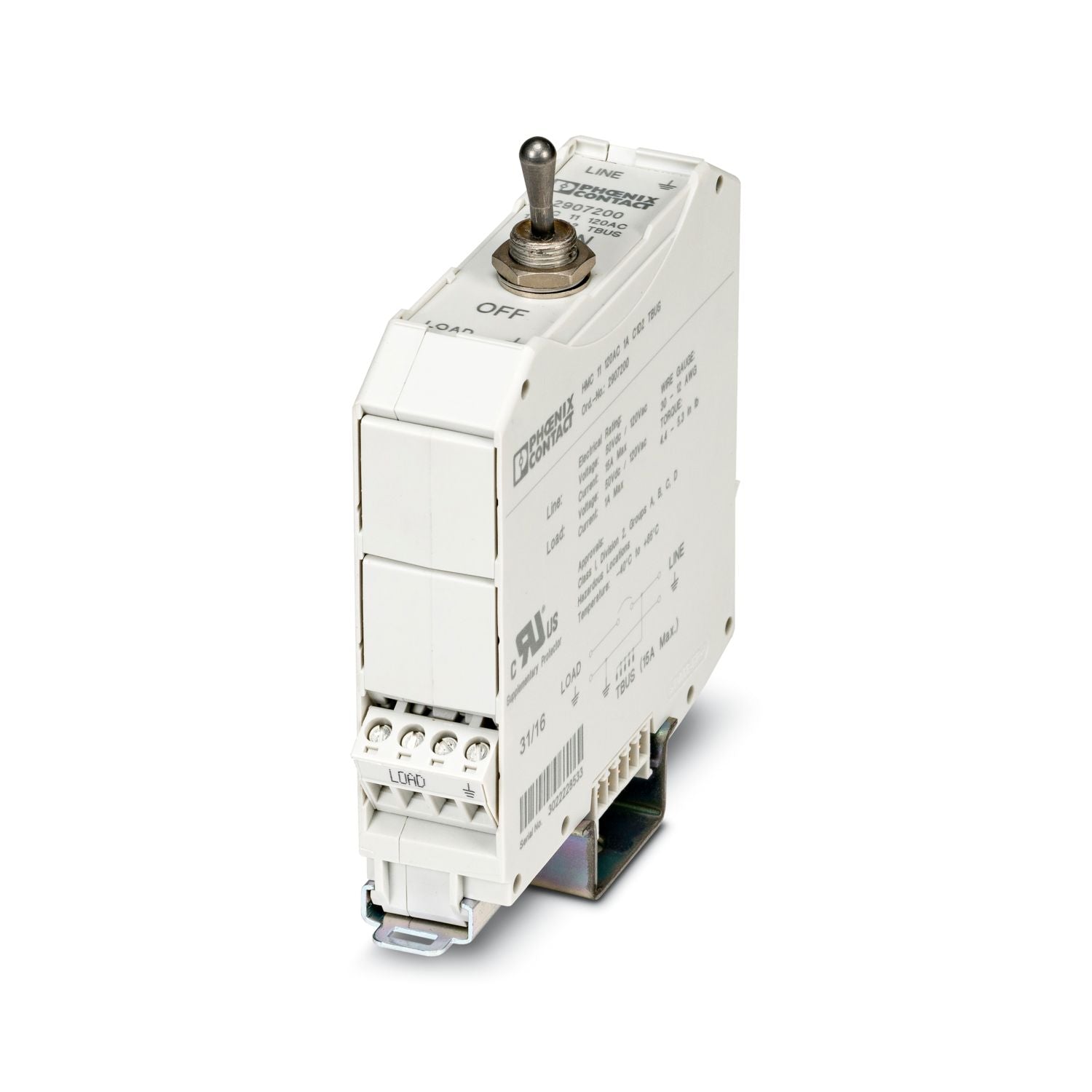

HMC Series, Hydraulic-Magnetic Circuit Breaker, T-Bus Version, 1 Amp Rating

$338.35

Shipping calculated at checkout.

Available to order

Lead time: 10 days

FREE SHIPPING

Description

The HMC series is Phoenix Contact’s first family of 120 V AC hydraulic-magnetic circuit breakers for use in Class I, Division 2 applications. The UL-approved products utilize a fully sealed, hydraulicmagnetic design that allows for accurate power switching and reliable overcurrent protection. Each breaker is rated for 50 V DC. Breakers up to 15 A are also dual rated at 120 V AC. They have short-circuit current rating (SCCR) of 1 kA and a temperature operating range of -40 C to 65 C.

Product Specifications

Name	Value
Current rating	1 A
Data Sheet	Download
Mounting type	DIN Rail
Number of poles	4-Position
Product category	Electrical & Wiring
Product subcategory	Circuit Protection
Series	HMC Series
Short desc	HMC Series, Hydraulic-Magnetic Circuit Breaker, T-Bus Version, 1 Amp Rating
Supplier part number	2907200
Type	Hydraulic-Magnetic Circuit Breaker
Voltage	120 VAC/50 VDC

Features and Benefits

{'Features_and_Benefits_1': 'Hydraulic-Magnetic Technology Provides Extended Temperature Stability', 'Features_and_Benefits_2': 'UL Recognized for Hazardous Locations Class I, Division 2, Groups A, B, C, and D', 'Features_and_Benefits_3': 'T-Bus Version for Reduced Wiring'}
