Enclosures, Panels & Fabrication | SKU: 2717113

2717113 | Phoenix Contact | Enclosures, Panels & Fabrication

Name: 2717113
Brand: Phoenix Contact
SKU: PHX-2717113
Price: 20.30 USD
Availability: InStock

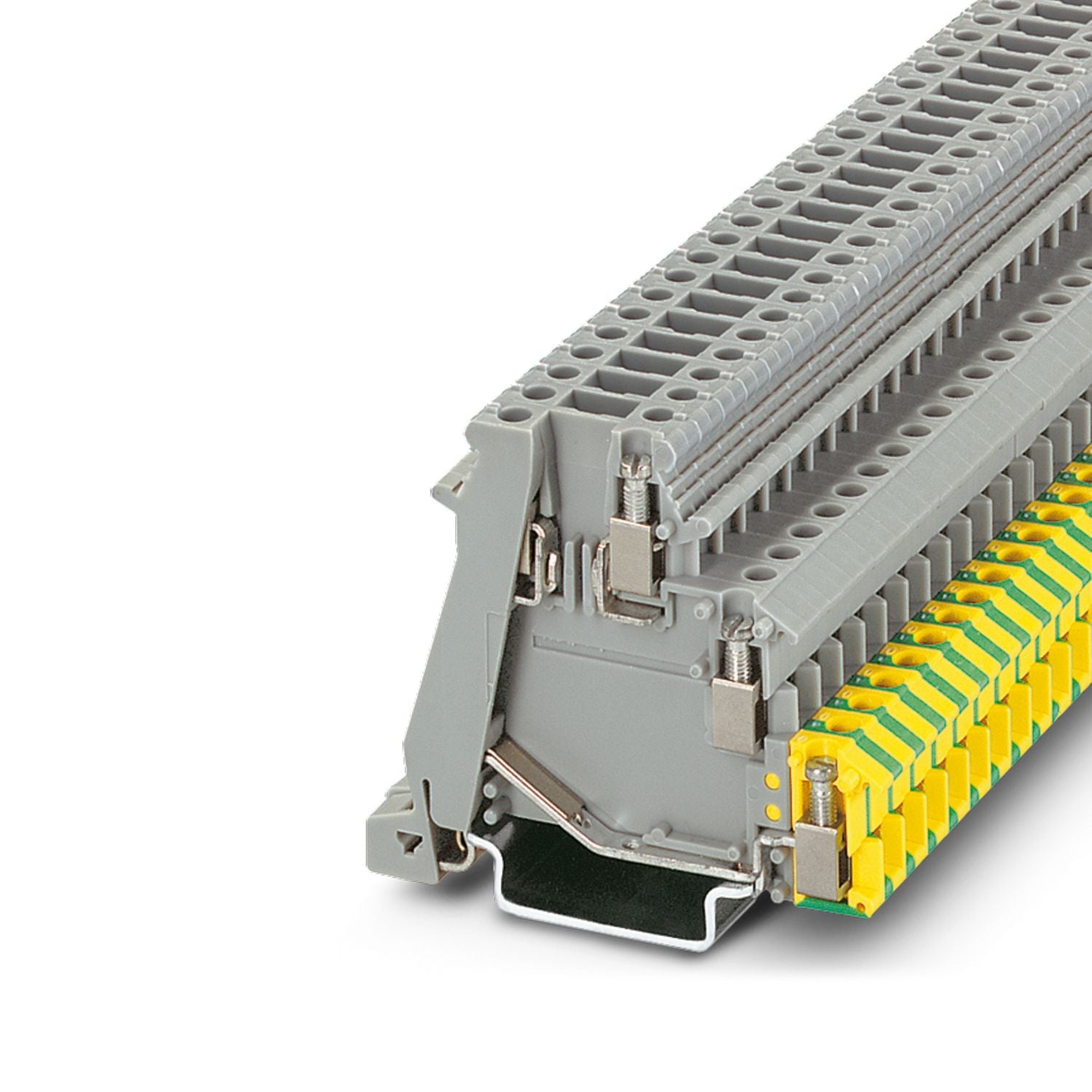

Phoenix Sensor/Actuator Terminal Block, Current and Voltage are Determined by the Plug Used., Nominal Voltage: 250 V, Nominal Current: 16 A, Connection Method: Screw Connection, Rated Cross Section: 1.5 MILLIMETER2, Cross Section: 0.2 MILLIMETER2 - 4 MILLIMETER2, Mounting Type: NS 35/7,5, NS 35/15, Color: Gray

$20.30

Shipping calculated at checkout.

Available to order

Lead time: 15+ days

FREE SHIPPING

Description

Product Specifications

Name	Value
Country of origin	US
Data Sheet	Download
Product category	Enclosures, Panels & Fabrication
Product subcategory	Terminal Blocks & Accessories
Series	Phoenix
Short desc	Phoenix Sensor/Actuator Terminal Block, Current and Voltage are Determined by the Plug Used., Nominal Voltage: 250 V, Nominal Current: 16 A, Connection Method: Screw Connection, Rated Cross Section: 1.5 MILLIMETER2, Cross Section: 0.2 MILLIMETER2 - 4 MILLIMETER2, Mounting Type: NS 35/7,5, NS 35/15, Color: Gray
Supplier part number	2717113

Features and Benefits

The Middle Level Supplies the Connected Actuators with Power | The Upper Level Contains the Feed-Through Connections for the Signal Cable Which Can be Labeled | Alternate Wiring of an Actuator Followed by an Initiator is Easy | The Forks of the Insertion Bridge Can be Easily Loosened for Bridging Between Non-Adjacent Terminal Blocks | Because the Spine of the Insertion Bridge Can be Snapped Into Place with the Terminal Block Housing, All the Terminal Points Can be Wired Freely and the Bridge Can be Securely Positioned | Terminal Blocks with Red and Green LEDs are Available for Optical Signaling of the Initiator and Actuator Wiring | Unlike the DIK Terminal Blocks, the Lower Level of These Output Terminal Blocks Makes Direct Contact with the DIN Rail and As A PE Connection are Marked Yellow-Green | Same Shape as DIK Three-Level Initiator Terminal Blocks
