Connectors | SKU: 1425635

1425635 | Phoenix Contact | Electrical & Wiring

Name: 1425635
Brand: Phoenix Contact
SKU: PHX-1425635
Price: 43.15 USD
Availability: InStock

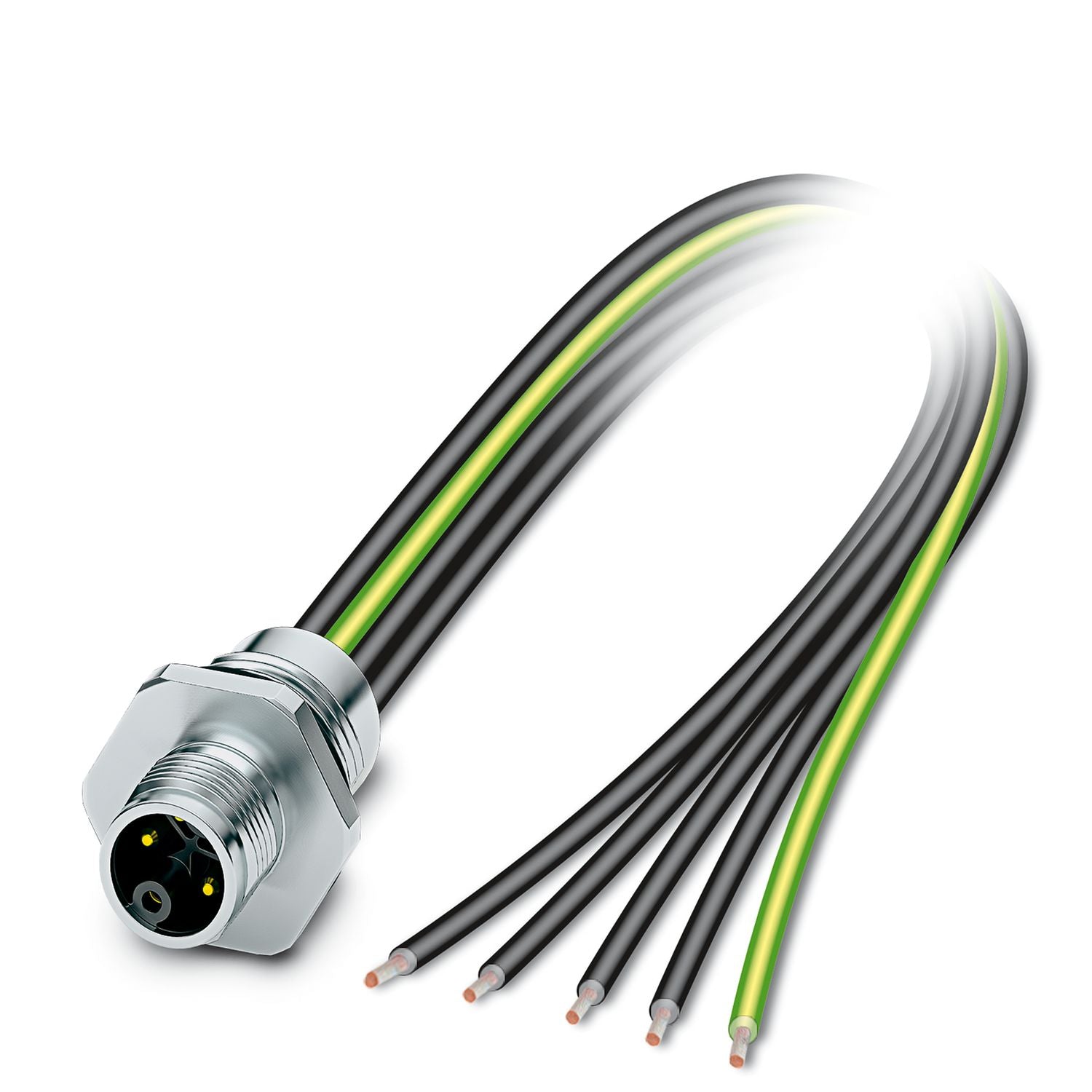

Device Connector Front Mounting, Power, 5-Position, Pin, Straight, M12-Standard, Coding: K, on Free Cable End, Front Mounting, Square Flange, Individual Wires, Cable Length: 0.2 Meter, 1.31mm2, UL/cUL Stranded Hook-Up Wire, Alternative Product in Accordance with RoHS II without Exemption 6c (Pb <0.1 Percentage) Item No.: 1239549

$43.15

Shipping calculated at checkout.

Available to order

Lead time: 10 days

FREE SHIPPING

Description

Product Specifications

Name	Value
Connection size	M12
Country of origin	US
Data Sheet	Download
Number of positions	5 Postion
Product category	Electrical & Wiring
Product subcategory	Connectors
Series	Phoenix Contact
Short desc	Device Connector Front Mounting, Power, 5-Position, Pin, Straight, M12-Standard, Coding: K, on Free Cable End, Front Mounting, Square Flange, Individual Wires, Cable Length: 0.2 Meter, 1.31mm2, UL/cUL Stranded Hook-Up Wire, Alternative Product in Accordance with RoHS II without Exemption 6c (Pb <0.1 Percentage) Item No.: 1239549
Supplier part number	1425635

Features and Benefits

For High Transmission Safety: Shield Connection to the Housing with Optional EMC Nut | Sealed on the Litz Wire Side for Optimum Leak-Tightness | For Compact Devices: Transmit High Power in a Confined Space | Mechanical Tightening Limitation for Long-Term-Stable Gasket | Preassembled with Litz Wires for Immediate Use | Easy-to-Install, Optimized XL Housing Contour with Wrench Size 19 | Customer-Specific Assemblies and Litz Wire Lengths Available
