Name: JENE-EG534-WL-M4-100
Brand: Lynxspring
SKU: LYX-JENEEG534WLM4100
Price: 2282.05 USD
Availability: InStock

JENEsys Edge 534 Controller (100 Point and 5 device Limit & Monnit Gateway Function) N4 Alta 433 MHz Frequency

$2,282.05 $5,248.76

Shipping calculated at checkout.

Available to order

Lead time: 8 days

FREE SHIPPING

Description

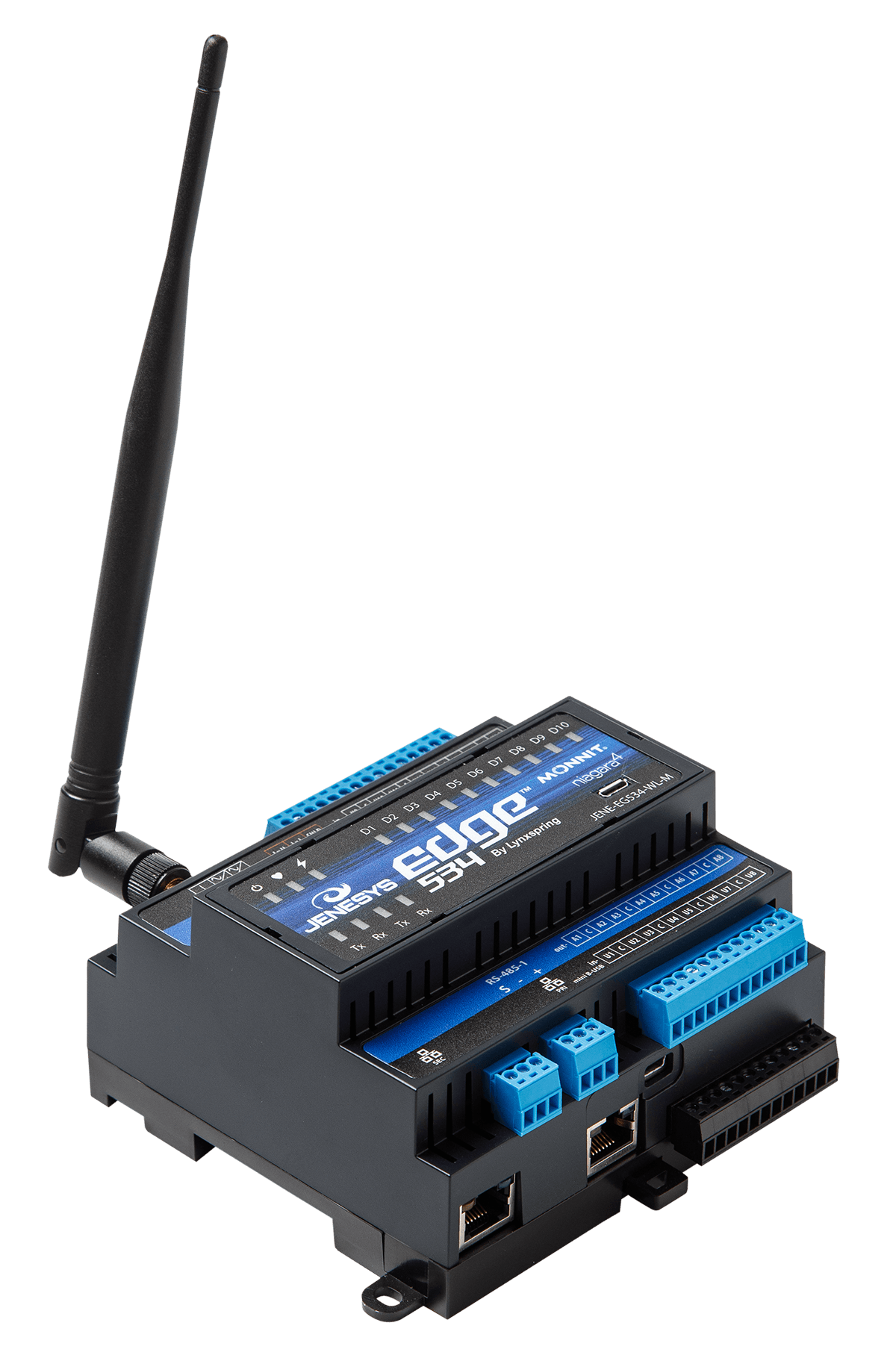

The JENE-EG534-WL-M4-100 is a Lynxspring JENEsys Edge 534 with Monnit, a fully programmable Niagara 4 controller with 34 on-board I/O points (16 universal inputs, 10 digital outputs and 8 analog outputs). It adds an onboard Monnit gateway for up to 100 ALTA wireless sensors on 433 MHz. It is programmed with the same Niagara 4 tools used for other Niagara controllers, Workbench or ProBuilder, and communicates over the Fox protocol.

The controller has 512 MB RAM, 4 GB flash, two 10/100 Ethernet ports, one RS-485 port and runs on 24 VAC/VDC. Standard drivers include Niagara Network (Fox), BACnet, Modbus, Web and oBIX. Up to 8 Onyxx XM34IO extender modules can be added for a maximum of 306 I/O points.

It includes a Niagara 4 license for 100 points and 5 devices.

Product Specifications

Name	Value
Data Sheet	Download
Product category	BAS Controllers
Product subcategory	Programmable Controllers
Series	Lynxspring
Short desc	JENEsys Edge 534 Controller (100 Point and 5 device Limit & Monnit Gateway Function) N4 Alta 433 MHz Frequency
Supplier part number	JENE-EG534-WL-M4-100

Features and Benefits

{'Features_and_Benefits_1': 'Niagara 4 programmable controller with 34 on-board I/O', 'Features_and_Benefits_2': '16 universal inputs, 10 digital outputs and 8 analog outputs', 'Features_and_Benefits_3': 'Licensed for 100 points and 5 devices', 'Features_and_Benefits_4': 'Onboard Monnit gateway for up to 100 ALTA sensors (433 MHz)', 'Features_and_Benefits_5': 'Standard drivers: Fox, BACnet, Modbus, Web and oBIX', 'Features_and_Benefits_6': 'Expands to 306 I/O with Onyxx XM34IO modules'}
