KMC Controls | SKU: STE-1401

STE-1401 | KMC Controls | DUCT TEMP SENSOR

Name: STE-1401 | KMC Controls | DUCT TEMP SENSOR
Brand: KMC Controls
SKU: KMC-STE1401
Price: 35.16 USD
Availability: InStock

KMC Controls, Duct Temperature Sensor, 10 kOhm Type III, 8-Inch Probe, No Enclosure, STE-1401

$35.16 $53.43

Shipping calculated at checkout.

Out of stock

Usually ships next day

Calculated at checkout

Description

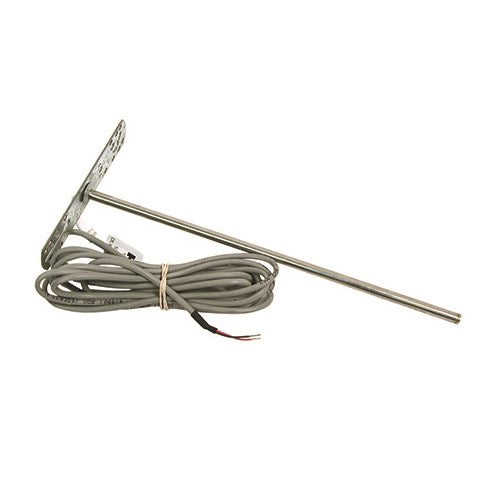

The KMC STE-1400 Series, Type III, 10000 Ohm Thermistor Temperature Sensors are Available in Different Housings for Surface, Duct, Duct Averaging, Immersion, Strap-on, and Outside Air Applications. All Probes are Constructed to Provide Good Heat Transfer and Fast Response. Each STE-1401 Duct Sensor is Encapsulated in a 1/4-Inch O.D. Stainless-Steel Probe. The Probe can be Inserted Directly into the Duct for Single-Point Monitoring, and a Mounting Bracket is Provided to Rigidly Support the Assembly. A 10-Foot. FT-6 Plenum-Rated, 22 AWG Cable is Included.

Product Specifications

Name	Value
Application	Duct Sensor
Cable length	10 Foot Plenum Cable
Category	Duct and Immersion
Connection type	10-Foot. FT-6 Plenum-Rated, 22 AWG Cable
Description	The KMC STE-1400 Series, Type III, 10000 Ohm Thermistor Temperature Sensors are Available in Different Housings for Surface, Duct, Duct Averaging, Immersion, Strap-on, and Outside Air Applications. All Probes are Constructed to Provide Good Heat Transfer and Fast Response. Each STE-1401 Duct Sensor is Encapsulated in a 1/4-Inch O.D. Stainless-Steel Probe. The Probe can be Inserted Directly into the Duct for Single-Point Monitoring, and a Mounting Bracket is Provided to Rigidly Support the Assembly. A 10-Foot. FT-6 Plenum-Rated, 22 AWG Cable is Included.
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Enclosure type	None
Features and benefits	{'Features_and_Benefits_1': '1', 'Features_and_Benefits_2': '1', 'Features_and_Benefits_3': '1', 'Features_and_Benefits_4': '1', 'Features_and_Benefits_5': '1'}
Mounting type	Duct
Output signal	Resistance
P21 delete flag	false
Probe length	8 Inch (200mm)
Product category	Temperature Sensors & Transmitters
Product subcategory	Duct
Restricted class id	NULL
Restricted item	false
Sensor type	10k Ohm Thermistor Type III
Series	KMC Controls
Short desc	KMC Controls, Duct Temperature Sensor, 10 kOhm Type III, 8-Inch Probe, No Enclosure, STE-1401
Sku	KMC-STE1401
Supplier part number	STE-1401
Type	Duct Sensor
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

{'Features_and_Benefits_1': '1', 'Features_and_Benefits_2': '1', 'Features_and_Benefits_3': '1', 'Features_and_Benefits_4': '1', 'Features_and_Benefits_5': '1'}
