KMC Controls | SKU: CSE-1201

CSE-1201 | KMC Controls | Pressure

Name: CSE-1201
Brand: KMC Controls
SKU: KMC-CSE1201
Price: 88.76 USD
Availability: InStock

KMC, Differential Pressure Switch, 0.08 to 1.20 Inch WC (20 to 300 Pa), SPDT

$88.76 $141.66

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

These differential pressure switches are used to remotely sense overpressure, vacuum, and differentials of pressure. Typical applications include sensing fan or blower operation in ducted ventilation systems, sensing pressure drop across filters, and sensing frost build-up on coils. The SPDT switch allows remote status/alarm indication or operation of electrical circuits to other control devices.

Product Specifications

Name	Value
Category	Pressure Switches
Data Sheet	Download
Enclosure nema rating	Resistive: 1.0 Amp at 250 VAC Maximum
Pressure range	0.08 to 1.20 Inch WC (20 to 300 Pa)
Product category	Pressure
Product subcategory	Pressure Switches
Series	KMC
Short desc	KMC, Differential Pressure Switch, 0.08 to 1.20 Inch WC (20 to 300 Pa), SPDT
Supplier part number	CSE-1201
Switch action	SPDT

Features and Benefits

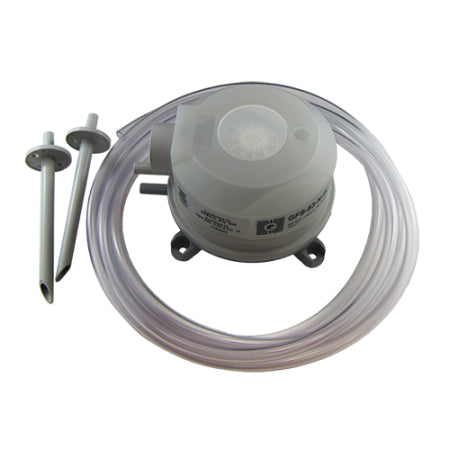

An enclosure cover guards against accidental contact with the live switch terminal screws and the setpoint adjusting dial | The sample connections located on the side accept 6.35 mm (0.25 inches) OD tubing | Includes mounting screws, terminal screw connection adapters, two sensor probes, and PVC tubing—see the Accessories (Included) section | The housing contains a diaphragm, a snap-acting SPDT switch, range adjustment knob with inches water column and Pascals increments
