Control Valves & Actuators  | SKU: VG1875AN

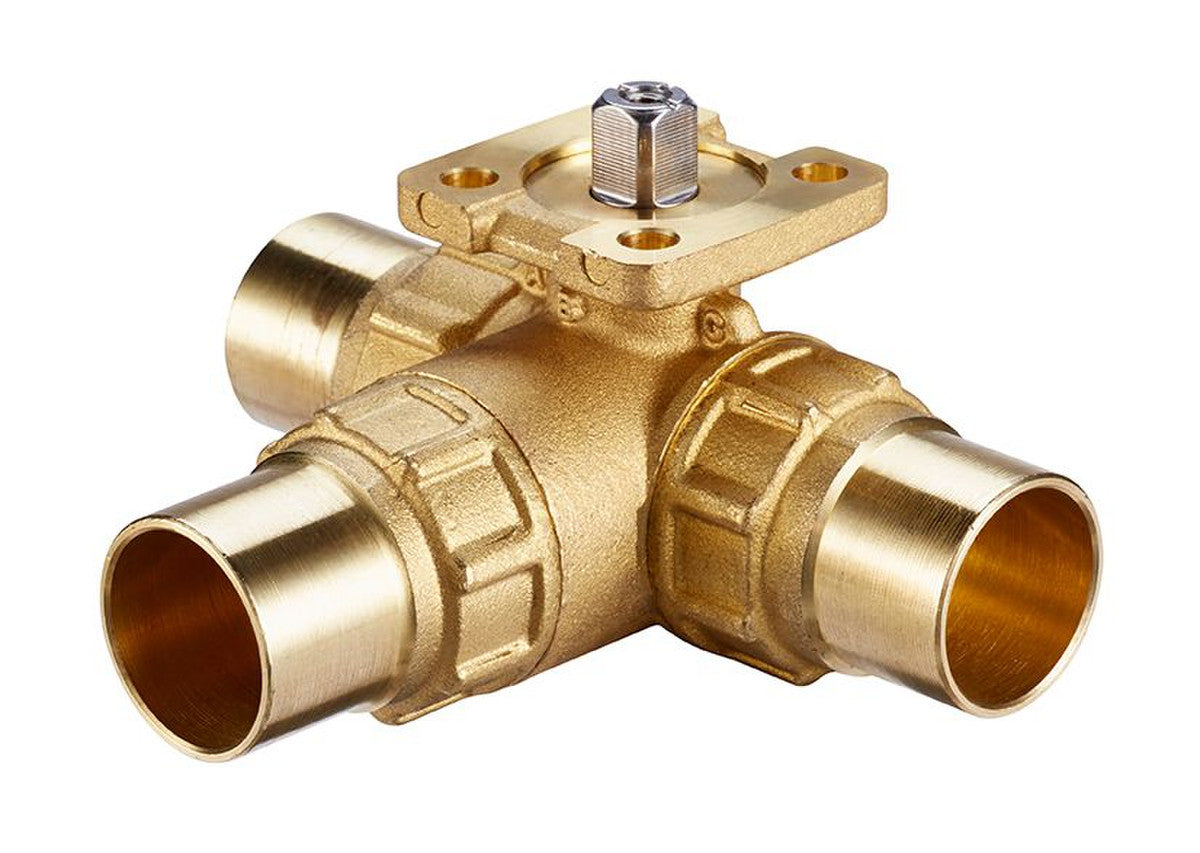

VG1875AN | Johnson Controls | 1/2in THREE-WAY BALL VAL,

Johnson Controls, 1/2in THREE-WAY BALL VAL, VG1875AN
$171.66 $274.67
Shipping calculated at checkout.

VG1875AN | Johnson Controls | 1/2in THREE-WAY BALL VAL, is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock

Usually ships next day

Calculated at checkout
Save Product

Description

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 1 in. (DN15 through DN25), this family of two and three-way forged brass valves is factory or field mounted to Johnson Controls VA9104 Series Non-Spring-Return and VA9203 Series Spring-Return Electric Actuators for on/off, floating, or proportional control. When supplied with an actuator, the actuator is not mounted to the valve to allow access to the end connections.

Product Specifications

Name Value
Category Ball Valves
Close off pressure 200 PSIG
Connection type Sweat Ends
Description VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 1 in. (DN15 through DN25), this family of two and three-way forged brass valves is factory or field mounted to Johnson Controls VA9104 Series Non-Spring-Return and VA9203 Series Spring-Return Electric Actuators for on/off, floating, or proportional control. When supplied with an actuator, the actuator is not mounted to the valve to allow access to the end connections.
Data Sheet Download PDF
Display name 1 Data Sheet
Features and benefits {'Features_and_Benefits_1': 'Forged Brass Body - provides 300 psig static pressure rating.', 'Features_and_Benefits_2': 'Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats - include 15% graphite-reinforced ball seals, providing better wear resistance.', 'Features_and_Benefits_3': '500:1 Rangeability - provides accurate control under all load conditions.', 'Features_and_Benefits_4': 'Maintenance-Free Design - performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water.'}
Flow coefficient 11.7/5.8 Cv
Material Forged Brass
P21 delete flag false
Pattern 3 Way
Product category Control Valves & Actuators
Product subcategory Ball Valves
Restricted class id NULL
Restricted item false
Series Johnson Controls
Short desc Johnson Controls, 1/2in THREE-WAY BALL VAL, VG1875AN
Size 1/2 Inch
Sku JCI-VG1875AN
Supplier part number VG1875AN
Ultra store sync us Yes
Valve trim Stainless Steel Ball and Stem
Valve type Ball Valve
Vendor active Y

Features and Benefits

{'Features_and_Benefits_1': 'Forged Brass Body - provides 300 psig static pressure rating.', 'Features_and_Benefits_2': 'Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats - include 15% graphite-reinforced ball seals, providing better wear resistance.', 'Features_and_Benefits_3': '500:1 Rangeability - provides accurate control under all load conditions.', 'Features_and_Benefits_4': 'Maintenance-Free Design - performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water.'}
