Ball Valves | SKU: VG12A5JU

VG12A5JU | Johnson Controls | Control Valves & Actuators

Name: VG12A5JU
Brand: Johnson Controls
SKU: JCI-VG12A5JU
Price: 1859.97 USD
Availability: InStock

4 Inch 2W Ball Valve 117 CV

$1,859.97 $2,975.95

Shipping calculated at checkout.

Available to order

Lead time: 13 days

FREE SHIPPING

Description

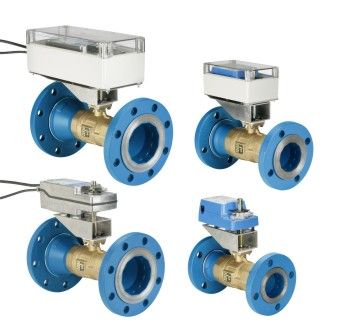

The VG1000 Series Flanged Ball Valves are primarily designed to regulate the flow of hot water, chilled water, and 50/50 glycol solutions to the demand of a controller in HVAC systems. The valves come in sizes of 2-1/2 in., 3 in., 4 in., 5 in., and 6 in. These American Society of Mechanical Engineers (ASME) Class 150 flanged valves come in both two and three-way configurations. Johnson Controls offers valve, linkage, and actuator assemblies for factory or field mounting with either spring return or nonspring return actuators.

Product Specifications

Name	Value
Ansi class	ASME Class 150
Close off pressure	100 PSIG
Connection type	Flanged
Data Sheet	Download
Flow coefficient	117 Cv
Height	0.0
Length	0.0
Material	Forged Brass
Pattern	2 Way
Product category	Control Valves & Actuators
Product subcategory	Ball Valves
Series	Johnson Controls
Short desc	4 Inch 2W Ball Valve 117 CV
Size	4 in
Supplier part number	VG12A5JU
Valve pattern	Two-Way
Valve trim	Stainless Steel Ball and Stem
Valve type	Ball
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Closeoff pressure rating: 100 psi for two-way valves; 50 psi for three-way valves provides tight shutoff.', 'Features_and_Benefits_2': '300 stainless steel ball and stem assembly - applies to systems with high-temperature water (0Â°F to 284Â°F [-18Â°C to 140Â°C]) or 25 psi saturated steam.', 'Features_and_Benefits_3': '500:1 rangeability provides accurate control under all load conditions', 'Features_and_Benefits_4': 'AmodelÂ® flow characterizing disk provides equal percentage flow characteristics for best temperature control; available in a wide array of Cv ranges to cover a broad variety of applications.', 'Features_and_Benefits_5': 'Graphite-reinforced Polytetrafluoroethylene (PTFE) seats include 15% graphite-reinforced ball seals that last twice as long in iron-oxide contaminated water when compared to virgin TeflonÂ® ball seats.'}
