Ball Valves  | SKU: VG12A5HV

VG12A5HV | Johnson Controls | Control Valves & Actuators

3 Inch 2W Ball Valve 176 CV
$1,181.97 $1,891.15
Shipping calculated at checkout.

VG12A5HV is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

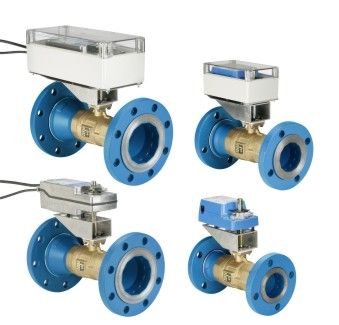

The VG1000 Series Flanged Ball Valves are primarily designed to regulate the flow of hot water, chilled water, and 50/50 glycol solutions to the demand of a controller in HVAC systems. The valves come in sizes of 2-1/2 in., 3 in., 4 in., 5 in., and 6 in. These American Society of Mechanical Engineers (ASME) Class 150 flanged valves come in both two and three-way configurations. Johnson Controls offers valve, linkage, and actuator assemblies for factory or field mounting with either spring return or nonspring return actuators.

Product Specifications

Name Value
Ansi class ASME Class 150
Category Ball Valves
Close off pressure 100 PSIG
Connection type Flanged
Description The VG1000 Series Flanged Ball Valves are primarily designed to regulate the flow of hot water, chilled water, and 50/50 glycol solutions to the demand of a controller in HVAC systems. The valves come in sizes of 2-1/2 in., 3 in., 4 in., 5 in., and 6 in. These American Society of Mechanical Engineers (ASME) Class 150 flanged valves come in both two and three-way configurations. Johnson Controls offers valve, linkage, and actuator assemblies for factory or field mounting with either spring return or nonspring return actuators.
Data Sheet Download
Display name 1 Data Sheet
Features and benefits {'Features_and_Benefits_1': 'Closeoff pressure rating: 100 psi for two-way valves; 50 psi for three-way valves provides tight shutoff.', 'Features_and_Benefits_2': '300 stainless steel ball and stem assembly - applies to systems with high-temperature water (0°F to 284°F [-18°C to 140°C]) or 25 psi saturated steam.', 'Features_and_Benefits_3': '500:1 rangeability provides accurate control under all load conditions', 'Features_and_Benefits_4': 'Amodel® flow characterizing disk provides equal percentage flow characteristics for best temperature control; available in a wide array of Cv ranges to cover a broad variety of applications.', 'Features_and_Benefits_5': 'Graphite-reinforced Polytetrafluoroethylene (PTFE) seats include 15% graphite-reinforced ball seals that last twice as long in iron-oxide contaminated water when compared to virgin Teflon® ball seats.'}
Flow coefficient 176 Cv
Material Forged Brass
P21 delete flag false
Pattern 2 Way
Product category Control Valves & Actuators
Product subcategory Ball Valves
Restricted class id NULL
Restricted item false
Series Johnson Controls
Short desc 3 Inch 2W Ball Valve 176 CV
Size 3 Inch
Sku JCI-VG12A5HV
Supplier part number VG12A5HV
Ultra store sync us Yes
Valve trim Stainless Steel Ball and Stem
Valve type Ball Valve
Vendor active Y

Features and Benefits

{'Features_and_Benefits_1': 'Closeoff pressure rating: 100 psi for two-way valves; 50 psi for three-way valves provides tight shutoff.', 'Features_and_Benefits_2': '300 stainless steel ball and stem assembly - applies to systems with high-temperature water (0°F to 284°F [-18°C to 140°C]) or 25 psi saturated steam.', 'Features_and_Benefits_3': '500:1 rangeability provides accurate control under all load conditions', 'Features_and_Benefits_4': 'Amodel® flow characterizing disk provides equal percentage flow characteristics for best temperature control; available in a wide array of Cv ranges to cover a broad variety of applications.', 'Features_and_Benefits_5': 'Graphite-reinforced Polytetrafluoroethylene (PTFE) seats include 15% graphite-reinforced ball seals that last twice as long in iron-oxide contaminated water when compared to virgin Teflon® ball seats.'}
